FugiFix® FFZ is a simple and fast setup of the joints when laying decking is possible. In combination with the ferrule TerrassenFix® II TFZ and the FugiFix® FFZ, the hall can contracted in one step and the joint spacing of 6, 8 or 10 mm are set. Thus, the processor can save yourself a lot of work and achieved without additional Aufwändungen a uniform joint.The conical geometry of FugiFix® FFZ in the front area, this can hurt without the deck board can be removed. The wide surface prevents pressing the FugiFix spacers in softwood. Uneven joints lead to an impairment of the entire terrace optics and will not be tolerated by builders.

SIHGA GleitFix is a further development of the SIHGA DielenFix.The successor to the DielenFix is a one-part system, which is fastened to the underside of the floor with three screws. The clip connection between the two glass fiber reinforced plastic plates facilitates the alignment of the fastening. Compared to the DielenFix, the system saves a stainless steel drill screw per attachment. SIHGA GleitFix can be used for nearly all types of wood with a width between 90 and 150 mm.Its height has been raised from 6 to 8 mm, which ensures perfect structural protection for the substructure and guarantees an optimal aerated terrace - a key criterion for the service life of terraces.Also new is a special attachment for the initial and end boards. Now these can also be fixed invisibly: GleitFix AE SIHGA DielenFix quantity calculation:To determine the amount required, we recommend the following auxiliary formula:Total linear meters of the substructure / plank width including gapUsing the example of a terrace with a 15 meter substructure, hallway width 144 mm, 6 mm groove:15 / 0.150  = 100 pieces The use: fastened planks not visible screwed; produced, developed and patented in Austria gives elegant appearance and safety of the screw suitable for almost all types of wood reduces errors on site upon delivery of the material; thereby bringing time savings and reduced storage costs Made of SIHGAMID®, the fiberglass-reinforced plastic from the Space Exploration secured more durable than stainless steel, even when säurehältigen woods; is extremely strong, heat, frost and UV-resistant; no material fatigue Floorboards remain intact at all visible surfaces the woods are screwed from below, which gives longer shelf life and prevents putrefaction and the direct influence of weather like swelling and shrinkage of the wood from operations reduces the crack and fracture behavior of wood in these natural processes Choice of three screw lengths Possible use for all common hallway strengths 19-40 mm variable visible joint 0-15 mm, for each suitable builders Height, material thickness 8 mm for optimum aeration and ensures optimum constructive wood protection at GleitFix® GF CS A4 screws are enclosed time-saving, convenient, accurate and matching SIHGAFIX® prevents rust and rust and stainless steel A4 BohrFix® for saltwater and chlorine environment Included SIHGAFIX® stainless, hardened stainless steel BohrFix® with drill bit and installation instructions no rust, no tearing or rupture of the screws; time-saving, convenient, accurate, all accessories accompanies SIHGA® TIP: MAGBIT® facilitates assembly For optimum adaptation to the type of wood of the boards or on the weathering situation of DielenFix® is produced with different fastening screws:Type GleitFix® GF incl. BohrFix® stainless steelType GleitFix® GF CS incl. BohrFix® stainless steel A4

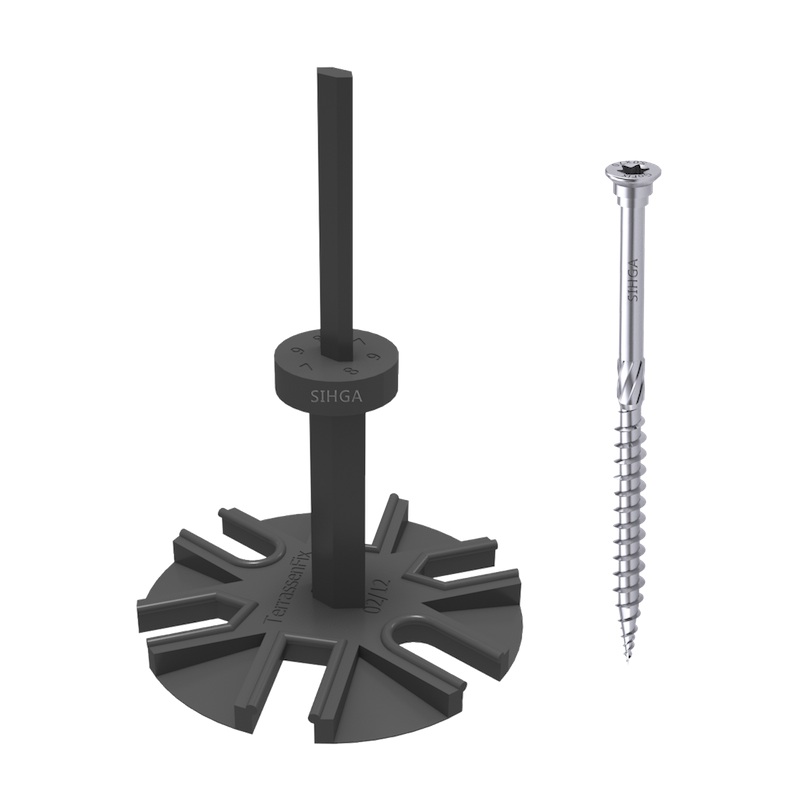

The substantial increase longevity of wooden deckings. Even joints are to be made with the simplest TerrassenFix® II TF.Simultaneously, the 6 mm thick TerrassenFix® II TF ensures optimum constructive wood protection, that is, between decking and substructure is optimally ventilated and prevented waterlogging. Another important advantage is that the screws are not loaded for shearing but to bending through the use of TerrassenFix® II TF.The TerrassenFix® II TFS pin enables the quick adjustment of the joint width during assembly and is then completely removed again - very important so that the decking will not be blocked in their natural swelling and shrinking processes!The TerrassenFix® II TF does not have to be laboriously screwed on the substructure, but is merely placed. The special material increases walking comfort on the terrace!Total offers TerrassenFix® II TF tremendous relief and reduction of working time and a significant extension of the life of terraces.

fastens wood to wood without pre-drilling and without countersinkingreduces crack formation or splitting of the timbers, even board materials, saves work time, additional pre-drilling extends the life of the wood  also attaches coverings made out of hard and thermo-woodcreates a perfect look, with these woods additional pre-drilling is recommended  multi-stage head with small head diameterhigh constructive wood protection and refined surface as a result of the plane head  special thread angle with sharp thread edgeshigh pull-out value  SIHGA® point with special shapeguarantees fast setting of screws without splitting  SIHGA® ribs on shaft and slip coatinglight, fast rotation and optimum fit in the wood are guaranteed  made from hardened stainless steelrust-free fastening, extremely break-proof  also available with black (SC 9 coating) and antique look (SC 11 coating)optimum on dark materials, or can be used for larch, Douglas fir and Bangkirai  including SIHGAFIX® stainless steel, Systemstift® and installation instructionstime-saving, practical, precise, all accessories enclosed; SIHGAFIX® stainless steel prevents rust from external sources and also screws into deep grooves  When using coatings such as oils, glazes and pre-greying, it is essential to consult the coating manufacturer. As a rule, the manufacturer specifies the minimum material quality of the binding agent. If the manufacturer is not known, we recommend material quality A4 (L-BohrFix® MB A4). L-GoFix® MS A2 made from A2 stainless steelstands out thanks to its good corrosion resistance and is best used in moderate, corrosive environments Because of the material properties it is strongly advised to generally pre-drill the add-on part (screw diameter + 0.5 -1 mm). The substructure, due to the different bulk densities and moisture, also in conifers, should in most cases be pre-drilled over the entire thread length with Ø 3 mm. If in doubt, we recommend carrying out pretrials

in the minimontagepack inkl. SIHGAFIX stainless steel TX 20     SIHGA® MEDIATHEK

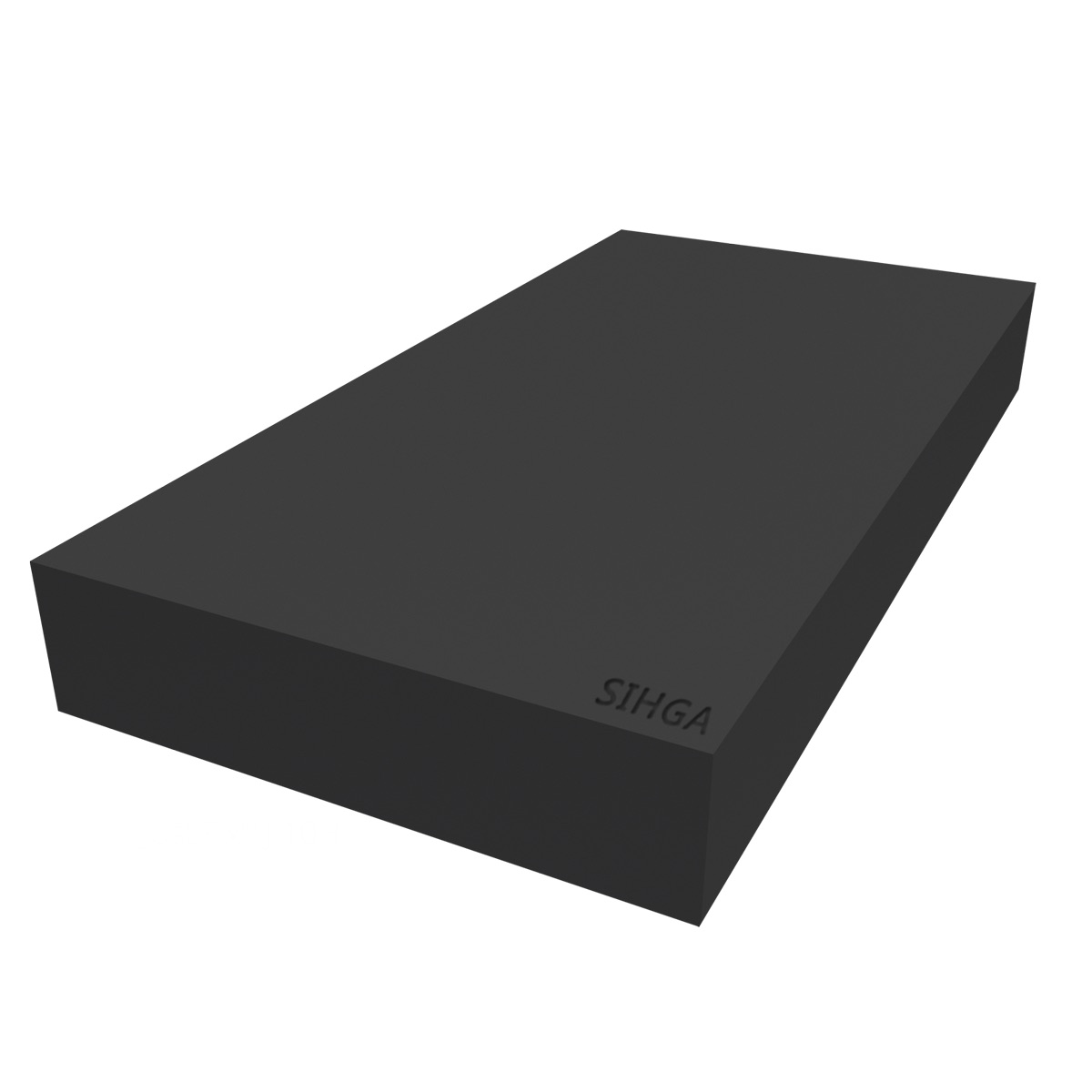

Prevents direct contact of the substructure to the foundation Since the direct contact of the substructure is a terrace with soil or foundation to be avoided, the JustiFix® J provides indispensable support, especially when only low installation heights for the constructive wood protection exist.Using the J JustiFix® the waterlogging is prohibited under the terrace and ensuring good ventilation.By producing high-quality EDPM special rubber of JustiFix® J remains dimensionally stable even when exposed to heat, frost and UV influences! Simultaneously, the walking comfort is increased by the vibration damping effect!For the easy level adjustment between wood substructure and foundation of JustiFix® J is manufactured in three different material thicknesses.JustiFix® J is simply placed under the substructure and is arbitrarily stackable.

SIHGA® TEBIT® rust-free holds the screw without a magnet and prevents extraneous rust     special bit with hold function     the screws remain without holding on and without a magnet on the bit     also enables assembly overhead and difficult to access     saves time and money, especially with small screw dimensionsTEBIT® is included with Tefix®, GleitFix® GF and DielenFix® DF

FOR SIGHT SCREWED MOUNTING The FassadenClip® FCS is the optically perfect solution for fastening wood facades. Facade woods 57-95 mm profile height can thus not be affixed visibly screwed. The special shape of FassadenClip® FCS provides by the distance to the battens for a good rear ventilation of the facade and thus perfect constructive wood protection.By not visible screw the weathered surface of the facade timber remains completely undamaged. The head geometry of the enclosed L BohrFix® FB for attachment to the battens, allows a fixed joint spacing of approximately 8 mm (depending on the angle of Rhombusfräsung) without additional aids, which is especially useful during installation of Rhombusschalungen.Should a lesser joint spacing be desired in FassadenClip® FCS a second screwing position is available that allows any joint spacing.

Ø 215 mm footprint  ONLY TWO MODELS FOR DISTANCES OF 30-500 MMSince the direct contact of the substructure is a terrace with the floor to be avoided, the JustiFix® II JK offers valuable assistance. Using the JustiFix® II JK waterlogging is prohibited under the terrace and ensuring good ventilation.At the same time it saves a lot of work, because the height adjustment can be carried out easily from above by means of rotational movement. Thereby, the fast and accurate mainly level orientation of the substructure is guaranteed.Expansion distance range - a model for heights up to 500 mm: Just the top of the JustiFix® II JK stand out, one or more adapters JA 35 or 70 mm and then attach the upper part again. This process increases the distance range by 35 or 70 mm and can be repeated up to a total height of 500 mm as often. Application for a timber under construction on solid and rough terrain.The recommended load per JustiFix® II JK H is 6.0 kN.The amount needed per m2 depends on the dimension of the substructure. We recommend at wooden decks along the substructure at a distance of 700 mm - which gives an average of about 3.0 per m2.To assemble the JustiFix® II JK H is simply attached to the substructure side.

for all models HobaFix® HFthe professional assembly aid facilitates construction processes and saves working time, milling and assembly jig with all accessories are combined in a practical, complete and mobile way  contains 1 HobaFix® milling assembly jig HFFM, 1 HobaFix® milling cutter with thrust ring HFF together with fastening screws, Allen key and System Pin®for efficient and precise assembly of the node connections

The installation of the SIHGA HobaFix can be carried out both visible (for shadow groove connections) and non-visible (countersunk). When visible installation eliminates the milling and the same doctrine is used as assembly jig.Simply adjust the stop of SIHGA milling and assembly jig to the desired size of SIHGA HobaFix, SIHGA hang up, fix and carry out the coordinated carbide Straight bits the milling the milling and assembly template.

The new Sihga® TeFix® screw can be screwed on cleanly on patios and facades without pre-drilling and countersinking.BENEFITS> fastens wood to wood without pre-drilling and countersinking> prevents cracking or splitting of the woods in almost all hardwoods and thermo-woods> Made from hardened, rustproof stainless steel> fastens rustproof and is extremely unbreakable> SIHGA® friction shaft with a special shape> pre-drill the board with 5 mm; the wood can swell and shrink> SIHGA® multi-stage head further developed> thanks to the extra thin head and sawtooth ribs, no displacement or chipping of the wood> in combination with KompeFix® II KF the perfect solution> increases the lifespan of the wood and the screw> including TEBIT® rustproof with holding function, Systemstift® and assembly instructionstime-saving, practical, precise, all accessories are included; TEBIT® rust-free holds the screw without a magnet and prevents extraneous rust

Simply adjust the stop of SIHGA milling and assembly jig to the desired size of SIHGA HobaFix, SIHGA hang up, fix and carry out the coordinated carbide Straight bits the milling the milling and assembly template.     SIHGA® MEDIATHEK

Ideal for fences and screens. Quick, simple, straightforward and safe installation of fence posts. When mounting fence posts or railings, fitters have to struggle with inclined foundations. In order to position the posts in a straight and aligned manner, compensating plates have so far been used. With the fastener Pfalu, Sihga is now launching a system that does not need any additional plates. A part of the attachment can be already pre-assembled on the end of the posts. The second part is anchored on site in the subsoil of wood or concrete. After assembly of Pfalu, the post can be adjusted up to four degrees in all directions by means of easily accessible adjusting screws. A tensioned tension rod inside ensures the required stability. Pfalu has been tested by Sihga for design loads and is approved for posts from 90 mm diameter.

SIHGA® FULL-BITS: Magnetic bit holder system with self-adhesive Velcro fastener Bit holder consisting of: 1 SIHGAFIX TX 20 stainless steel 2 SIHGAFIX TX 25 stainless steel 1 SIHGAFIX TX 30 stainless steel 1 SIHGAFIX TX 40 incl. positioning tape Installing the SIHGA® Full-Bits system on the screwdriver is as simple as it is effective. The flexible positioning band is attached to the desired position on the screwdriver - provided the surface is clean and dust-free. The bit holder can be bent and positioned exactly as required and has a magnetic insert so that the SIHGAFIX® bits are practically at hand. Ideal for professionals who value quality and time savings.

Fastening system for handrail posts on flat roof waterproofing  > Ideally suited for railings and privacy screens > Infinitely variable and easily accessible inclination adjustment up to 4 ° in all directions > Reinforcement of the pressing surface using GoFix® S + > Valve for leak testing > Can be combined with various seals > Seals are jammed > including SIHGAFIX®, GoFix® S +, as well as all seals Your benefit > quick, easy and safe assembly > offers great stability and flexural strength > The straight and aligned appearance of the posts without time-consuming adjustment > Use on wooden beams and solid wood ceilings, as well as CLT systems > Security of connection and sealing, system can be serviced > attached to PVC, EPDM and even sheet metal > Retrofitting in existing seals is also possible > time-saving, practical, precise, all accessories included Tip: use leak spray and air pump to check for leaks

Even joints are to be made with the simplest TerrassenFix® II TF. Simultaneously, the 6 mm thick TerrassenFix® II TF ensures optimum constructive wood protection, that is, between decking and substructure is optimally ventilated and prevented waterlogging. Another important advantage is that the screws are not loaded for shearing but to bend through the use of TerrassenFix® II TF.The TerrassenFix® II pin TFS enables quick setup of the joint width during assembly and is then completely removed again - very important so that the decking will not be blocked in their natural swelling and shrinking operations!The TerrassenFix® II TF does not have to be laboriously screwed to the substructure, but is merely placed. The special material increases walking comfort on the terrace!Total offers TerrassenFix® II TF huge relief and reduction of working time and a significant extension of the life of terraces.
