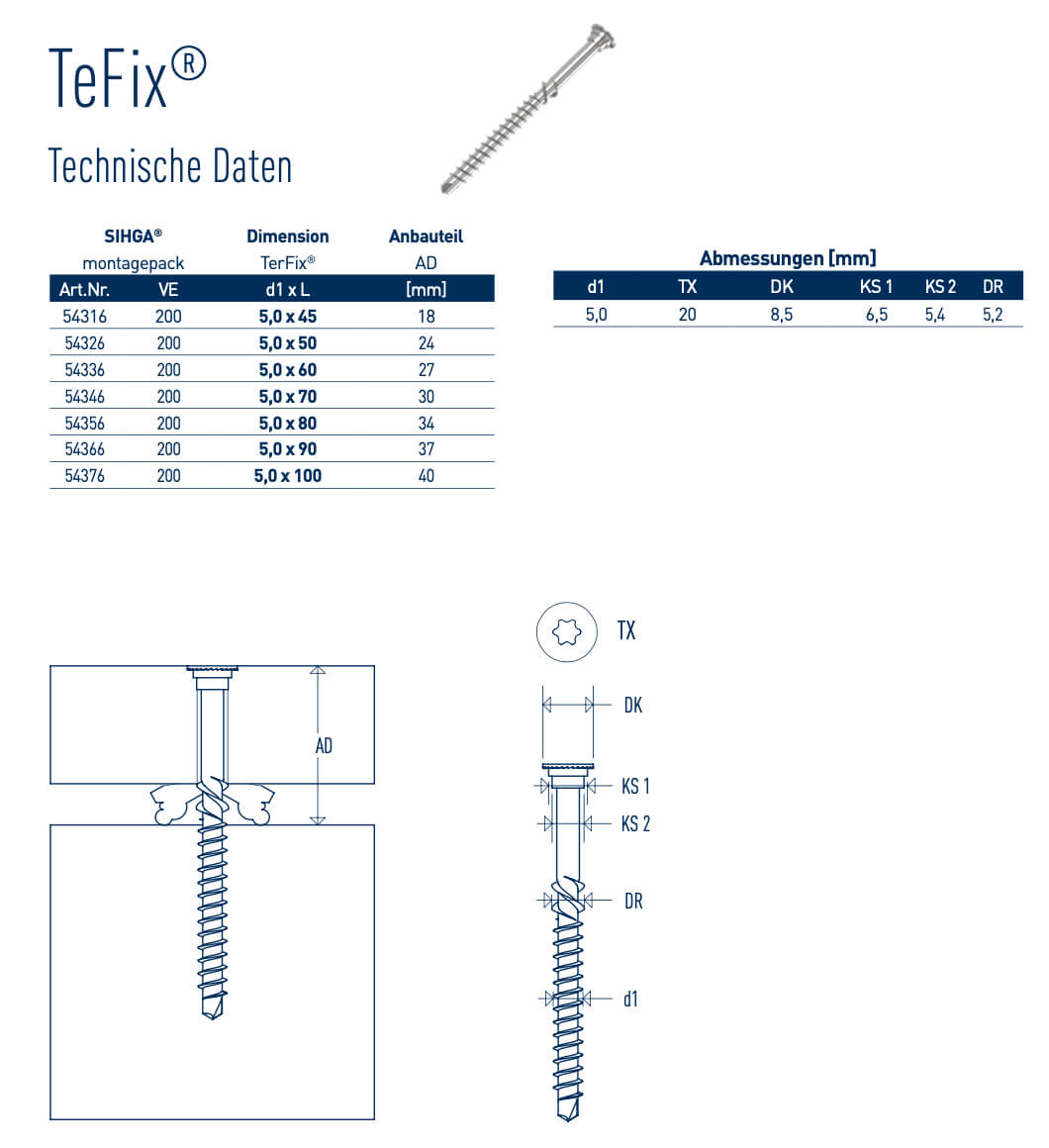

SIHGA® TeFix® black stainless steel screw

The ELITA stainless steel screws are specifically designed to securely mount wood or wood-likeTerrace and facade boards in demanding exterior applications where visual quality is paramount.The geometry of the countersunk screw head has 3 steps which permit a perfect precise flush finish. ELITA can be additionally combined with PROFILA and SOLIDA screws due to the identical diameter of the screw heads allowing a uniform screw head arrangement.Length: 50 - 80 mmDiameter: 4.5 mm, 5.0 mmHead: 3-Step-HeadBit: TXMaterial: Hardened stainless steel

SIHGA® TIPIn case of applications in the pool area with timbers and with a high tannin content, we recommend using L-BohrFix® MB A4. For surface-flush rotation, fast and secure, we recommend TerrassenFix® Depth Limiter TTB. fastens wood to wood without pre-drilling and without countersinkingreduces crack formation or splitting of the timbers, even board materials, saves work time, additional pre-drilling extends the life of the wood also attaches coverings made out of hard and thermo-woodcreates a perfect look, with these woods additional pre-drilling is recommended multi-stage head with small head diameterhigh constructive wood protection and refined surface as a result of the plane head special thread angle with sharp thread edgeshigh pull-out value SIHGA® point with special shapeguarantees fast setting of screws without splitting SIHGA® ribs on shaft and slip coatinglight, fast rotation and optimum fit in the wood are guaranteed made from hardened stainless steelrust-free fastening, extremely break-proof also available with black (SC 9 coating) and antique look (SC 11 coating)optimum on dark materials, or can be used for larch, Douglas fir and Bangkirai including SIHGAFIX® stainless steel, Systemstift® and installation instructionstime-saving, practical, precise, all accessories enclosed; SIHGAFIX® stainless steel prevents rust from external sources and also screws into deep grooves When using coatings such as oils, glazes and pre-greying, it is essential to consult the coating manufacturer. As a rule, the manufacturer specifies the minimum material quality of the binding agent. If the manufacturer is not known, we recommend material quality A4 (L-BohrFix® MB A4).L-GoFix® MS A2 made from A2 stainless steelstands out thanks to its good corrosion resistance and is best used in moderate, corrosive environmentsBecause of the material properties it is strongly advised to generally pre-drill the add-on part (screw diameter + 0.5 -1 mm). The substructure, due to the different bulk densities and moisture, also in conifers, should in most cases be pre-drilled over the entire thread length with Ø 3 mm. If in doubt, we recommend carrying out pretrials

Stainless steel MOUNTS EXTERIOR WOOD PROFESSIONAL AND PERMANENTLY In mounting pack or object pack incl. assembly instructions, pencil S1 and SIHGAFIX stainless steel.The protected L-GoFix® MS multistage head combines high pullout force with a very small head diameter.The plane head conclusion gives the area a clean, elegant appearance, thereby increasing the constructive wood protection. For softer woods such as Larch, Douglas fir, pine, is the L-GoFix® MS to blow up without pre-drilling, with no pre-sinking and without the wood, simple and clean screwed from above! For harder woods such as Tropical woods or thermo-modified wood should be pre-drilled with the TerrassenFix® countersink TFB / ES II.The special SIHGA® tip guarantees very quickly attached. The integrated milling splines on the shaft and the sliding coating ensure easy screwing. Sharp thread flanks provide optimum seating in wood. These features enable universal use, even in OSB the L-GoFix® MS optimal screw to. SIHGA® Tip: For optimum constructive wood protection and to reduce the shear on screws (by the swelling / shrinking behavior of the timbers), we recommend the use of TerrassenFix® II TF or KompeFix® II KF.

The UNIA system screw is used to fasten metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3 mm.The tip, which is designed as a drilling unit, ensures a reduced splitting effect and less surface tension. Length: 17 - 47 mmDiameter: 4.2 mm and 4.8 mm Head: cylinder head Ø 5.8 mm Drill point: suitable for wood and aluminiumDrilling capacity: Aluminium with approx. 3 mm wall thickness Drive: TX 20Material: hardened stainless steel / stainless steel A4 1.4401with black surface coating DESCRIPTIONUNIA is a stainless steel self-drilling screw with a cylindrical head shape for fastening metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3.0 mm.The drill tip, which is designed as a drilling unit, ensures a reduced splitting effect and reduces surface tensions e.g. with screw connections on the back in element construction.APPLICATIONFor fastening concealed fastening systems such as TIGA, DILA, SUPRO, PLATA, LIGO and ZONA.The suitability and compatibility of the UNIA system screws with the component to be connected and their substructure may have to be determined by the plank or facade strip manufacturer / supplier.MATERIAL1.4006 / X12Cr13 / AISI 410 hardened stainless steelOptionally with black surface coating [black zinc plated]

OPTIMAL FOR FIXING OF FACADE FORMWORK (tongue and groove). No pre-drilling the F-BohrFix® example is bolted simply and extremely clean. The SIHGA®Bohrspitze penetrates very quickly that special SIHGA® head shape allows mounting close to the edge without the timber to burst and the little decorative head can be easily and cleanly sink.IMPORTANT: Due to the tannic acid timber should be mounted outdoors exclusively with products made of stainless steel!

SIHGA® TEBIT® rust-free holds the screw without a magnet and prevents extraneous rust     special bit with hold function     the screws remain without holding on and without a magnet on the bit     also enables assembly overhead and difficult to access     saves time and money, especially with small screw dimensionsTEBIT® is included with Tefix®, GleitFix® GF and DielenFix® DF

THE UNIVERSAL CONSTRUCTIVE WOOD PROTECTION The KompeFix® II KF creates distance between the timber and thus ensures good ventilation and long life of the woods.The KompeFix® II KF is simply placed and fixed in several places. If the KompeFix® II KF used in terraces, it supports the sealing of the screw for substructure and increases walking comfort on the terrace. For fast processing of KompeFix® II KF is made up respectively in 4.5 meter rolls.Due to its special shape, it compensates for the natural swelling and shrinking processes of timber and stabilized the structure - the screw heads always remain flush!

The depth limiter TerrassenFix® TTB allows exactly flush the screw is screwed in decking.The special slipping clutch during TerrassenFix® depth limiter TTB, the screws can be tightened quickly. Once the head of the screw with the deck board is flush, the slip clutch is activated and the bit rotates idly by. Thus, the processor itself saves a lot of work and achieved even after a long Schraubtätigkeit, especially with very large areas, always forming a uniform screw.Towed lowered screw heads with decking forming blind holes in which water stops and thus destroyed the timber in the area of the screw.The depth limiter TerrassenFix® TTB can be equipped as standard with the various sizes of stainless steel SIHGAFIX.

With the TerrassenFix® template TFS is without complicated measuring and marking, the deck board pre-drilled and pre-cuts in one operation.The TerrassenFix® template TFS is the ideal accessory for TerrassenFix® countersink TFB / ES II.The result is an accurate and uniform. Your benefits: Drilling and sinking of the decking without measuring and marking. saves 50% of working and produces attractive, evenly screwed surface. produced in Austria, developed and patented. domestic quality, the experience of over 13 years of terraces has been incorporated. universally 205 mm width in terrace construction - for decking from 70th made entirely of anodized aluminum. for a long service life of the mask in everyday construction. automatically matching lead TerrassenFix® countersink. each hole is performed accurately positioned and evenly. adjustable side wood distance above the stop, either 15, 20, 35 mm. Side timber spacing are easily selectable. constructive wood protection is respected. for rational, fast operation. View port to previous fittings. reliable, externally monitored values provide security in processing and closing quality fluctuations.

The substantial increase longevity of wooden deckings. Even joints are to be made with the simplest TerrassenFix® II TF.Simultaneously, the 6 mm thick TerrassenFix® II TF ensures optimum constructive wood protection, that is, between decking and substructure is optimally ventilated and prevented waterlogging. Another important advantage is that the screws are not loaded for shearing but to bending through the use of TerrassenFix® II TF.The TerrassenFix® II TFS pin enables the quick adjustment of the joint width during assembly and is then completely removed again - very important so that the decking will not be blocked in their natural swelling and shrinking processes!The TerrassenFix® II TF does not have to be laboriously screwed on the substructure, but is merely placed. The special material increases walking comfort on the terrace!Total offers TerrassenFix® II TF tremendous relief and reduction of working time and a significant extension of the life of terraces.

SIHGA® TIPIn case of applications in the pool area with timbers and with a high tannin content, we recommend using L-BohrFix® MB A4. For surface-flush rotation, fast and secure, we recommend TerrassenFix® Depth Limiter TTB. fastens wood to wood without pre-drilling and without countersinkingreduces crack formation or splitting of the timbers, even board materials, saves work time, additional pre-drilling extends the life of the wood also attaches coverings made out of hard and thermo-woodcreates a perfect look, with these woods additional pre-drilling is recommended multi-stage head with small head diameterhigh constructive wood protection and refined surface as a result of the plane head special thread angle with sharp thread edgeshigh pull-out value SIHGA® point with special shapeguarantees fast setting of screws without splitting SIHGA® ribs on shaft and slip coatinglight, fast rotation and optimum fit in the wood are guaranteed made from hardened stainless steelrust-free fastening, extremely break-proof also available with black (SC 9 coating) and antique look (SC 11 coating)optimum on dark materials, or can be used for larch, Douglas fir and Bangkirai including SIHGAFIX® stainless steel, Systemstift® and installation instructionstime-saving, practical, precise, all accessories enclosed; SIHGAFIX® stainless steel prevents rust from external sources and also screws into deep grooves When using coatings such as oils, glazes and pre-greying, it is essential to consult the coating manufacturer. As a rule, the manufacturer specifies the minimum material quality of the binding agent. If the manufacturer is not known, we recommend material quality A4 (L-BohrFix® MB A4).L-GoFix® MS A2 made from A2 stainless steelstands out thanks to its good corrosion resistance and is best used in moderate, corrosive environmentsBecause of the material properties it is strongly advised to generally pre-drill the add-on part (screw diameter + 0.5 -1 mm). The substructure, due to the different bulk densities and moisture, also in conifers, should in most cases be pre-drilled over the entire thread length with Ø 3 mm. If in doubt, we recommend carrying out pretrials

Stainless steel MOUNTS EXTERIOR WOOD PROFESSIONAL AND PERMANENTLY In mounting pack or object pack incl. assembly instructions, pencil S1 and SIHGAFIX stainless steel.The protected L-GoFix® MS multistage head combines high pullout force with a very small head diameter.The plane head conclusion gives the area a clean, elegant appearance, thereby increasing the constructive wood protection. For softer woods such as Larch, Douglas fir, pine, is the L-GoFix® MS to blow up without pre-drilling, with no pre-sinking and without the wood, simple and clean screwed from above! For harder woods such as Tropical woods or thermo-modified wood should be pre-drilled with the TerrassenFix® countersink TFB / ES II.The special SIHGA® tip guarantees very quickly attached. The integrated milling splines on the shaft and the sliding coating ensure easy screwing. Sharp thread flanks provide optimum seating in wood. These features enable universal use, even in OSB the L-GoFix® MS optimal screw to. SIHGA® Tip: For optimum constructive wood protection and to reduce the shear on screws (by the swelling / shrinking behavior of the timbers), we recommend the use of TerrassenFix® II TF or KompeFix® II KF.

The UNIA system screw is used to fasten metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3 mm.The tip, which is designed as a drilling unit, ensures a reduced splitting effect and less surface tension. Length: 17 - 47 mmDiameter: 4.2 mm and 4.8 mm Head: cylinder head Ø 5.8 mm Drill point: suitable for wood and aluminiumDrilling capacity: Aluminium with approx. 3 mm wall thickness Drive: TX 20Material: hardened stainless steel / stainless steel A4 1.4401with black surface coating DESCRIPTIONUNIA is a stainless steel self-drilling screw with a cylindrical head shape for fastening metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3.0 mm.The drill tip, which is designed as a drilling unit, ensures a reduced splitting effect and reduces surface tensions e.g. with screw connections on the back in element construction.APPLICATIONFor fastening concealed fastening systems such as TIGA, DILA, SUPRO, PLATA, LIGO and ZONA.The suitability and compatibility of the UNIA system screws with the component to be connected and their substructure may have to be determined by the plank or facade strip manufacturer / supplier.MATERIAL1.4006 / X12Cr13 / AISI 410 hardened stainless steelOptionally with black surface coating [black zinc plated]

OPTIMAL FOR FIXING OF FACADE FORMWORK (tongue and groove). No pre-drilling the F-BohrFix® example is bolted simply and extremely clean. The SIHGA®Bohrspitze penetrates very quickly that special SIHGA® head shape allows mounting close to the edge without the timber to burst and the little decorative head can be easily and cleanly sink.IMPORTANT: Due to the tannic acid timber should be mounted outdoors exclusively with products made of stainless steel!

The ELITA stainless steel screws are specifically designed to securely mount wood or wood-likeTerrace and facade boards in demanding exterior applications where visual quality is paramount.The geometry of the countersunk screw head has 3 steps which permit a perfect precise flush finish. ELITA can be additionally combined with PROFILA and SOLIDA screws due to the identical diameter of the screw heads allowing a uniform screw head arrangement.Length: 50 - 80 mmDiameter: 4.5 mm, 5.0 mmHead: 3-Step-HeadBit: TXMaterial: Hardened stainless steel
