SIHGA® GleitFix® GF

€2.82*

Content: 1 set

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

GleitFix screw quality

stainless steel

stainless steel A4

screw length

17 mm

22 mm

28 mm

GleitFix GF system packaging

1 set incl. screws

50 pc. installation pack

150 pc. object pack

set

Product number: 34416.1

Product nr	Options	Price
34416	stainless steel, 17 mm, 50 pc. installation pack	€85.56
34416.1	stainless steel, 17 mm, 1 set incl. screws	€2.82
34419	stainless steel, 17 mm, 150 pc. object pack	€219.06
34446	stainless steel, 22 mm, 50 pc. installation pack	€90.66
34446.1	stainless steel, 22 mm, 1 set incl. screws	€2.94
34449	stainless steel, 22 mm, 150 pc. object pack	€225.12
34476	stainless steel, 28 mm, 50 pc. installation pack	€95.64
34476.1	stainless steel, 28 mm, 1 set incl. screws	€3.06
34479	stainless steel, 28 mm, 150 pc. object pack	€231.30
34516	stainless steel A4, 17 mm, 50 pc. installation pack	€118.98
34516.1	stainless steel A4, 17 mm, 1 set incl. screws	€3.60
34519	stainless steel A4, 17 mm, 150 pc. object pack	€300.54
34546	stainless steel A4, 22 mm, 50 pc. installation pack	€123.36
34546.1	stainless steel A4, 22 mm, 1 set incl. screws	€3.72
34549	stainless steel A4, 22 mm, 150 pc. object pack	€310.68
34576	stainless steel A4, 28 mm, 50 pc. installation pack	€127.32
34576.1	stainless steel A4, 28 mm, 1 set incl. screws	€3.84
34579	stainless steel A4, 28 mm, 150 pc. object pack	€314.70

Product information "SIHGA® GleitFix® GF"

SIHGA GleitFix is a further development of the SIHGA DielenFix.

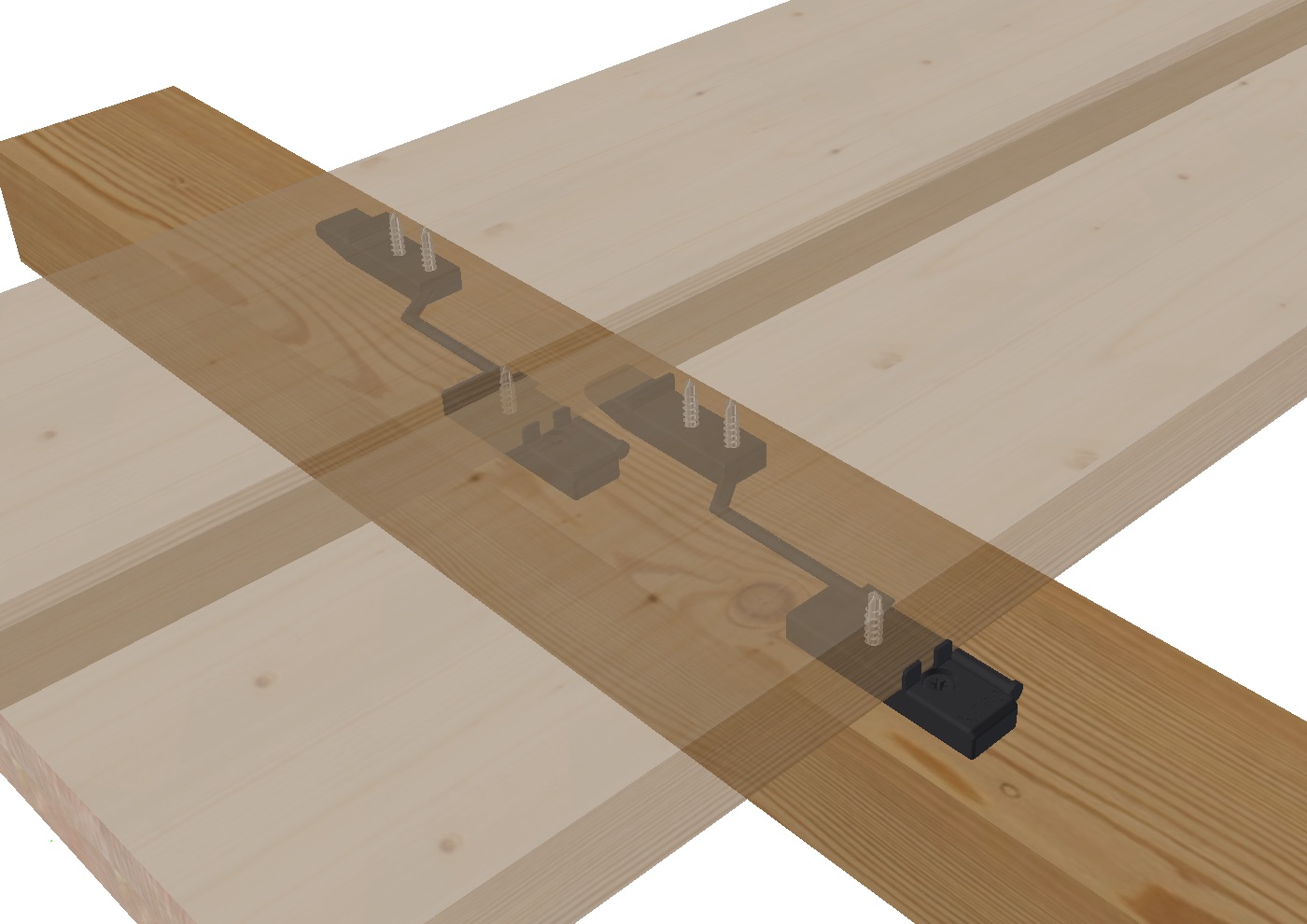

The successor to the DielenFix is a one-part system, which is fastened to the underside of the floor with three screws. The clip connection between the two glass fiber reinforced plastic plates facilitates the alignment of the fastening. Compared to the DielenFix, the system saves a stainless steel drill screw per attachment. SIHGA GleitFix can be used for nearly all types of wood with a width between 90 and 150 mm.
Its height has been raised from 6 to 8 mm, which ensures perfect structural protection for the substructure and guarantees an optimal aerated terrace - a key criterion for the service life of terraces.

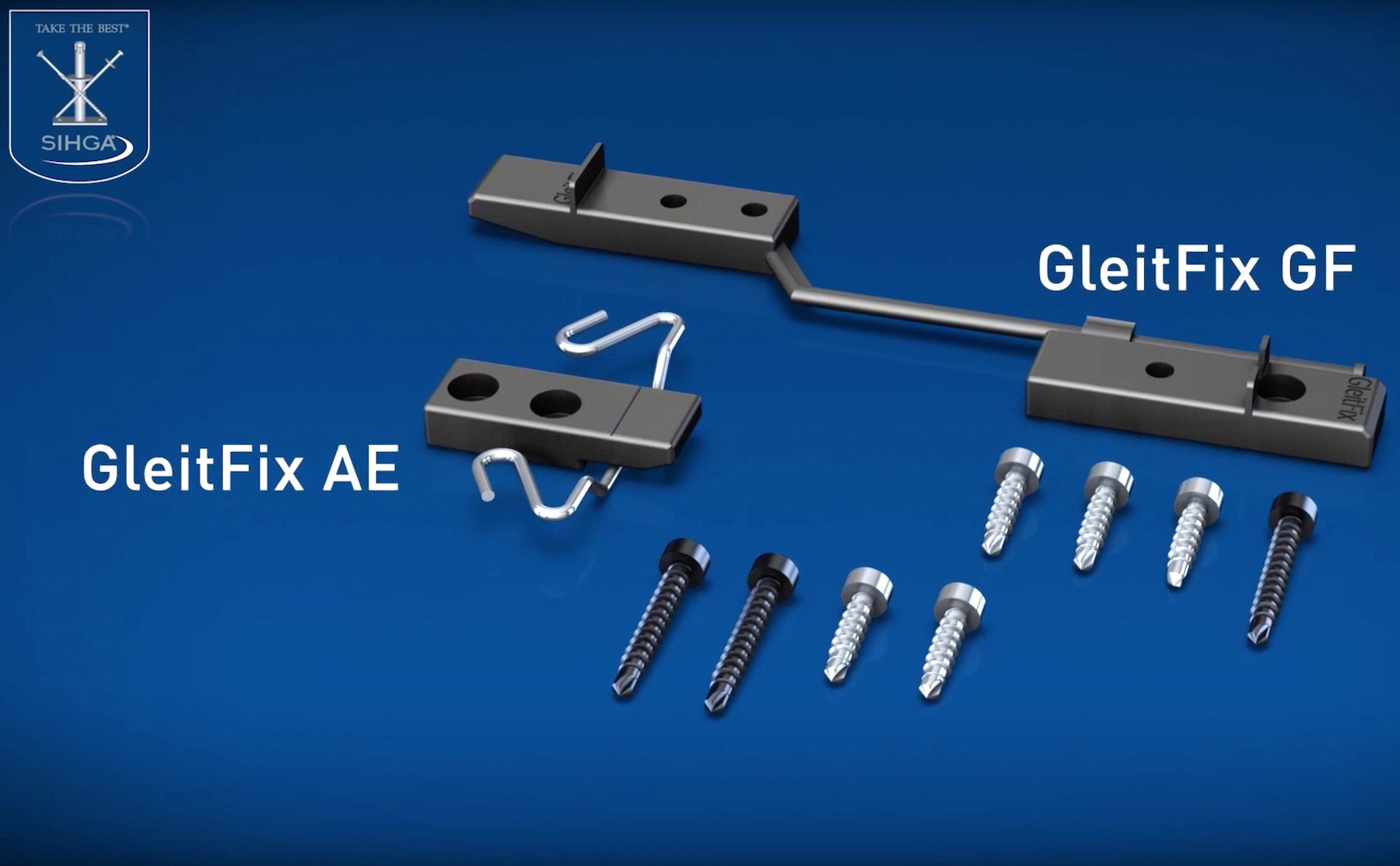

Also new is a special attachment for the initial and end boards. Now these can also be fixed invisibly: GleitFix AE

SIHGA DielenFix quantity calculation:
To determine the amount required, we recommend the following auxiliary formula:
Total linear meters of the substructure / plank width including gap
Using the example of a terrace with a 15 meter substructure, hallway width 144 mm, 6 mm groove:
15 / 0.150 = 100 pieces

The use:

fastened planks not visible screwed; produced, developed and patented in Austria
gives elegant appearance and safety of the screw
suitable for almost all types of wood
reduces errors on site upon delivery of the material; thereby bringing time savings and reduced storage costs
Made of SIHGAMID®, the fiberglass-reinforced plastic from the Space Exploration
secured more durable than stainless steel, even when säurehältigen woods; is extremely strong, heat, frost and UV-resistant; no material fatigue
Floorboards remain intact at all visible surfaces
the woods are screwed from below, which gives longer shelf life and prevents putrefaction and the direct influence of weather
like swelling and shrinkage of the wood from operations
reduces the crack and fracture behavior of wood in these natural processes
Choice of three screw lengths
Possible use for all common hallway strengths 19-40 mm
variable visible joint 0-15 mm, for each suitable builders
Height, material thickness 8 mm for optimum aeration and ensures optimum constructive wood protection
at GleitFix® GF CS A4 screws are enclosed
time-saving, convenient, accurate and matching SIHGAFIX® prevents rust and rust and stainless steel A4 BohrFix® for saltwater and chlorine environment
Included SIHGAFIX® stainless, hardened stainless steel BohrFix® with drill bit and installation instructions
no rust, no tearing or rupture of the screws; time-saving, convenient, accurate, all accessories accompanies
SIHGA® TIP: MAGBIT® facilitates assembly

For optimum adaptation to the type of wood of the boards or on the weathering situation of DielenFix® is produced with different fastening screws:
Type GleitFix® GF incl. BohrFix® stainless steel
Type GleitFix® GF CS incl. BohrFix® stainless steel A4

YouTube Video "SIHGA® GleitFix® GF"

Downloads "SIHGA® GleitFix® GF"

38518_Montageanleitung_GleitFix_GF_24_WEB.pdf

GleitFix GF_Sihga_Technical_Data_Sheet_EN.pdf
