A simple spacing profile with a lot of know-how permits a ventilation gap eliminating the risk of waterlogging. Quickly mounted and fixable in order to achieve a long lasting and problem free result. Constructive wood protection was never so easy. Overview Fixing:spacer for visible screw connectionsLength:10 m RollWidth:10 mmHeight:7 mmMaterial:extruded plasticSpecial feature:sound dampening effect

The UNIA system screw is used to fasten metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3 mm.The tip, which is designed as a drilling unit, ensures a reduced splitting effect and less surface tension. Length: 17 - 47 mmDiameter: 4.2 mm and 4.8 mm Head: cylinder head Ø 5.8 mm Drill point: suitable for wood and aluminiumDrilling capacity: Aluminium with approx. 3 mm wall thickness Drive: TX 20Material: hardened stainless steel / stainless steel A4 1.4401with black surface coating DESCRIPTIONUNIA is a stainless steel self-drilling screw with a cylindrical head shape for fastening metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3.0 mm.The drill tip, which is designed as a drilling unit, ensures a reduced splitting effect and reduces surface tensions e.g. with screw connections on the back in element construction.APPLICATIONFor fastening concealed fastening systems such as TIGA, DILA, SUPRO, PLATA, LIGO and ZONA.The suitability and compatibility of the UNIA system screws with the component to be connected and their substructure may have to be determined by the plank or facade strip manufacturer / supplier.MATERIAL1.4006 / X12Cr13 / AISI 410 hardened stainless steelOptionally with black surface coating [black zinc plated]

Each PU contains the UNIA1 system screws 4.2 x 17 mm or 4.2 x 22 mm, 4.2 x 28 mm, 1 STK HELPO assembly aid and assembly instructions required for assembly.Regardless of the board geometry this is implemented quickly with the DILA decking connector. The height of the connector creates an optimal distance between the surface and substructure to prevent the formation of waterlogging.Fixing: concealed systemFixing type: sliding and fixed pointSpace distance: selectableDecking board: all soft and hardwoodsBoard length: all board lengthsBoard repl.: possible Material: A2 Stainless steel / black Special feature: system screws includedDILA2 quantity calculation:We recommend the following auxiliary formula to determine the required quantity:Total running meters of the substructure / board width including joint x 2Using the example of a terrace with 15 running meters of substructure, board width 144 mm, joint 6 mm:15: 0.150 x 2 = 200 piece

The FUGO spacer is the perfect complement for visibly screwed rhombus strips made of wood or wood-like materials. The specially shaped joint spacers between the individual rhombus boards create a uniform joint pattern and ensure a perfect look on wooden facades, privacy screens, fences, etc. Overview Joint spacer:Model 5 | 8 | 12Dimensions:L 45mm B 15 mm H 6 mmMaterial:PP polypropylene blackSpecial feature: for Rhombus boards from 15-30° inclination

PROFILED SELF-TAPPING SCREW Designed to efficiently drill through metal. High breaking strength and the special geometry gives this screw the properties to achieve a perfect fit. Length: 35 - 70 mmDiameter: 5,5 mmHead: 3-Step-Head

The ventilation drainage grate RELO V is perfectly suited to any decking project. The aluminum profile with the high-quality anodized finish seamlessly integrates into any terrace, creating a harmonious transition to adjacent objects. With a width of 150 mm it complies with flat roof design guidelines and allows the necessary ventilation of the substructure and decking boards.Dirt and discoloration on vertical elements adjacent to the decking area i.e. facades, doors, patio doors/windows etc. from water spray is drastically minimized due to the incorporated drainage holes. Overview  RELO VRELO VA support profilesDimensions:1,200 x 150 x 20 mm 1,880 x 18 x 17 mmMaterial:Aluminium EN AW 6060Aluminium EN AW 6060Surface:Silver Anodized E6/EV1 ǀ RAL 7016Aluminium blank ǀ RAL 7016Accessories:RELO VA support profilesRELO VB end-cover E6/EV1RELO VH holder aluminium blankSystem screws UNIA 4.2 x 22 – 28 mmEPDM pads GUMO L 2 – 8 mm,depending on height adjustment

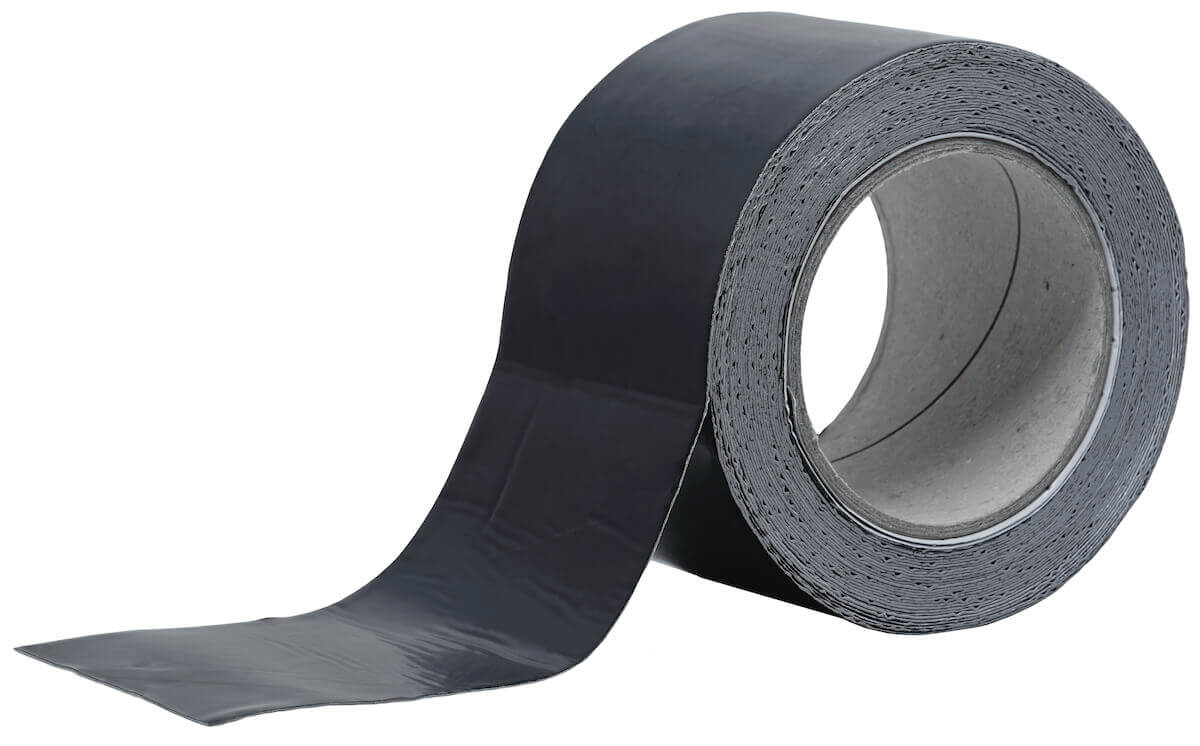

Continuously protects the substructure and prevents surface friction noises from aluminium substructures.A self-protection and isolating band for substructures made of wood and aluminium. GUMO K protects the wooden substructure permanently against dirt and water retention and acts as a separation layer between two surfaces (hidden fastening clip and substructure) prone to friction.Length: 10 m RollWidth: 75 mmMaterial: butyl blackSpecial feature: self-adhesive, elasticized

The simplest fastening with integrated constructive wood protection for laterally grooved decking boards.The decking connector LIGO guarantees easy and fast assembly for side grooved decking boards made of wood or wood-like materials.The spacer ensures optimum ventilation and prevents the formation of waterlogging between the decking and the substructure. The integrated spring elements contribute to a secure connection, prevent noise generation and increase walking comfort.Fixing: concealed system Fixing type: sliding point - sliding point Space distance: 6,0 mm Decking board: profiled with side groove Wood species: high dimensional stability boardsDim. LIGO N: L 32 mm | W 24 mmMaterial: stainless steel, black coating Mat. spacer: PA Glass fiber reinforcedBoard repl.: possible Special feature: mod.to the starter and end clip       Included in every package are the required UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm and instructions

The ventilation profile is inserted into the designated support profiles and screwed into place. The support profiles are to be fixed to the substructure - joints of the support profiles are to be carried out directly on a substructure. The center distances of the substructure are between 400 and 450 mm. Lateral support points can be securely screwed to the RELO corner brackets.

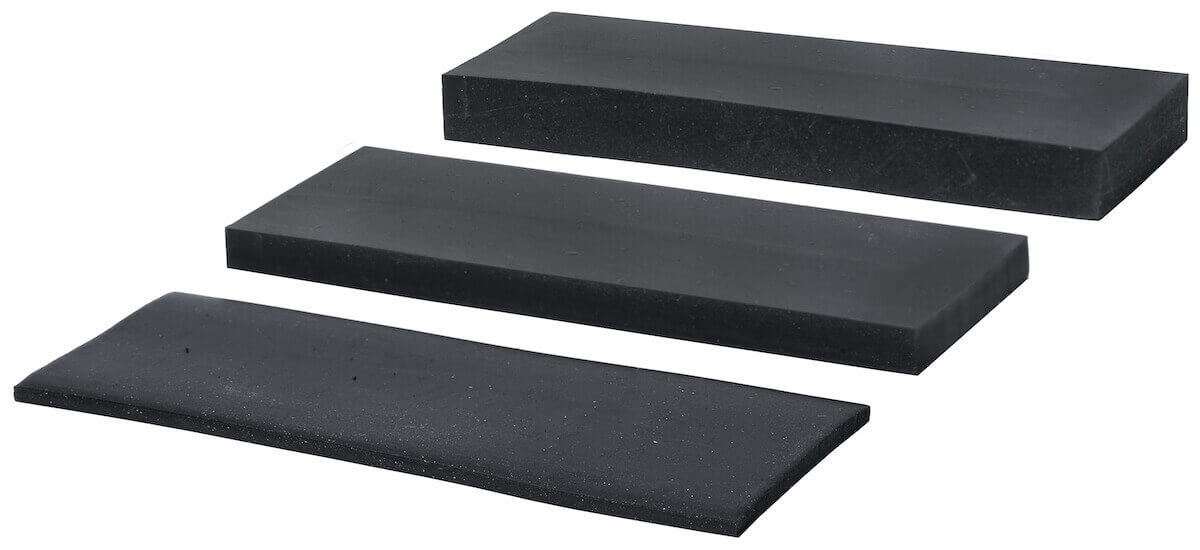

The simplest way to counteract moistureFor optimum ventilation between the substructure and foundation. Various pad thicknesses allow different floor levels to be evened out.Width: 30 mmLength: 80 mmHeight: 2, 5, 8 mm

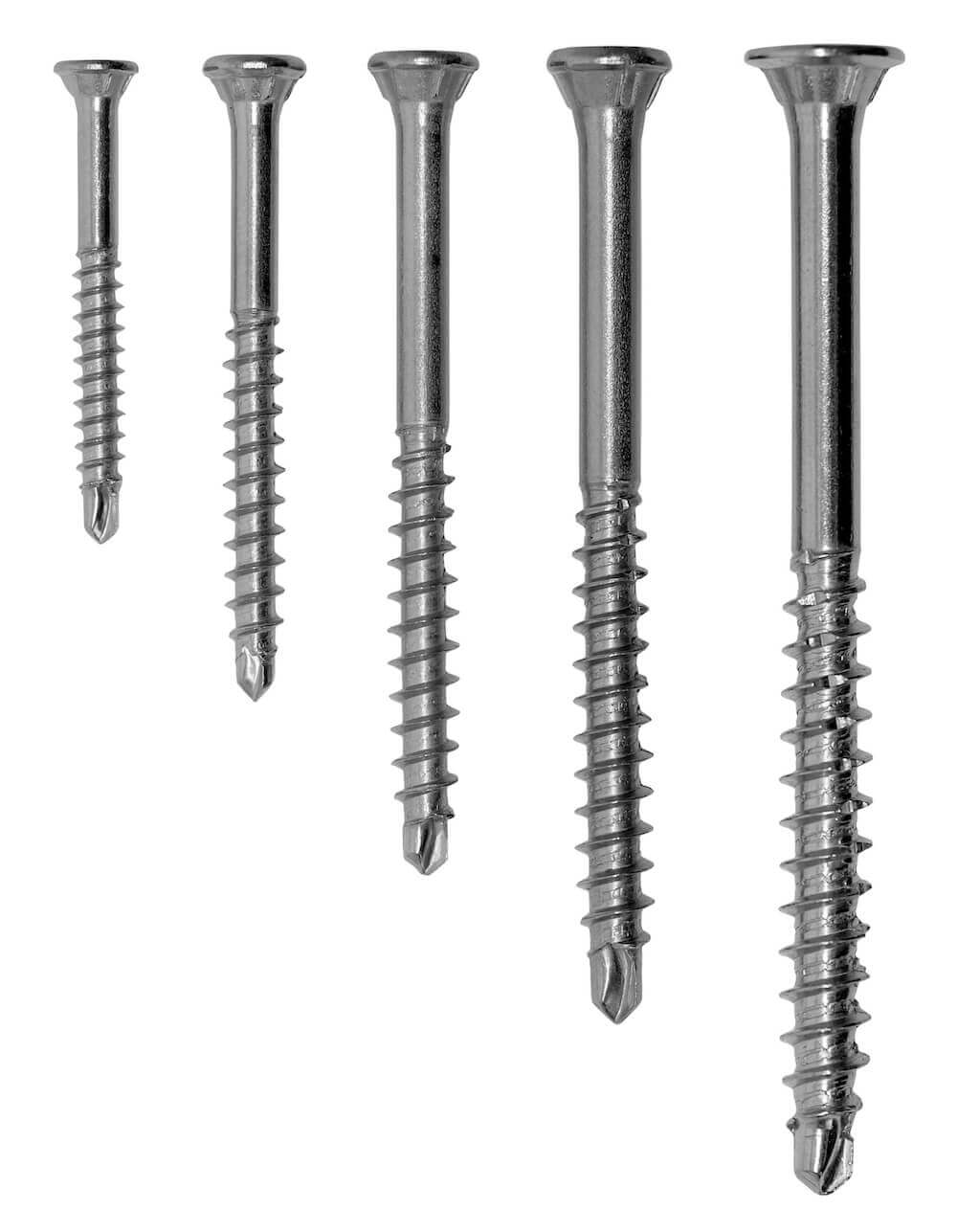

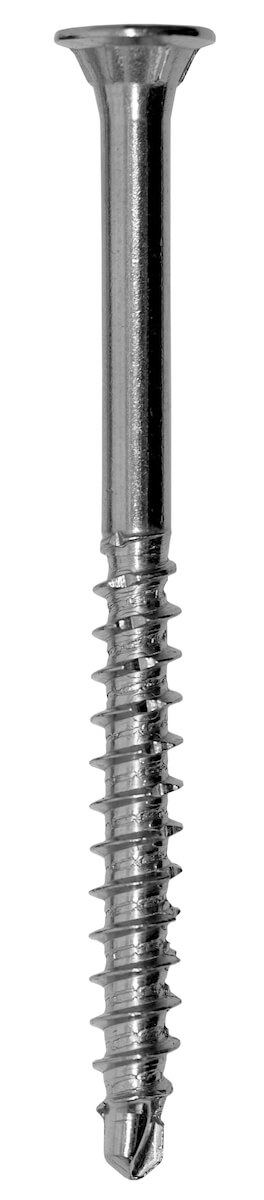

Developed for solid grip and precise positioning. Installation process with minimum effort and maximum resistance. Elegant appearance, integrated pre-drilling point, rapid penetration, flush head finish and versatile for outdoor purposes. Length: 25 - 120 mmDiameter: 3,2 - 6 mmHead: 3-Step-Head

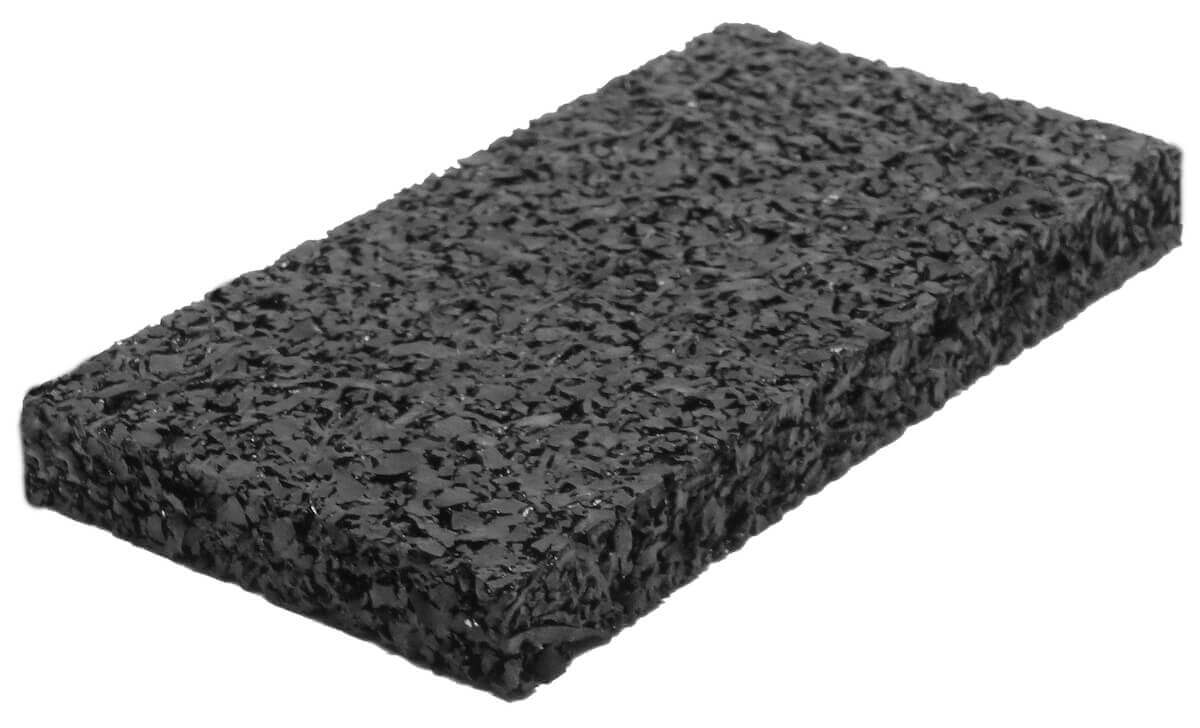

GUMO LG is for hight adjustment (spacer) between the decking substructure and foundation.APPLICATIONFor optimum ventilation between the substructure and foundation. Various pad thicknesses allow different floor levels to be evened out.

The RELO RA edge finishing trim profile is the perfect finishing touch and design feature for any terrace made of wood, wood-like materials or ceramic tiles. The simple installation and universal applications facilitate a wide range of possibilities: e.g. for pool border surrounds, stair treads, terrace borders with addtional components such as the ventilation profile RELO V.  Dimensions:Length 2,000 mm Material:Aluminium EN AW 6060Surface:Silver Anodized E6/EV1 | RAL 7016

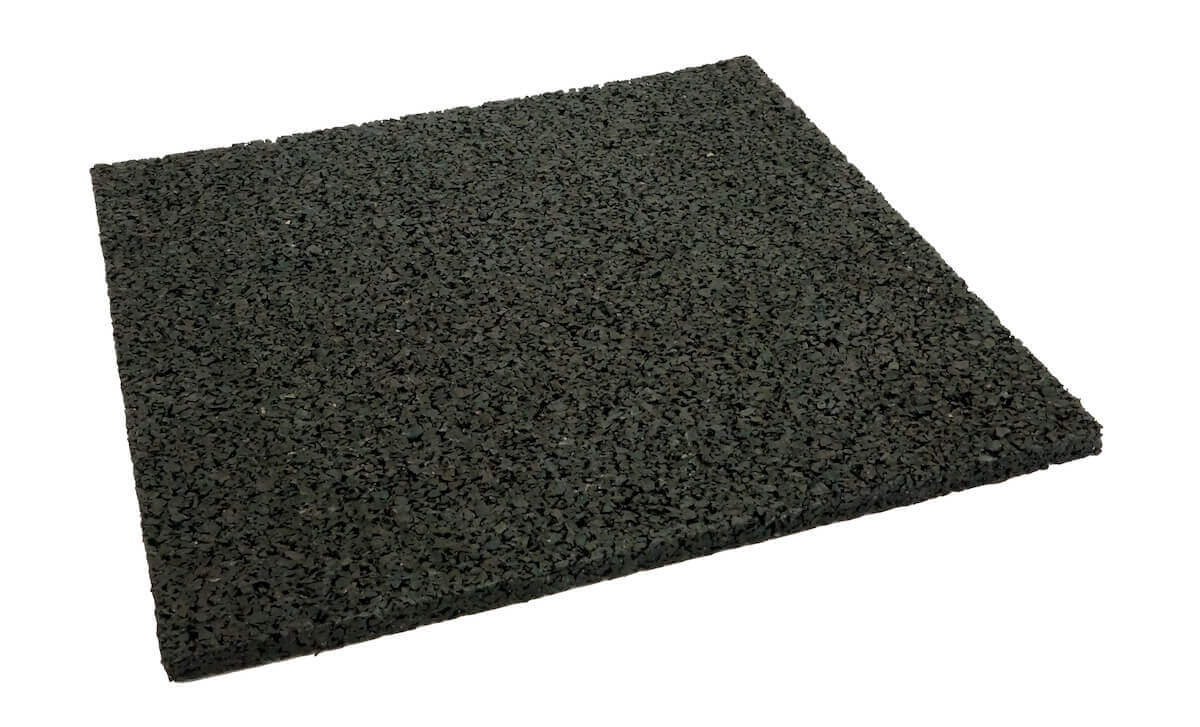

GUMO LG is for hight adjustment (spacer) between the decking substructure and foundation.APPLICATIONThe GUMO LG 80 x 40 mm pads are inserted between a terrace substructure made of wood-like material or aluminum and the ground surface and secured against slipping. Height compensation is achieved by stacking the pads.

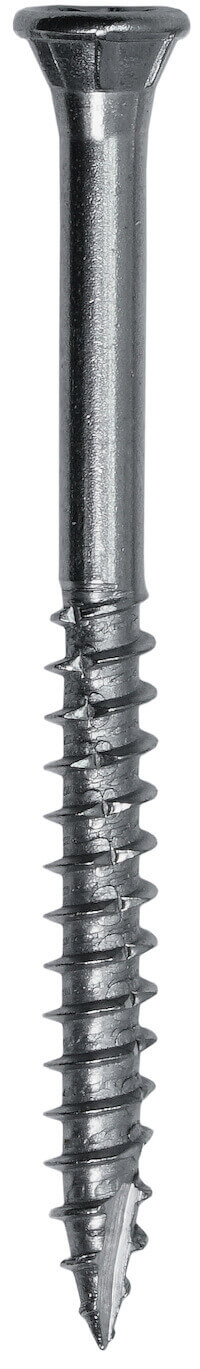

The ELITA stainless steel screws are specifically designed to securely mount wood or wood-likeTerrace and facade boards in demanding exterior applications where visual quality is paramount.The geometry of the countersunk screw head has 3 steps which permit a perfect precise flush finish. ELITA can be additionally combined with PROFILA and SOLIDA screws due to the identical diameter of the screw heads allowing a uniform screw head arrangement.Length: 50 - 80 mmDiameter: 4.5 mm, 5.0 mmHead: 3-Step-HeadBit: TXMaterial: Hardened stainless steel

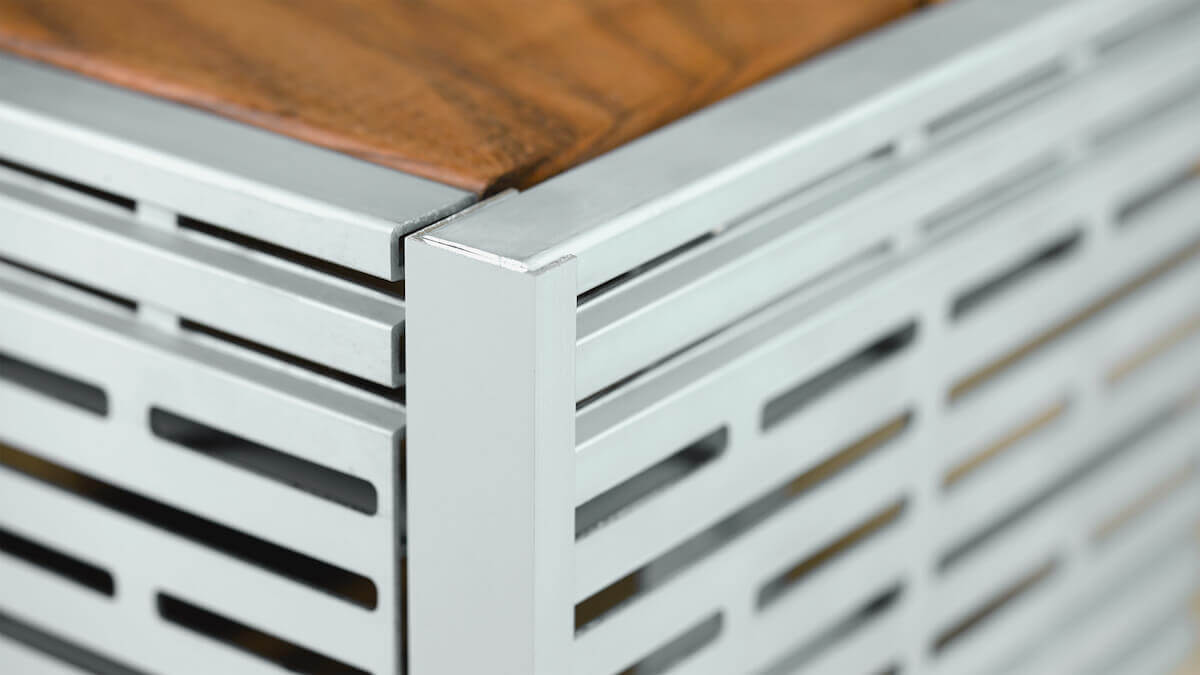

The end cover RELO VB ensures a beautiful front end.With the system accessories for RELO V, side panels become the visual highlight of your terrace.Each PU contains the UNIA1 system screws 4.2 x 22 mm required for assembly

The concealed decking connector TENI guarantees a very simple, fast and safe installation for modified, dimensionally stable wood species and compound decking boards with lateral cove.
The fastening system is characterized by two independently functioning fix and gliding point receptacles. The flexible and permanently elastic sliding point is automatically brought into position by the angled screw connection in the substructure. Natural dimensional changes per plank are compensated for via the pretensioning force generated. Swelling processes are not passed on to the neighboring plank - each decking plank works for itself - no chain reaction in the area.
The rigid fixed point ensures optimal positioning of the plank and enables safe installation without additional aids such as clamping tools or plank clamps. The 8 mm thick decking connector ensures perfect rear ventilation and structural protection of the components.
A safety device integrated in the base plate prevents the planks from being pushed out sideways.
If necessary, the planks can be replaced quickly and easily thanks to an integrated fold-out mechanism. The decking connector can be modified for the start and end planks. There is no need for a separate connector. TENI decking connectors can be installed on a wood or wood-like substructure and on the RELO T aluminum system rail.OverviewFastening: ConcealedType of fastening: Sliding and fixed pointJoint spacing: 6.0 mmDecking board: For modified, dimensionally stable wood types and compound planks with lateral covePlank exchange: Possible due to fold-out mechanismMaterial: POM polyoxymethylene, UV and weather resistantSpecial feature: Modification to start, end connector

SELF-TAPPING SCREW A4 Developed for solid grip and precise positioningInstallation process with minimum effort and maximum resistance. Elegant appearance, integrated pre-drilling point, rapid penetration, flush head finish and versatile for outdoor purposes.Length: 25 - 120 mmDiameter: 3,2 - 6 mmHead: 3-Step-Head

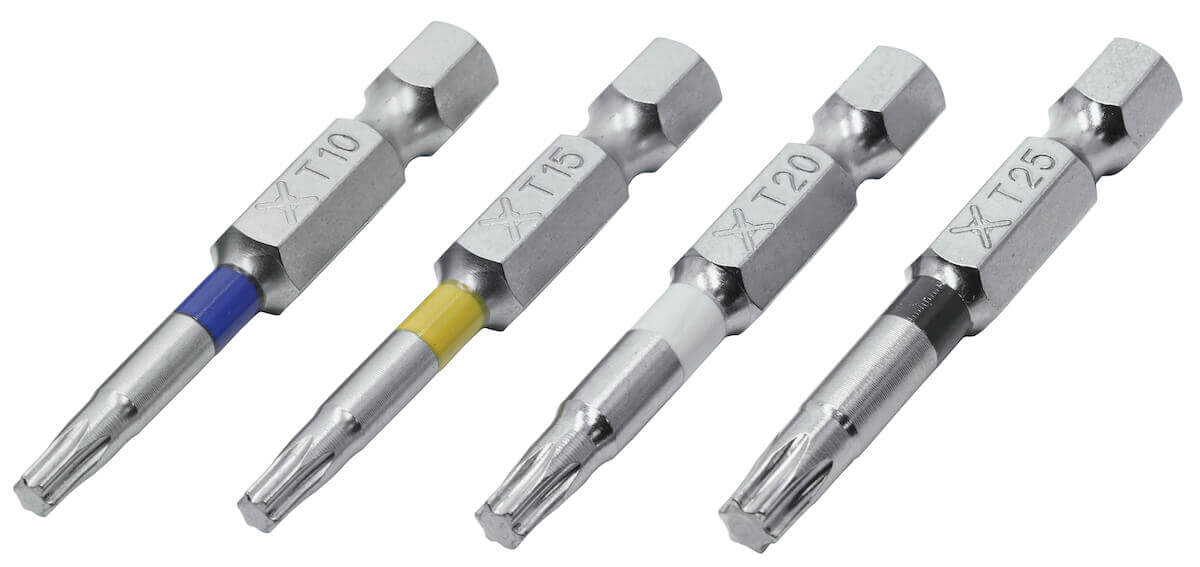

The bit holder fits directly into any drill chuck or impact screwdriver and can therefore be used without additional adapters.A bit length of 50 mm ensures easy handling.Different bit sizes can be easily differentiated by color coding.

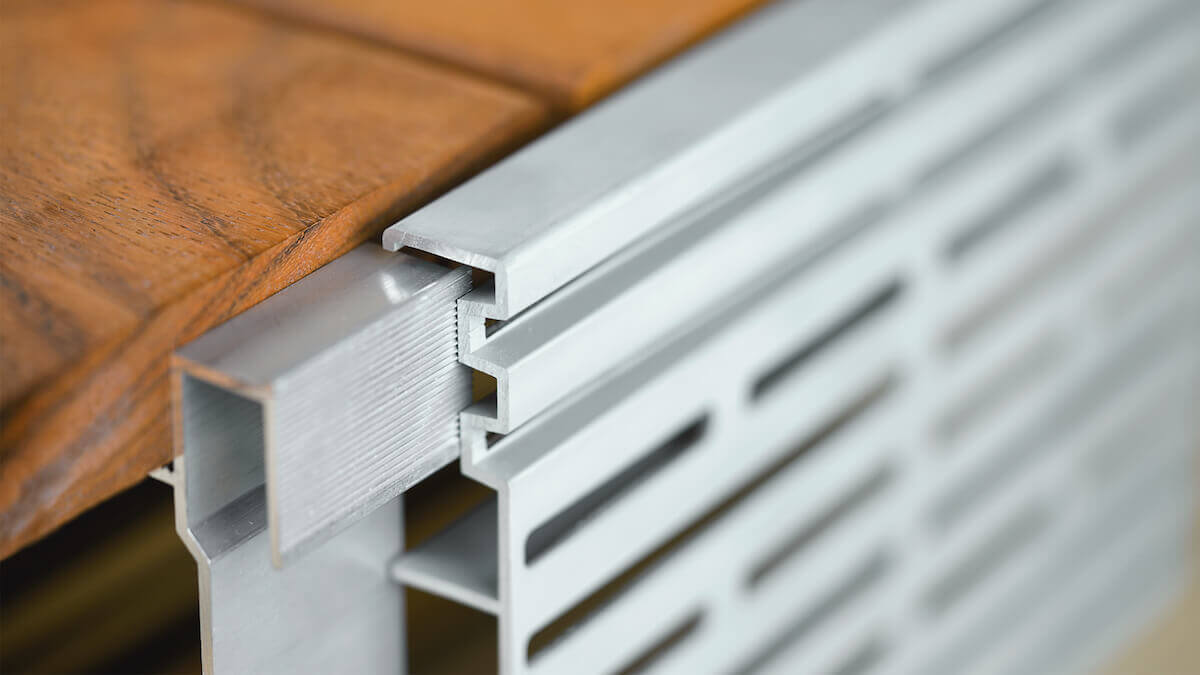

The special RELO VH holder enables easy installation of the ventilation profile and is compatible for board thicknesses of 20 - 42 mm. The RELO VH brackets are screwed on during the assembly of the planks or retrofitted to the substructure.If necessary, the ventilation profile and the holder can be shortened in height.Each PU contains the UNIA1 system screws 4.2 x 17 mm required for assembly

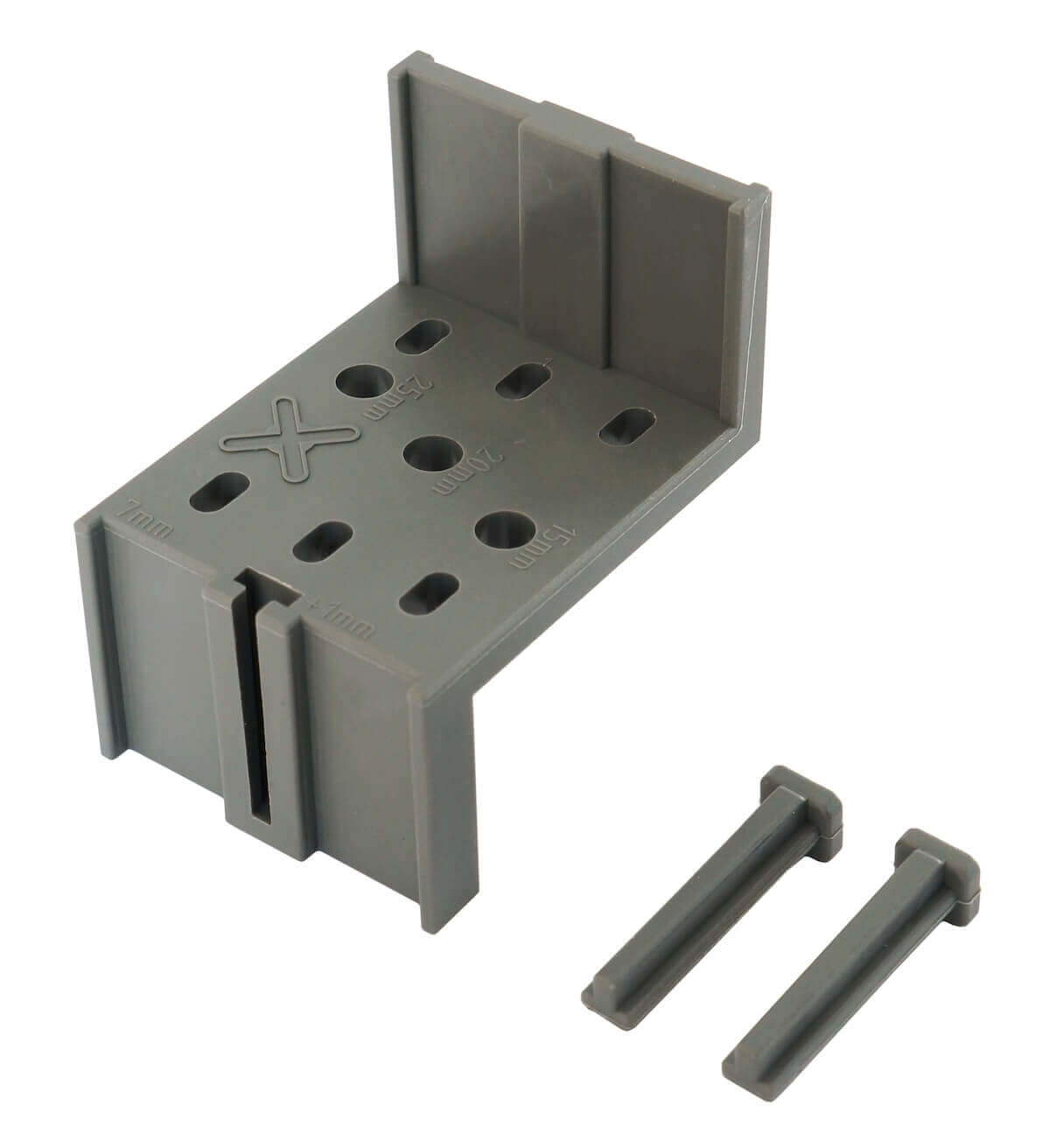

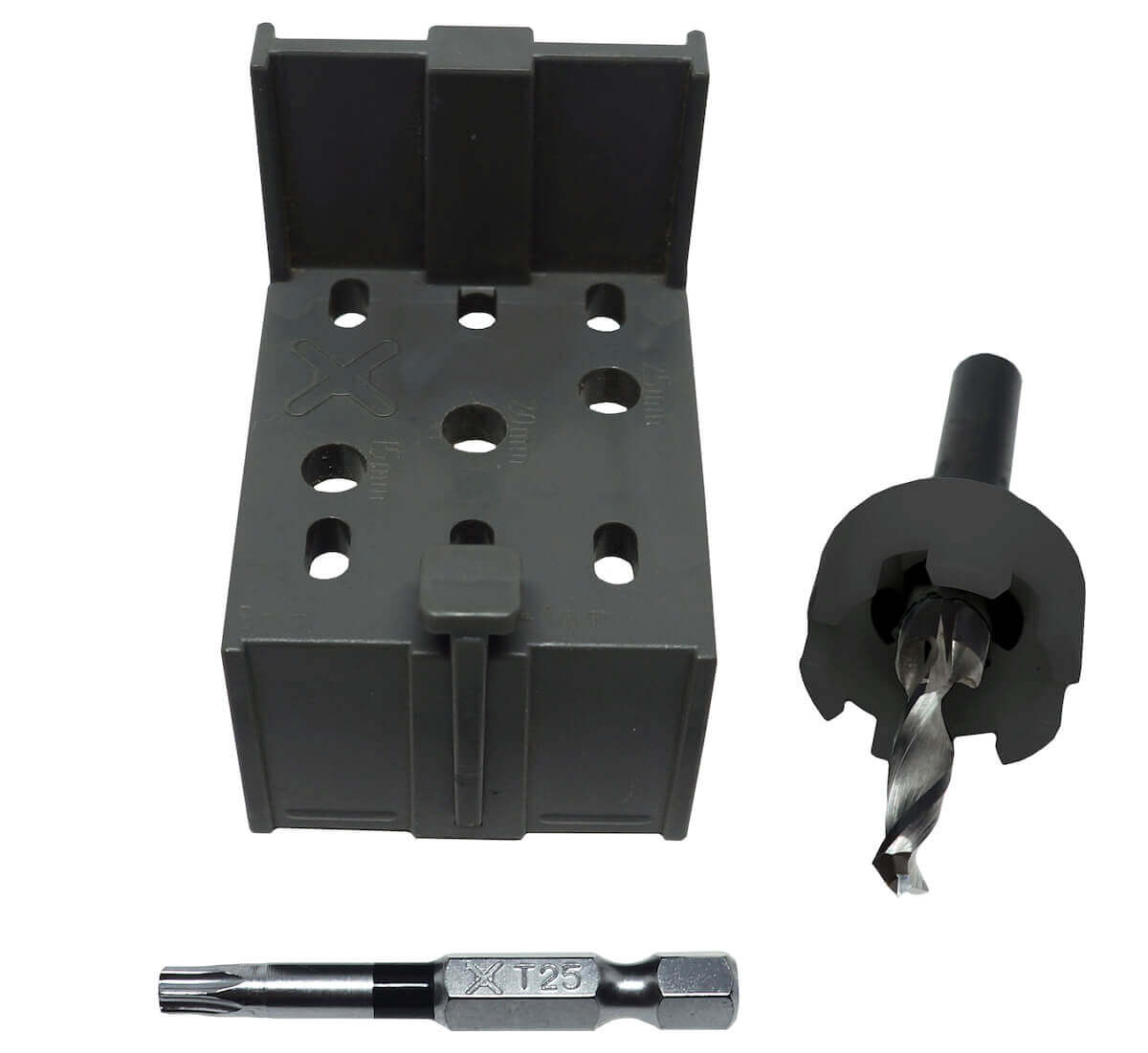

Each HELPO set contains 1 PC HELPO countersink, 2 PC HELPO assembly aids and 1 PC HELPO bit TX25 black 50 mm. The small aid for precise board spacing and exact pre-drillingIt has never been so easy to achieve such a visually pleasing result with the least effort.
Application: board spacing and drilling jigboard space: 5, 6, 7, 8 mmborder distance: 15, 20, 25 mm

The bit holder fits directly into any drill chuck or impact screwdriver and can therefore be used without additional adapters.A bit length of 75 mm ensures easy handling.

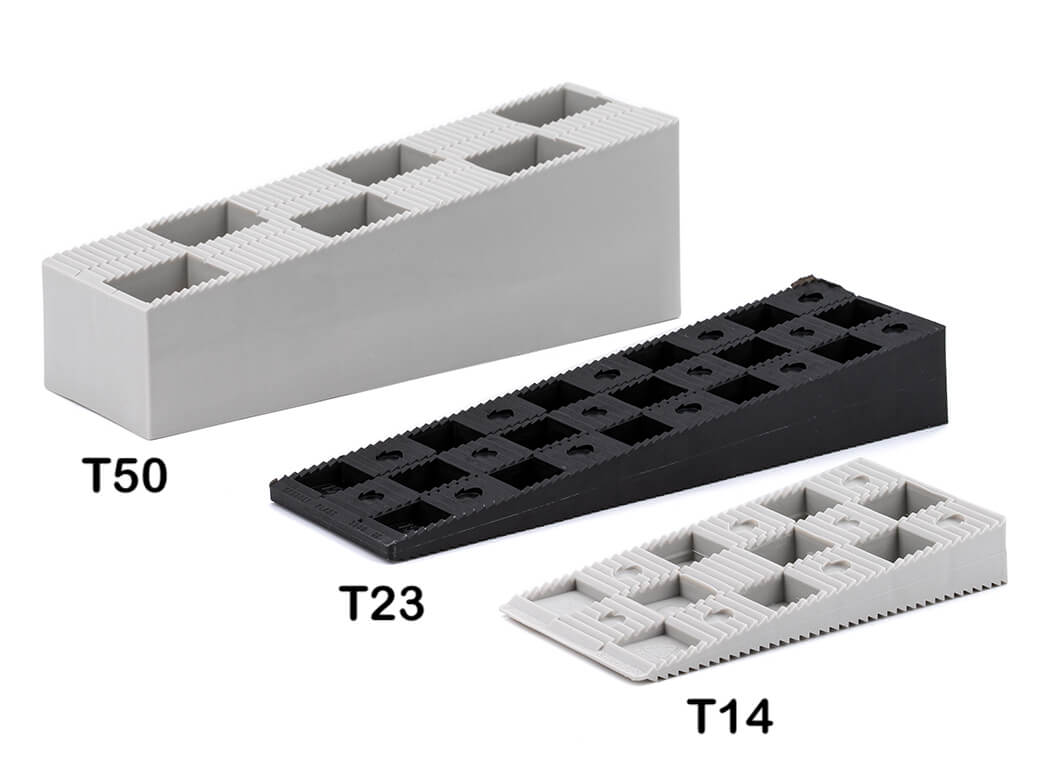

For precise, simple and quick compensation of height differences up to 67 mm. The wedge shape of the TRIGO adjustment wedges guarantees easy and quick set-up of terrace substructures made of wood, wood-like materials or aluminium. Three adjustment wedges can compensate for differences in height from 14 mm to 67 mm. The design of the staggered teeth ensures a non-slip and deformation-free connection.  Overview: Height range: 14 - 67 mm Depending on the width o fthe substructureDimensions TRIGO T14: 93 mm x 46 mm | H 3,5 - 14 mmDimensions TRIGO T23: 152 mm x 46 mm | H 4 - 23 mmDimensions TRIGO T50: 152 mm x 46 mm | H 31 - 50 mmMaterial: PE Plastic Features: Adjustment wedges can be combined

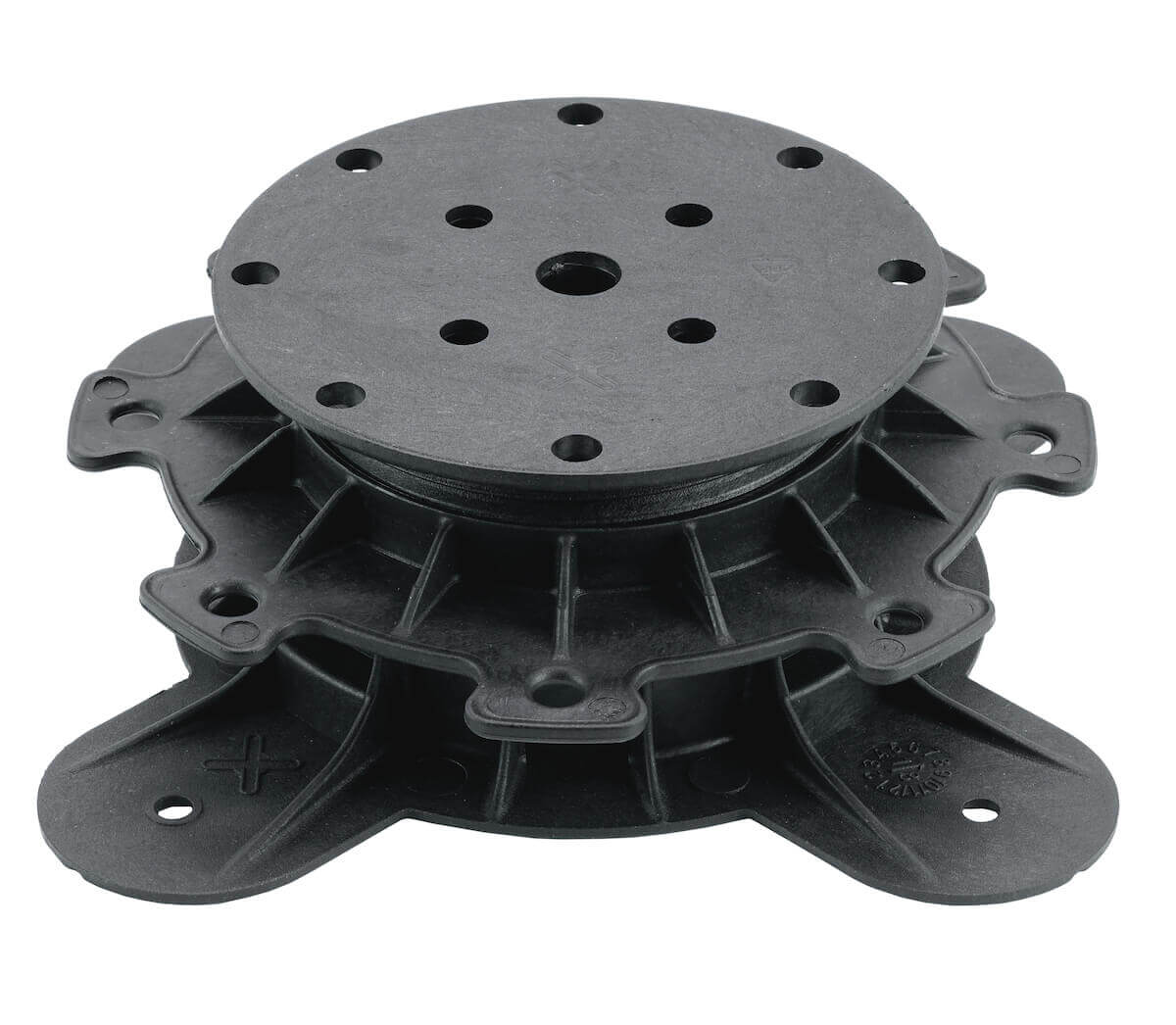

Extremely simple and accurateThe adjustable X-base plate pedestal is sturdy and secure once in position. The height adjustment can be can be extended by simply inserting adapters increasing the range permitting more flexibility during the installation process.Compensation: 35 - 55 mmAdapter 1: +20 mmAdapter 2: +40 mmAdapter: stackableSpecial feature: RELO-click-system compatibl
