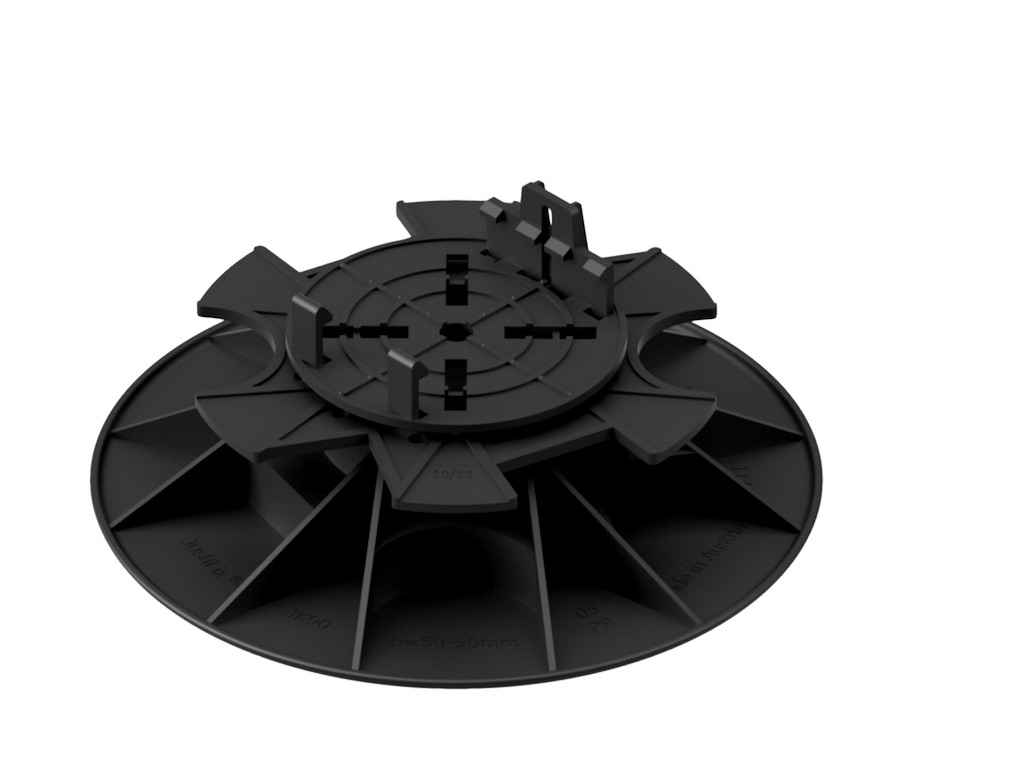

SIHGA® JustiFix® II JK

Ø 215 mm footprint

ONLY TWO MODELS FOR DISTANCES OF 30-500 MM
Since the direct contact of the substructure is a terrace with the floor to be avoided, the JustiFix^® II JK offers valuable assistance. Using the JustiFix^® II JK waterlogging is prohibited under the terrace and ensuring good ventilation.
At the same time it saves a lot of work, because the height adjustment can be carried out easily from above by means of rotational movement. Thereby, the fast and accurate mainly level orientation of the substructure is guaranteed.
Expansion distance range - a model for heights up to 500 mm: Just the top of the JustiFix^® II JK stand out, one or more adapters JA 35 or 70 mm and then attach the upper part again. This process increases the distance range by 35 or 70 mm and can be repeated up to a total height of 500 mm as often.

Application for a timber under construction on solid and rough terrain.
The recommended load per JustiFix^® II JK H is 6.0 kN.
The amount needed per m² depends on the dimension of the substructure. We recommend at wooden decks along the substructure at a distance of 700 mm - which gives an average of about 3.0 per m².
To assemble the JustiFix^® II JK H is simply attached to the substructure side.
