SIHGA® JustiFix® J

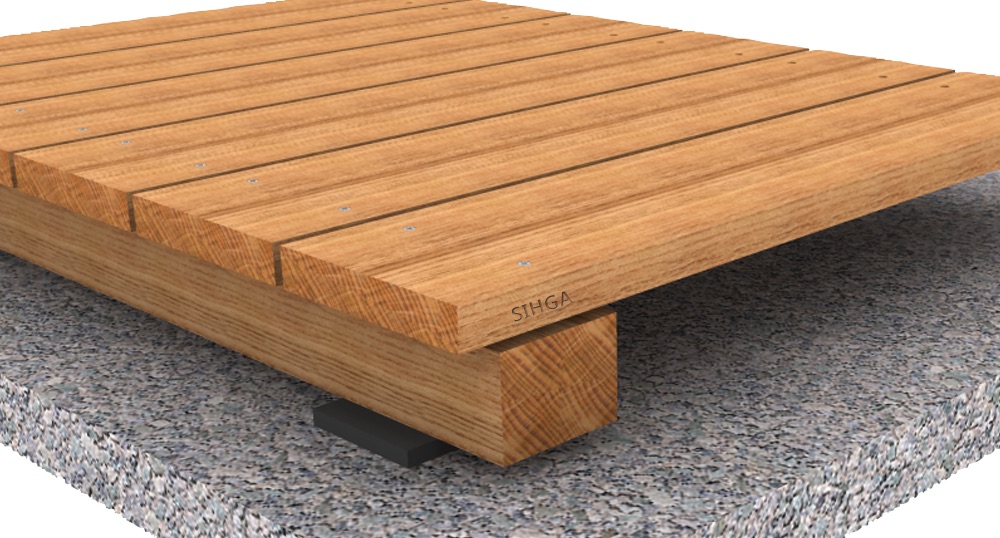

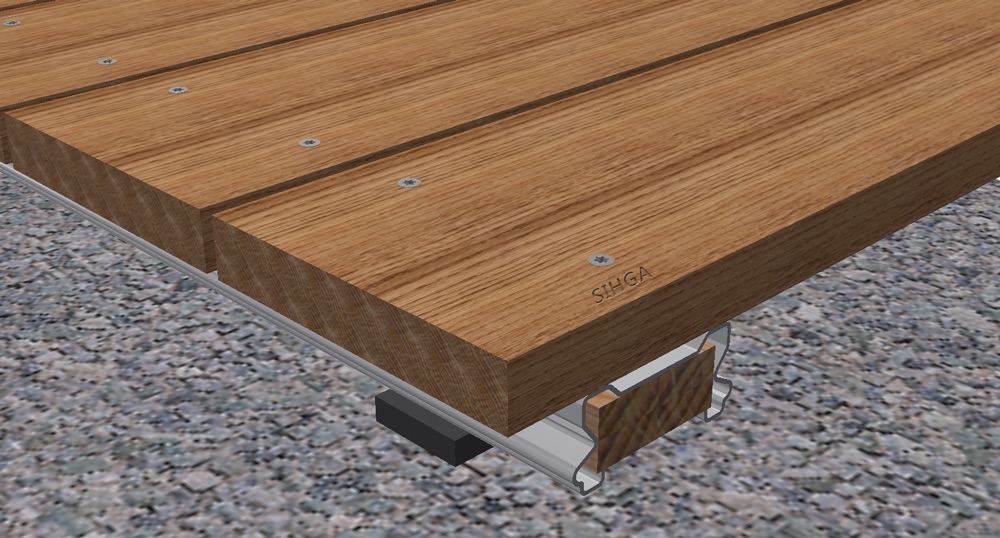

GUMO LG is for hight adjustment (spacer) between the decking substructure and foundation.APPLICATIONThe GUMO LG 80 x 40 mm pads are inserted between a terrace substructure made of wood-like material or aluminum and the ground surface and secured against slipping. Height compensation is achieved by stacking the pads.

The fleece under the terrace Application on a natural surface.By JustiFix® JV you avoid ground contact your woods.In addition, the water-permeable fibrous structure inhibits plant growth under your patio.

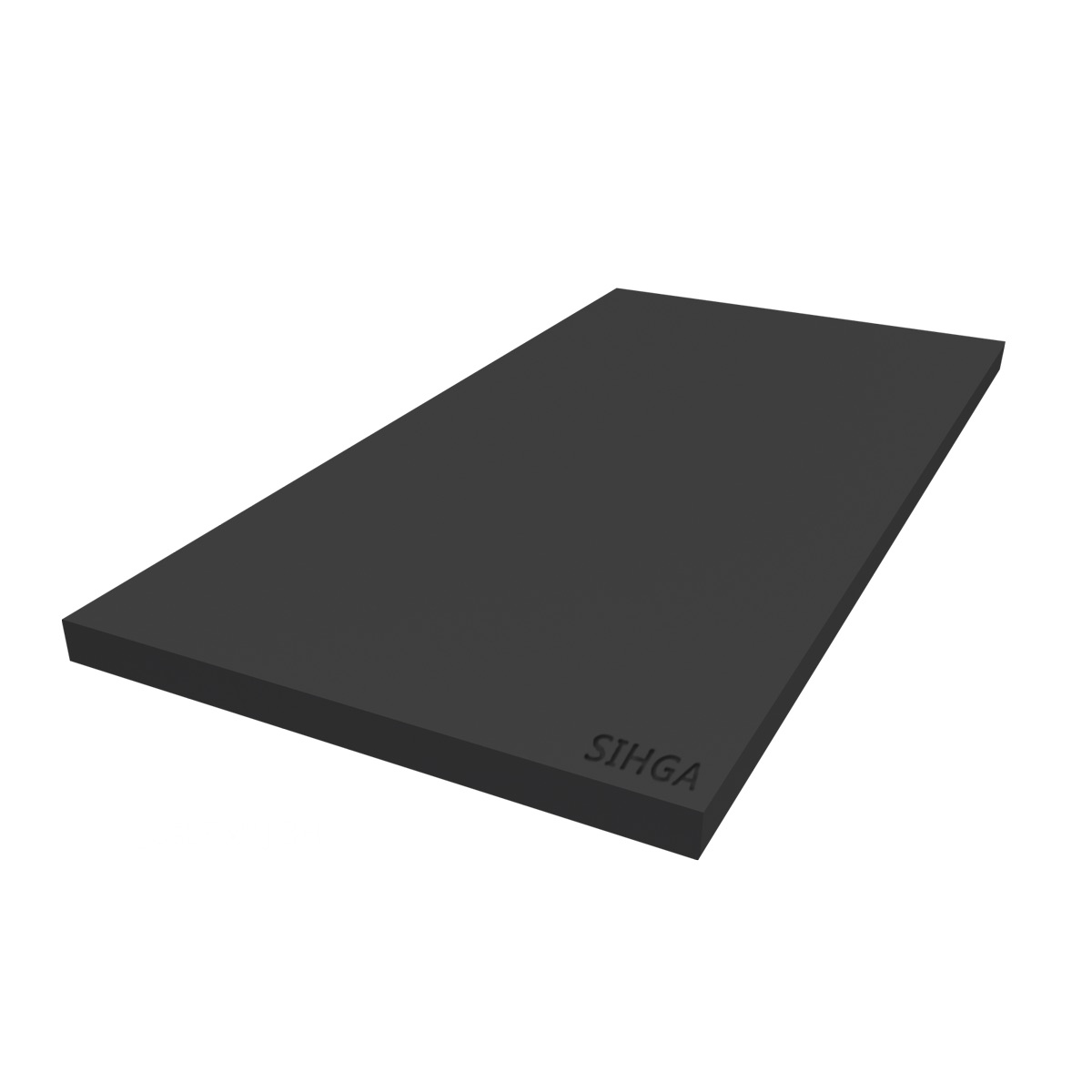

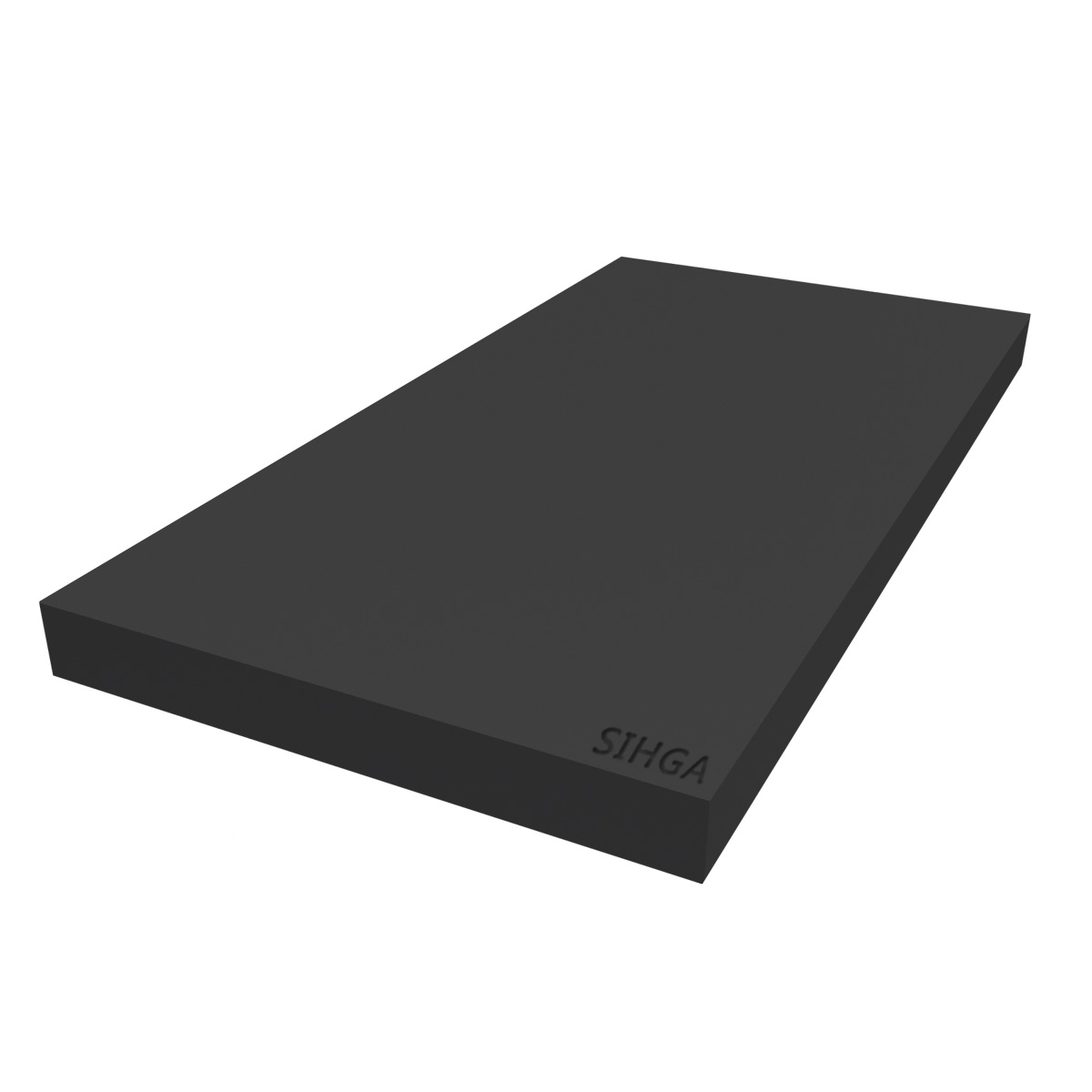

The simplest way to counteract moistureFor optimum ventilation between the substructure and foundation. Various pad thicknesses allow different floor levels to be evened out.Width: 30 mmLength: 80 mmHeight: 2, 5, 8 mm

For precise, simple and quick compensation of height differences up to 67 mm. The wedge shape of the TRIGO adjustment wedges guarantees easy and quick set-up of terrace substructures made of wood, wood-like materials or aluminium. Three adjustment wedges can compensate for differences in height from 14 mm to 67 mm. The design of the staggered teeth ensures a non-slip and deformation-free connection.  Overview: Height range: 14 - 67 mm Depending on the width o fthe substructureDimensions TRIGO T14: 93 mm x 46 mm | H 3,5 - 14 mmDimensions TRIGO T23: 152 mm x 46 mm | H 4 - 23 mmDimensions TRIGO T50: 152 mm x 46 mm | H 31 - 50 mmMaterial: PE Plastic Features: Adjustment wedges can be combined

Prevents direct contact of the supporting structure to the foundation. To eliminate waterlogging of JustiFix® II JM provides valuable assistance. At the same time it saves a lot of work, because the height adjustment can be carried out not only from below (with spanner SW 10) but also easily from the top (with a screwdriver). Thereby, the fast and accurate mainly level orientation of the substructure is guaranteed on the foundation.The JustiFix® II JM is articulated in the weatherproof Kunststoffdämmelement, whereby he adapts very well to existing unevenness and increases walking comfort on the terrace with its vibration damping effect.Application on solid groundJM 40: height adjustment 25 - 40 mmJM 60: height adjustment 25 - 60 mmJM 80: height adjustment 25 - 80 mmThe recommended load per JustiFix® II JM is 1.20 kN. The exhibit compressive strength of insulation must be at least. 0.05 N / mm2 (50 kPa).The amount needed per m2 depends on the dimension of the substructure, often 4 pieces per m2 are installed, for example, at 600 mm spacing of the substructure.

The fleece under the terrace Application on a natural surface.By JustiFix® JV you avoid ground contact your woods.In addition, the water-permeable fibrous structure inhibits plant growth under your patio.

GUMO LG is for hight adjustment (spacer) between the decking substructure and foundation.APPLICATIONThe GUMO LG 80 x 40 mm pads are inserted between a terrace substructure made of wood-like material or aluminum and the ground surface and secured against slipping. Height compensation is achieved by stacking the pads.

The fleece under the terrace Application on a natural surface.By JustiFix® JV you avoid ground contact your woods.In addition, the water-permeable fibrous structure inhibits plant growth under your patio.

The simplest way to counteract moistureFor optimum ventilation between the substructure and foundation. Various pad thicknesses allow different floor levels to be evened out.Width: 30 mmLength: 80 mmHeight: 2, 5, 8 mm

For precise, simple and quick compensation of height differences up to 67 mm. The wedge shape of the TRIGO adjustment wedges guarantees easy and quick set-up of terrace substructures made of wood, wood-like materials or aluminium. Three adjustment wedges can compensate for differences in height from 14 mm to 67 mm. The design of the staggered teeth ensures a non-slip and deformation-free connection.  Overview: Height range: 14 - 67 mm Depending on the width o fthe substructureDimensions TRIGO T14: 93 mm x 46 mm | H 3,5 - 14 mmDimensions TRIGO T23: 152 mm x 46 mm | H 4 - 23 mmDimensions TRIGO T50: 152 mm x 46 mm | H 31 - 50 mmMaterial: PE Plastic Features: Adjustment wedges can be combined

Prevents direct contact of the supporting structure to the foundation. To eliminate waterlogging of JustiFix® II JM provides valuable assistance. At the same time it saves a lot of work, because the height adjustment can be carried out not only from below (with spanner SW 10) but also easily from the top (with a screwdriver). Thereby, the fast and accurate mainly level orientation of the substructure is guaranteed on the foundation.The JustiFix® II JM is articulated in the weatherproof Kunststoffdämmelement, whereby he adapts very well to existing unevenness and increases walking comfort on the terrace with its vibration damping effect.Application on solid groundJM 40: height adjustment 25 - 40 mmJM 60: height adjustment 25 - 60 mmJM 80: height adjustment 25 - 80 mmThe recommended load per JustiFix® II JM is 1.20 kN. The exhibit compressive strength of insulation must be at least. 0.05 N / mm2 (50 kPa).The amount needed per m2 depends on the dimension of the substructure, often 4 pieces per m2 are installed, for example, at 600 mm spacing of the substructure.
