It is essential for the durability of terraces is that the planks (decking) are infringed neither at the top nor at the lateral edges - exactly these important conditions are met the DielenFix®. His height of 6 mm ensures perfect constructive wood protection to the substructure and ensures optimally ventilating tete terrace - an essential criterion for the life of terraces.

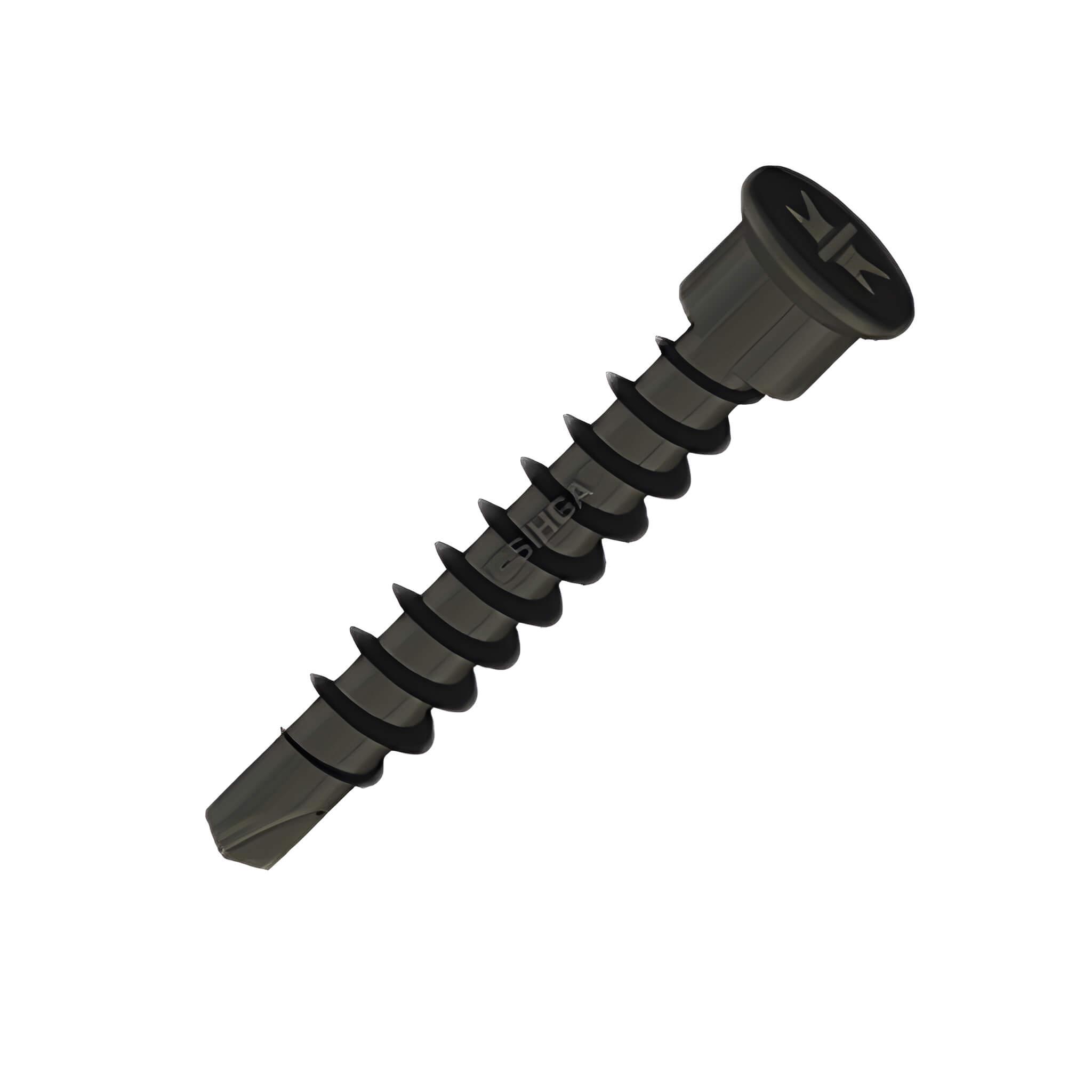

The enclosed SIHGA Bohrfix system screws for fastening to the substructure are specially manufactured without drilling for mounting on aluminum or wood and have a length of 29 mm.
SIHGA DielenFix quantity calculation:To determine the amount required, we recommend the following auxiliary formula:Total linear meters of the substructure / plank width including gap x 2Using the example of a terrace with a 15 meter substructure, hallway width 144 mm, 6 mm groove:15 / 0.150 x 2 = 200 pieces
The use:
fastened planks not visible screwed; produced, developed and patented in Austria
gives elegant appearance and safety of the screw
suitable for almost all types of wood
reduces errors on site upon delivery of the material; thereby bringing time savings and reduced storage costs
Made of SIHGAMID®, the fiberglass-reinforced plastic from the Space Exploration
secured more durable than stainless steel, even when säurehältigen woods; is extremely strong, heat, frost and UV-resistant; no material fatigue
Floorboards remain intact at all visible surfaces
the woods are screwed from below, which gives longer shelf life and prevents putrefaction and the direct influence of weather
like swelling and shrinkage of the wood from operations
reduces the crack and fracture behavior of wood in these natural processes
Choice of three screw lengths
Possible use for all common hallway strengths 19-40 mm
variable visible joint 0-15 mm, for each suitable builders
Height, material thickness 6 mm for optimum aeration and ensures optimum constructive wood protection
at DielenFix® II DF CS A4 screws are enclosed
time-saving, convenient, accurate and matching SIHGAFIX® prevents rust and rust and stainless steel A4 BohrFix® for saltwater and chlorine environment
Included SIHGAFIX® stainless, hardened stainless steel BohrFix® with drill bit and installation instructions
no rust, no tearing or rupture of the screws; time-saving, convenient, accurate, all accessories accompanies
SIHGA® TIP: MAGBIT® facilitates assembly
For optimum adaptation to the type of wood of the boards or on the weathering situation of DielenFix® is produced in different materials or equipped with different fastening screws:Type DielenFix® II DF incl. BohrFix® stainless steelType DielenFix® II DF CS incl. BohrFix® stainless steel A4Type DielenFix® DF incl. BohrFix® stainless steel
The UNIA system screw is used to fasten metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3 mm.The tip, which is designed as a drilling unit, ensures a reduced splitting effect and less surface tension.
Length: 17 - 47 mmDiameter: 4.2 mm and 4.8 mm Head: cylinder head Ø 5.8 mm Drill point: suitable for wood and aluminiumDrilling capacity: Aluminium with approx. 3 mm wall thickness Drive: TX 20Material: hardened stainless steel / stainless steel A4 1.4401with black surface coating
DESCRIPTIONUNIA is a stainless steel self-drilling screw with a cylindrical head shape for fastening metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3.0 mm.The drill tip, which is designed as a drilling unit, ensures a reduced splitting effect and reduces surface tensions e.g. with screw connections on the back in element construction.APPLICATIONFor fastening concealed fastening systems such as TIGA, DILA, SUPRO, PLATA, LIGO and ZONA.The suitability and compatibility of the UNIA system screws with the component to be connected and their substructure may have to be determined by the plank or facade strip manufacturer / supplier.MATERIAL1.4006 / X12Cr13 / AISI 410 hardened stainless steelOptionally with black surface coating [black zinc plated]
