Stainless steel
MOUNTS EXTERIOR WOOD PROFESSIONAL AND PERMANENTLY
In mounting pack or object pack incl. assembly instructions, pencil S1 and SIHGAFIX stainless steel.The protected L-GoFix® MS multistage head combines high pullout force with a very small head diameter.The plane head conclusion gives the area a clean, elegant appearance, thereby increasing the constructive wood protection. For softer woods such as Larch, Douglas fir, pine, is the L-GoFix® MS to blow up without pre-drilling, with no pre-sinking and without the wood, simple and clean screwed from above! For harder woods such as Tropical woods or thermo-modified wood should be pre-drilled with the TerrassenFix® countersink TFB / ES II.The special SIHGA® tip guarantees very quickly attached. The integrated milling splines on the shaft and the sliding coating ensure easy screwing. Sharp thread flanks provide optimum seating in wood. These features enable universal use, even in OSB the L-GoFix® MS optimal screw to. SIHGA® Tip: For optimum constructive wood protection and to reduce the shear on screws (by the swelling / shrinking behavior of the timbers), we recommend the use of TerrassenFix® II TF or KompeFix® II KF.
SIHGA GoFix MS II is ideal for outdoor use, in the case of pergolas or carports, which are not exposed to direct weathering. The SC 7 coating has a 10 times higher corrosion protection than conventional zinc plating.Your benefit:
Fixed wood on wood up to 500 mm, even OSB boards
Without pre-drilling and without pre-drilling is screwed
A special multi-stage head reduces the gap effect in the wood
Saves 50% of storage, combined with countersunk head and disk head
Transmits high forces, is nevertheless retractable and allows close-fitting screwing
Attaches pressure-resistant insulation materials for ridge insulation
Significantly increased corrosion protection, can be painted over
For applications in the corrosivity category C4-lang or C5-mittel
Special milling ribs on the shaft and sliding coating
Pre-drilling effect, easy insertion, low-noise SIHGA® screw tip
Quick assembly, easy-to-use and time-saving
Including SIHGAFIX®, Systemstift® and assembly instructions
Time-saving, practical, precise, complete accessories are packed; SIHGAFIX® also screws in deep grooves
SIHGA® MSZ wheel for diameter 8 mm
This ornamental disc MSZ increases the pulling force of the head further to 9 kN; Visually very nice and high traction
Positive appraisal for processing with impact wrenches
Saves time and provides security, even when working overhead
ETA European technical approval with external monitoring
Reliable, externally monitored values provide safety during processing and exclude quality fluctuations
fastens wood to steel without pre-drilling the steel part
Drill point with special shape and thread locking flanks made of hardened, rustproof stainless steelincluding SIHGAFIX® rust-free, system pen® and assembly instructions
Your benefit> Simply screw through steel up to 5 mm thick, up to quality S 355, in one operation> Fasten wood up to 90 mm to steel in one operation > attaches rust-free and is extremely break-proof> time-saving, practical, precise; all accessories are included> SIHGAFIX® rust-free prevents extraneous rust and also screws in deep grooves
Due to the swelling and shrinking behavior of wood, only substructure timbers may be attached to steel and only on this the top covering.
SIHGA® TIPIn case of applications in the pool area with timbers and with a high tannin content, we recommend using L-BohrFix® MB A4. For surface-flush rotation, fast and secure, we recommend TerrassenFix® Depth Limiter TTB.
fastens wood to wood without pre-drilling and without countersinkingreduces crack formation or splitting of the timbers, even board materials, saves work time, additional pre-drilling extends the life of the wood also attaches coverings made out of hard and thermo-woodcreates a perfect look, with these woods additional pre-drilling is recommended multi-stage head with small head diameterhigh constructive wood protection and refined surface as a result of the plane head special thread angle with sharp thread edgeshigh pull-out value SIHGA® point with special shapeguarantees fast setting of screws without splitting SIHGA® ribs on shaft and slip coatinglight, fast rotation and optimum fit in the wood are guaranteed made from hardened stainless steelrust-free fastening, extremely break-proof also available with black (SC 9 coating) and antique look (SC 11 coating)optimum on dark materials, or can be used for larch, Douglas fir and Bangkirai including SIHGAFIX® stainless steel, Systemstift® and installation instructionstime-saving, practical, precise, all accessories enclosed; SIHGAFIX® stainless steel prevents rust from external sources and also screws into deep grooves When using coatings such as oils, glazes and pre-greying, it is essential to consult the coating manufacturer. As a rule, the manufacturer specifies the minimum material quality of the binding agent. If the manufacturer is not known, we recommend material quality A4 (L-BohrFix® MB A4).L-GoFix® MS A2 made from A2 stainless steelstands out thanks to its good corrosion resistance and is best used in moderate, corrosive environmentsBecause of the material properties it is strongly advised to generally pre-drill the add-on part (screw diameter + 0.5 -1 mm). The substructure, due to the different bulk densities and moisture, also in conifers, should in most cases be pre-drilled over the entire thread length with Ø 3 mm. If in doubt, we recommend carrying out pretrials
The new Sihga® TeFix® screw can be screwed on cleanly on patios and facades without pre-drilling and countersinking.BENEFITS> fastens wood to wood without pre-drilling and countersinking> prevents cracking or splitting of the woods in almost all hardwoods and thermo-woods> Made from hardened, rustproof stainless steel> fastens rustproof and is extremely unbreakable> SIHGA® friction shaft with a special shape> pre-drill the board with 5 mm; the wood can swell and shrink> SIHGA® multi-stage head further developed> thanks to the extra thin head and sawtooth ribs, no displacement or chipping of the wood> in combination with KompeFix® II KF the perfect solution> increases the lifespan of the wood and the screw> including TEBIT® rustproof with holding function, Systemstift® and assembly instructionstime-saving, practical, precise, all accessories are included; TEBIT® rust-free holds the screw without a magnet and prevents extraneous rust
The world's only node connection, which can be completely prefabricated and thus site a quick and easy connection, similar to a conventional connector allows!
The HobaFix® HF must be loaded in four directions with high audited, static values. HobaFix® HF is in almost all areas of timber construction, regardless of the direction of the grain of the wood used and saves the user a wealth of other connecting means. The top fixing screw inserts the two parts of the HobaFix® HF to a node connecting together and simultaneously represents the protection against inadvertent release of the connector. The integrated Hoba coupling allows a further advantage in the Assembly -. The coercive and smooth, unifying the two identical parts. The incorporation can be carried out both visible (for shadow groove connections) and non-visible (countersunk).
OPTIMAL FOR FIXING OF FACADE FORMWORK (tongue and groove).
No pre-drilling the F-BohrFix® example is bolted simply and extremely clean. The SIHGA®Bohrspitze penetrates very quickly that special SIHGA® head shape allows mounting close to the edge without the timber to burst and the little decorative head can be easily and cleanly sink.IMPORTANT: Due to the tannic acid timber should be mounted outdoors exclusively with products made of stainless steel!
the original from SIHGA®the first Quadro attachment for use in cordless screwdrivers, hammer screwdrivers, chucks and bit holders
length 60 mm, 77 mmalso screws easily in deep grooves
also made from hardened stainless steelprevents rust from external sources occurring at the screw
vacuum ice-chill hardenedfor extreme high strength and long lifespan
precisely milled drive zoneresulting in a very accurate fit
made in GermanyGerman tested workmanship for reliable quality
colour-coding systemeach bit size is clear at first glance

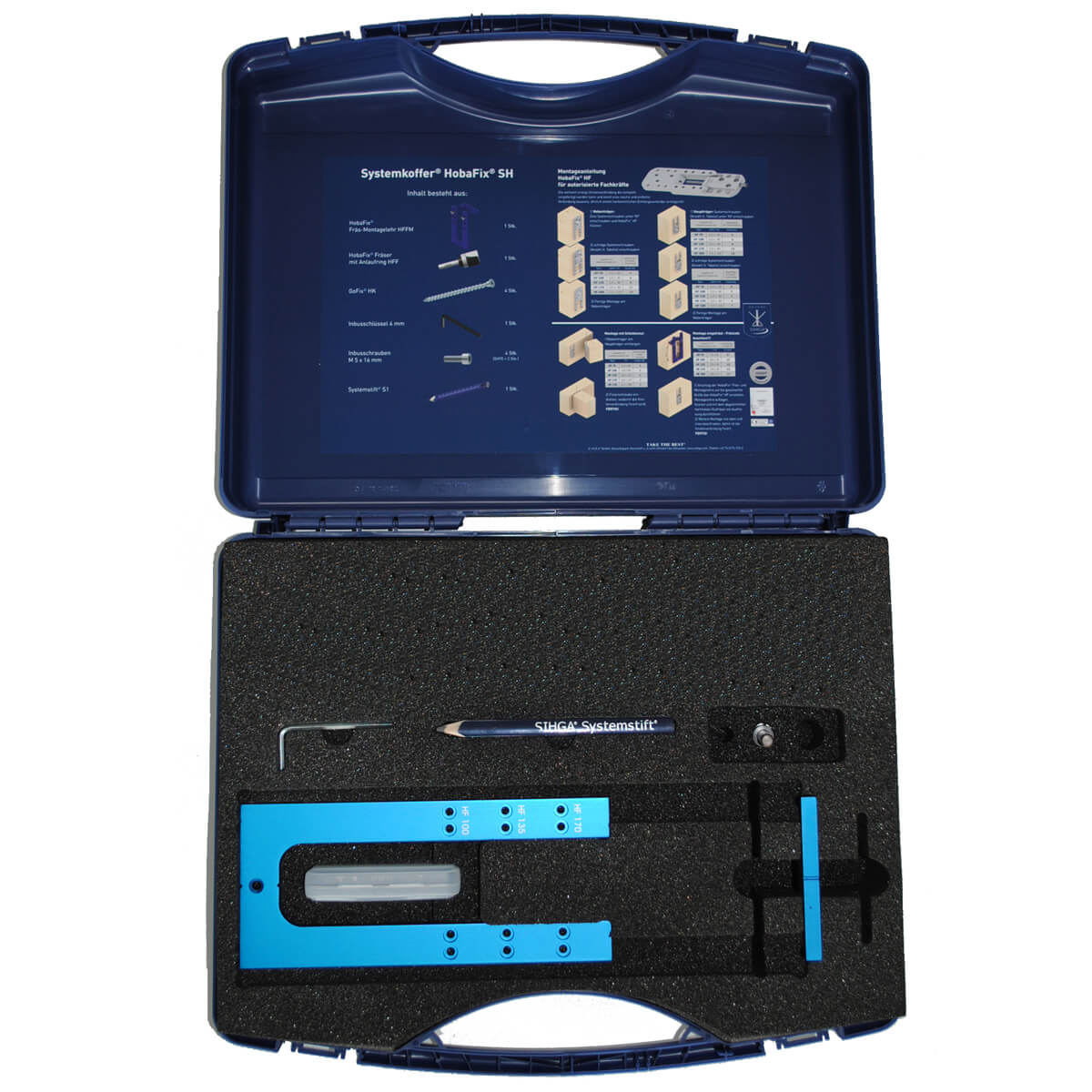

for all models HobaFix® HFthe professional assembly aid facilitates construction processes and saves working time, milling and assembly jig with all accessories are combined in a practical, complete and mobile way

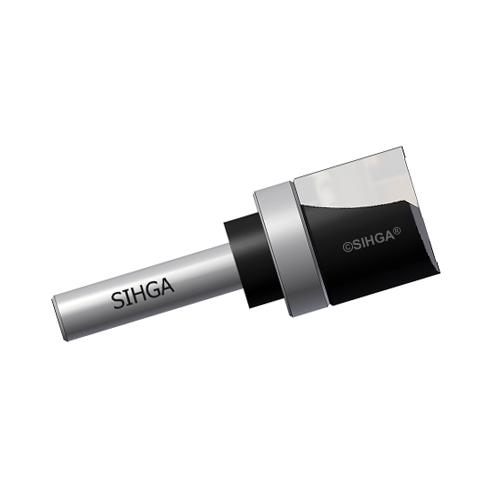

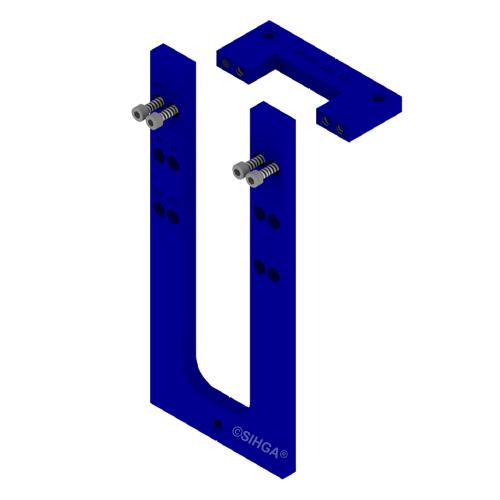

contains 1 HobaFix® milling assembly jig HFFM, 1 HobaFix® milling cutter with thrust ring HFF together with fastening screws, Allen key and System Pin®for efficient and precise assembly of the node connections
The new Sihga® TeFix® screw can be screwed on cleanly on patios and facades without pre-drilling and countersinking.BENEFITS> fastens wood to wood without pre-drilling and countersinking> prevents cracking or splitting of the woods in almost all hardwoods and thermo-woods> Made from hardened, rustproof stainless steel> fastens rustproof and is extremely unbreakable> SIHGA® friction shaft with a special shape> pre-drill the board with 5 mm; the wood can swell and shrink> SIHGA® multi-stage head further developed> thanks to the extra thin head and sawtooth ribs, no displacement or chipping of the wood> in combination with KompeFix® II KF the perfect solution> increases the lifespan of the wood and the screw> including TEBIT® rustproof with holding function, Systemstift® and assembly instructionstime-saving, practical, precise, all accessories are included; TEBIT® rust-free holds the screw without a magnet and prevents extraneous rust
The stainless mounting of all woods, also hard and thermo wood to aluminum. The geometry is fixed without pre-drilling.Your benefit
attached All specie on aluminum
for attachment to aluminum profiles of up to 4.5 mm wall thickness
extra long drill bit
fixed without pre-drilling
made of hardened stainless steel
mounted stainless, even with acid group containing woods and is extremely resistant to breakage
small head diameter of 8 mm
elegant appearance, chipless screw
Included SIHGAFIX® stainless, Systemstift® and assembly instructions
time-saving, practical, precise all accessories accompanies
SIHGAFIX® rust-preventing rust and screwed in deep grooves
Product safety in the future
SIHGA® TIPPTo prolong the life of wooden structures we recommend the use of KompeFix® and compliance with the design recommendations.
SIHGA® TEBIT® rust-free holds the screw without a magnet and prevents extraneous rust special bit with hold function the screws remain without holding on and without a magnet on the bit also enables assembly overhead and difficult to access saves time and money, especially with small screw dimensionsTEBIT® is included with Tefix®, GleitFix® GF and DielenFix® DF
The installation of the SIHGA HobaFix can be carried out both visible (for shadow groove connections) and non-visible (countersunk).
When visible installation eliminates the milling and the same doctrine is used as assembly jig.Simply adjust the stop of SIHGA milling and assembly jig to the desired size of SIHGA HobaFix, SIHGA hang up, fix and carry out the coordinated carbide Straight bits the milling the milling and assembly template.

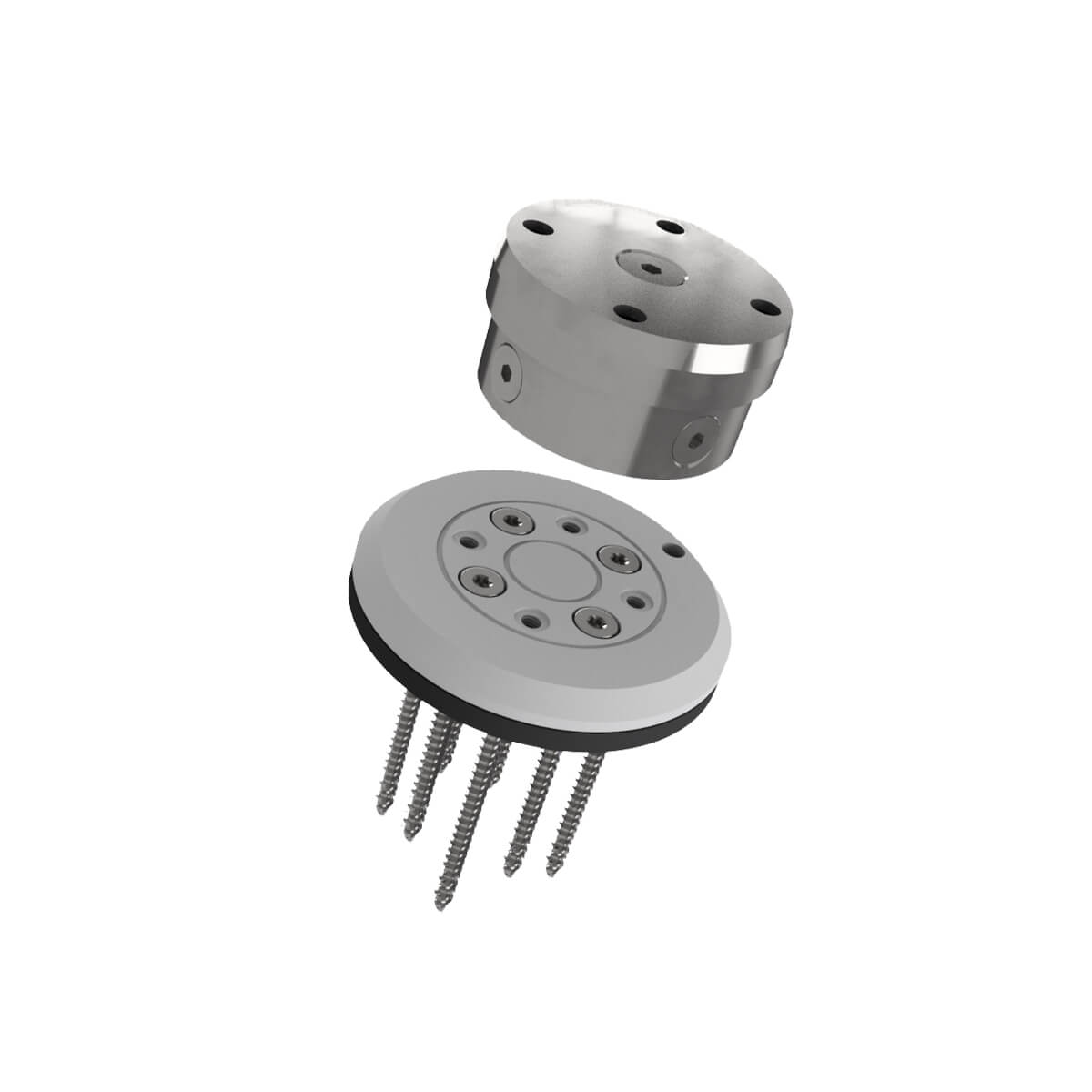

Fastening system for handrail posts on flat roof waterproofing
> Ideally suited for railings and privacy screens > Infinitely variable and easily accessible inclination adjustment up to 4 ° in all directions > Reinforcement of the pressing surface using GoFix® S + > Valve for leak testing > Can be combined with various seals > Seals are jammed > including SIHGAFIX®, GoFix® S +, as well as all seals Your benefit > quick, easy and safe assembly > offers great stability and flexural strength > The straight and aligned appearance of the posts without time-consuming adjustment > Use on wooden beams and solid wood ceilings, as well as CLT systems > Security of connection and sealing, system can be serviced > attached to PVC, EPDM and even sheet metal > Retrofitting in existing seals is also possible > time-saving, practical, precise, all accessories included Tip: use leak spray and air pump to check for leaks
Simply adjust the stop of SIHGA milling and assembly jig to the desired size of SIHGA HobaFix, SIHGA hang up, fix and carry out the coordinated carbide Straight bits the milling the milling and assembly template.
SIHGA® MEDIATHEK
Ideal for fences and screens. Quick, simple, straightforward and safe installation of fence posts.
When mounting fence posts or railings, fitters have to struggle with inclined foundations. In order to position the posts in a straight and aligned manner, compensating plates have so far been used. With the fastener Pfalu, Sihga is now launching a system that does not need any additional plates. A part of the attachment can be already pre-assembled on the end of the posts. The second part is anchored on site in the subsoil of wood or concrete. After assembly of Pfalu, the post can be adjusted up to four degrees in all directions by means of easily accessible adjusting screws. A tensioned tension rod inside ensures the required stability. Pfalu has been tested by Sihga for design loads and is approved for posts from 90 mm diameter.
fastens wood to wood without pre-drilling and without countersinkingreduces crack formation or splitting of the timbers, even board materials, saves work time, additional pre-drilling extends the life of the wood
also attaches coverings made out of hard and thermo-woodcreates a perfect look, with these woods additional pre-drilling is recommended
multi-stage head with small head diameterhigh constructive wood protection and refined surface as a result of the plane head
special thread angle with sharp thread edgeshigh pull-out value
SIHGA® point with special shapeguarantees fast setting of screws without splitting
SIHGA® ribs on shaft and slip coatinglight, fast rotation and optimum fit in the wood are guaranteed
made from hardened stainless steelrust-free fastening, extremely break-proof
also available with black (SC 9 coating) and antique look (SC 11 coating)optimum on dark materials, or can be used for larch, Douglas fir and Bangkirai
including SIHGAFIX® stainless steel, Systemstift® and installation instructionstime-saving, practical, precise, all accessories enclosed; SIHGAFIX® stainless steel prevents rust from external sources and also screws into deep grooves
When using coatings such as oils, glazes and pre-greying, it is essential to consult the coating manufacturer. As a rule, the manufacturer specifies the minimum material quality of the binding agent. If the manufacturer is not known, we recommend material quality A4 (L-BohrFix® MB A4).
L-GoFix® MS A2 made from A2 stainless steelstands out thanks to its good corrosion resistance and is best used in moderate, corrosive environments
Because of the material properties it is strongly advised to generally pre-drill the add-on part (screw diameter + 0.5 -1 mm). The substructure, due to the different bulk densities and moisture, also in conifers, should in most cases be pre-drilled over the entire thread length with Ø 3 mm. If in doubt, we recommend carrying out pretrials
