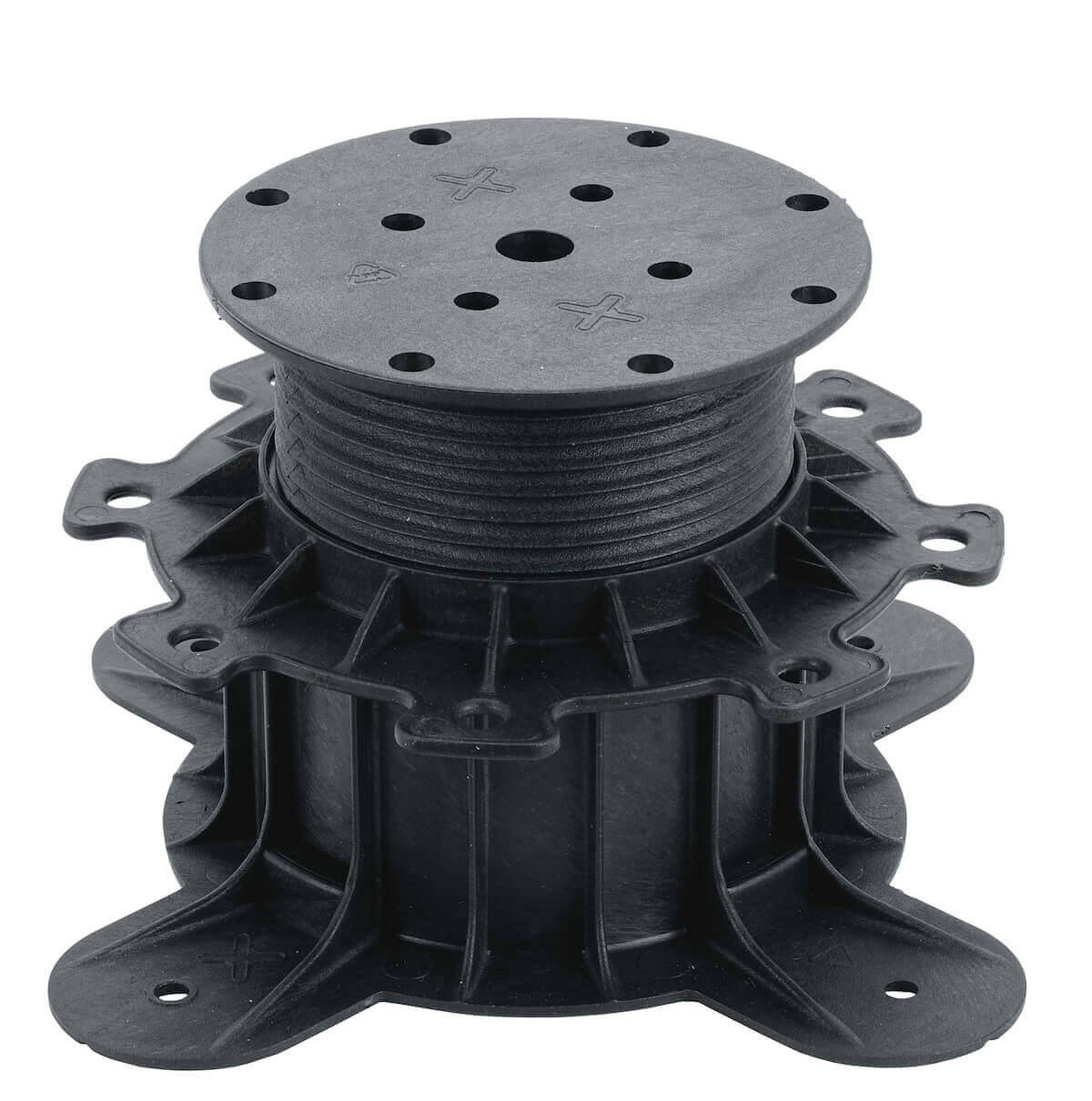

LIFTO K adjustable pedestal

Product nr	Options	Price
015213000	KU 50 - 80 mm für Holz oder Alu, 10 pc	€58.98
015213001	KS 50 - 80 mm für Steinplatten, 10 pc	€58.98
015214001	KU 50 - 80 mm für Holz oder Alu, 50 pcs	€255.00
015214002	KS 50 - 80 mm für Steinplatten, 50 pcs	€255.00
015313000	KU 80 - 140 mm für Holz oder Alu, 6 pcs	€43.80
015313001	KS 80 - 140 mm für Steinplatten, 6 pcs	€43.80
015315001	KU 80 - 140 mm für Holz oder Alu, 50 pcs	€300.00
015315002	KS 80 - 140 mm für Steinplatten, 50 pcs	€300.00

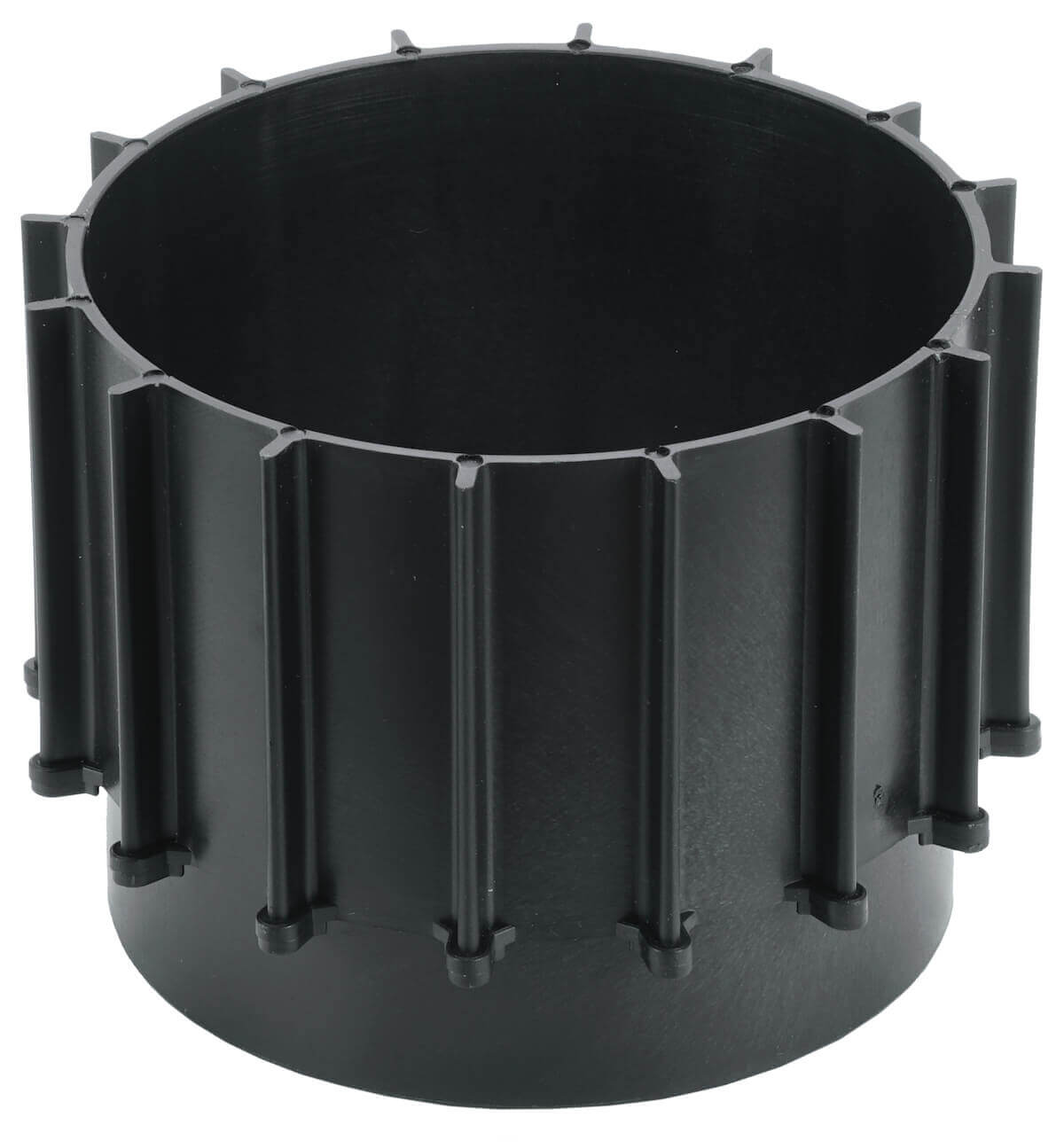

015412000	KA 60 mm Terrassenfuß-Adapter, 12 pcs	€31.68
015414000	KA 60 mm Terrassenfuß-Adapter, 126 pcs	€252.00

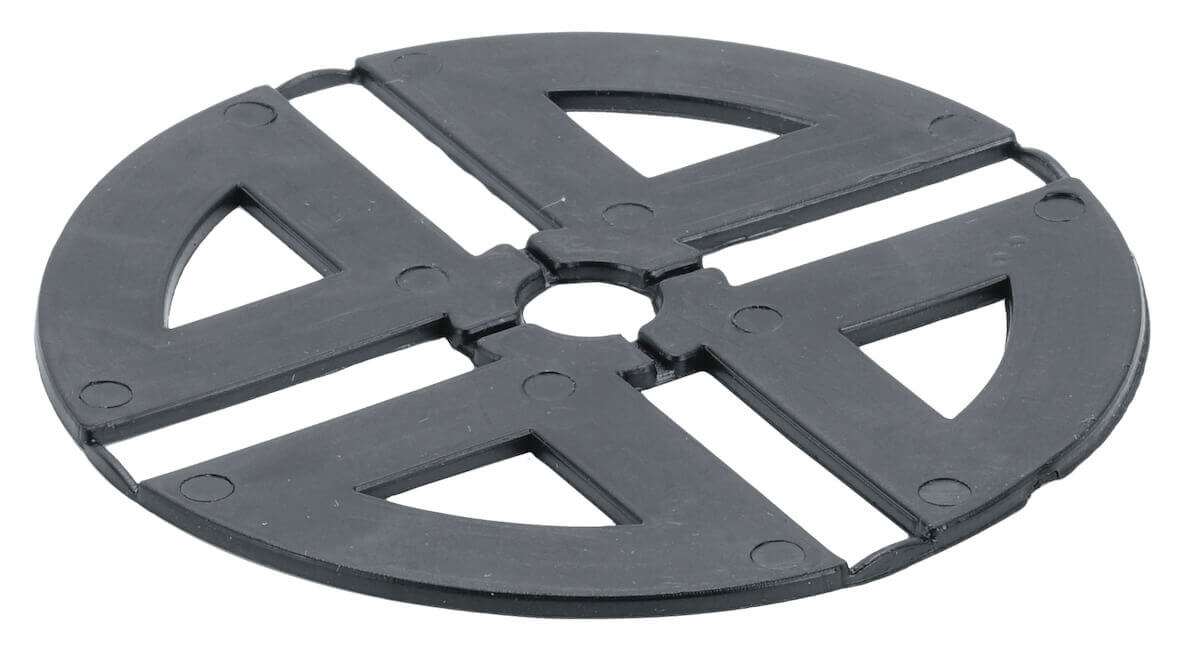

015704000	LIFTO R Regulier-Scheibe 1,3 mm, 50 pcs	€46.02
015804000	LIFTO R Regulier-Scheibe 2,0 mm, 50 pcs	€60.00

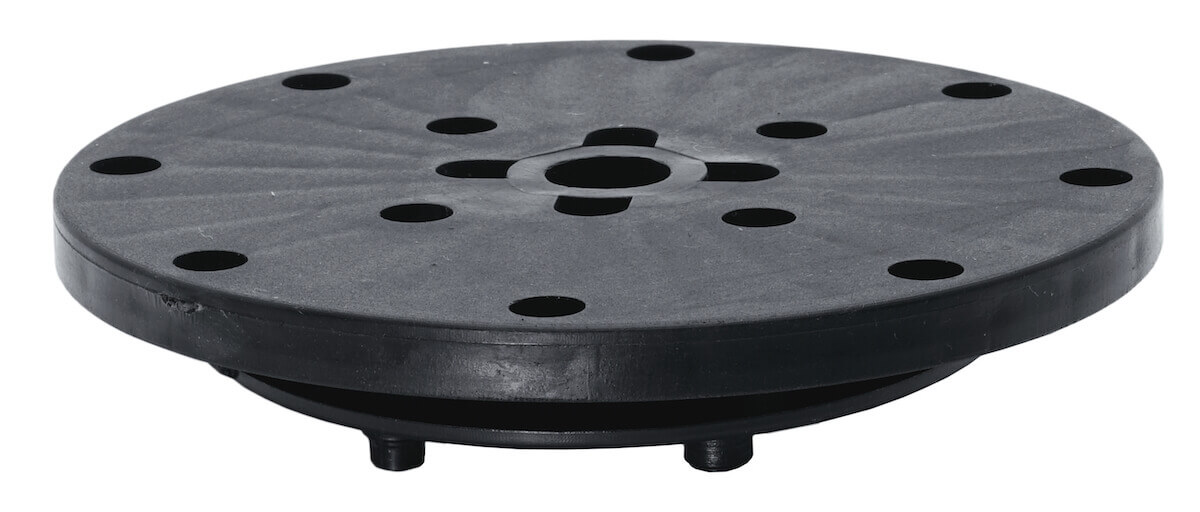

015913000	LIFTO N Niveauausgleich, 50 pcs	€145.02

Product information "LIFTO K adjustable pedestal"

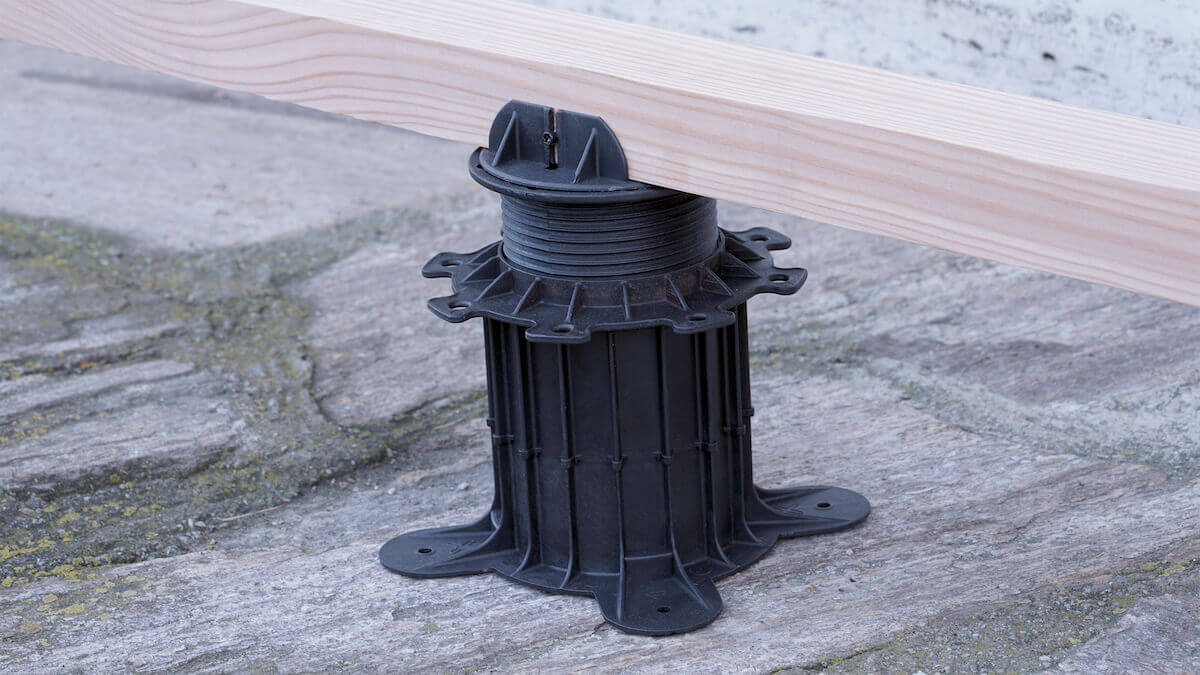

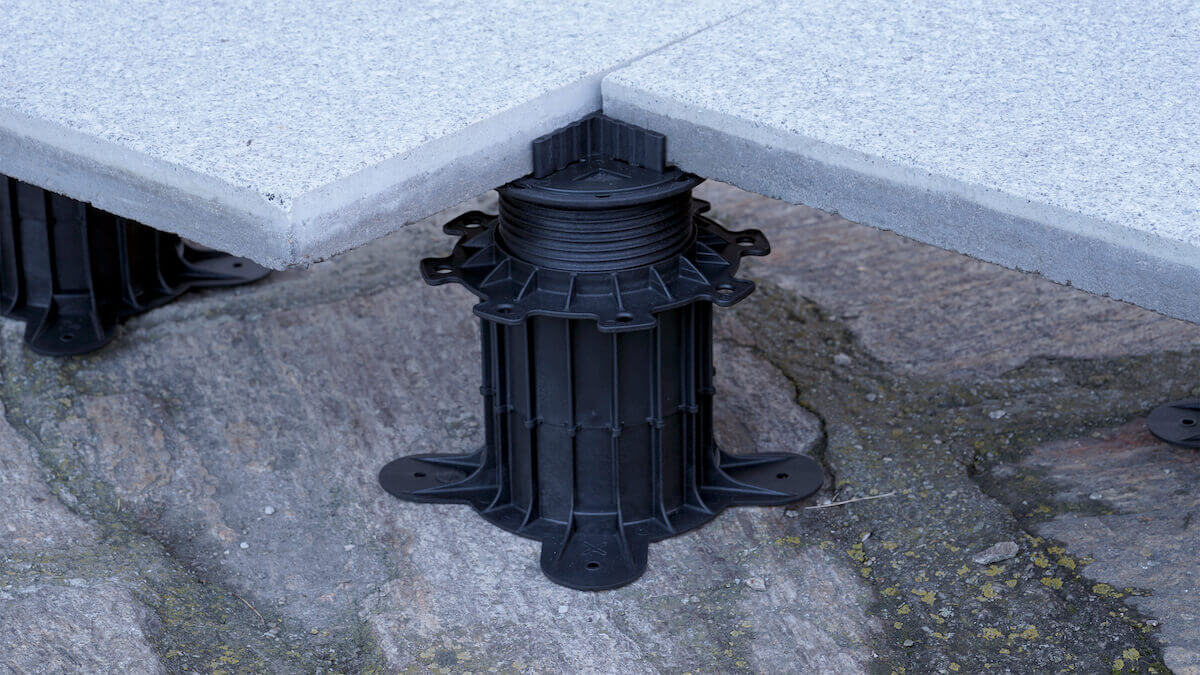

The adjustable X-base plate pedestal of the LIFTO K is sturdy and secure once in position. The height adjustment can be can be extended by simply inserting a adapter increasing the range permitting more flexibility during the installation process. Thanks to the adaptable components LIFTO K also permits the laying of patio tiles made of stone, concrete or ceramics.

Overview

Height range:	50 - 80 mm \| 80 - 140 mm. + Adapter
Adapter KA60:	+ 60 mm height adjustment
Dimensions:	LIFTO KU: Baseplate Ø 225 mm ǀ 90 mm support plate diameter LIFTO KS: Support plate Ø 120 mm ǀ Joint cross 3.2 mm
Material:	PP polypropylene Recycled black ǀ UV and weather resistant
Accessories:	UNIA 4.2 x 22 mm for fastening the pedestals to a wooden or aluminium substructure RELO A adapter for screwless fastening of the pedestals to RELO substructure joists GUMO LGD/LGA pressure distribution pad for flat roof / LGA for aluminium foil LIFTO N automatic three-dimensional 4 % levelling / installation height + 15 mm LIFTO R regulating disc for stone slabs - thickness 1.2 or 2.0 mm

YouTube Video "LIFTO K adjustable pedestal"

Downloads "LIFTO K adjustable pedestal"

LIFTO_K_Brochure_FIXINGGROUP_2024.pdf

LIFTO_K_Product_data_sheet_01.pdf
