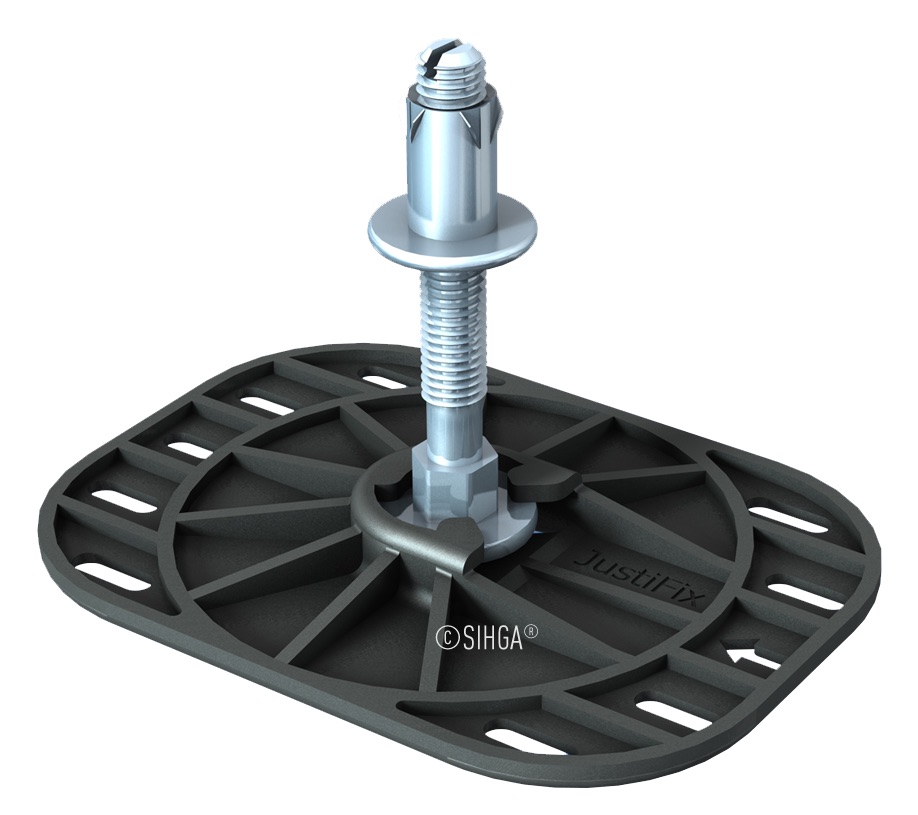

Product information "SIHGA® JustiFix® II JM"
Prevents direct contact of the supporting structure to the foundation.
To eliminate waterlogging of JustiFix® II JM provides valuable assistance. At the same time it saves a lot of work, because the height adjustment can be carried out not only from below (with spanner SW 10) but also easily from the top (with a screwdriver). Thereby, the fast and accurate mainly level orientation of the substructure is guaranteed on the foundation.
The JustiFix® II JM is articulated in the weatherproof Kunststoffdämmelement, whereby he adapts very well to existing unevenness and increases walking comfort on the terrace with its vibration damping effect.
Application on solid ground
JM 40: height adjustment 25 - 40 mm
JM 60: height adjustment 25 - 60 mm
JM 80: height adjustment 25 - 80 mm
The recommended load per JustiFix® II JM is 1.20 kN. The exhibit compressive strength of insulation must be at least. 0.05 N / mm2 (50 kPa).
The amount needed per m2 depends on the dimension of the substructure, often 4 pieces per m2 are installed, for example, at 600 mm spacing of the substructure.
