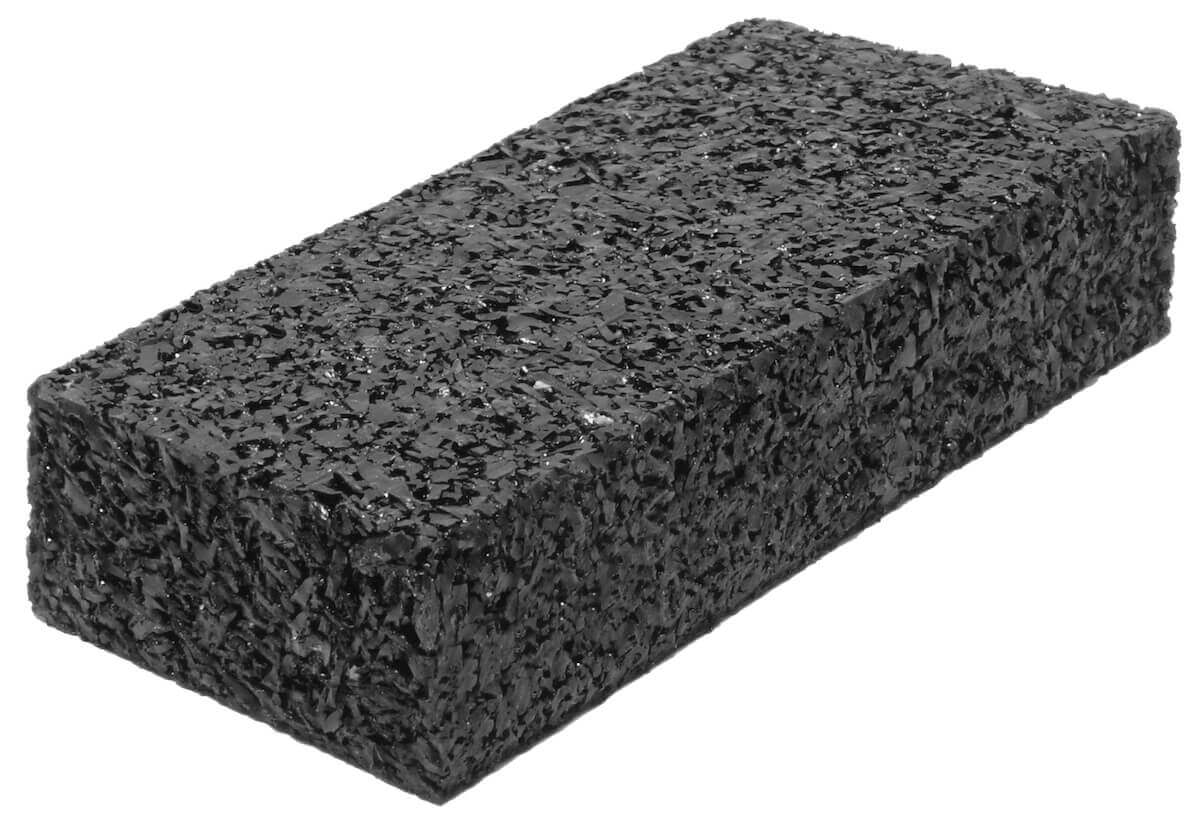

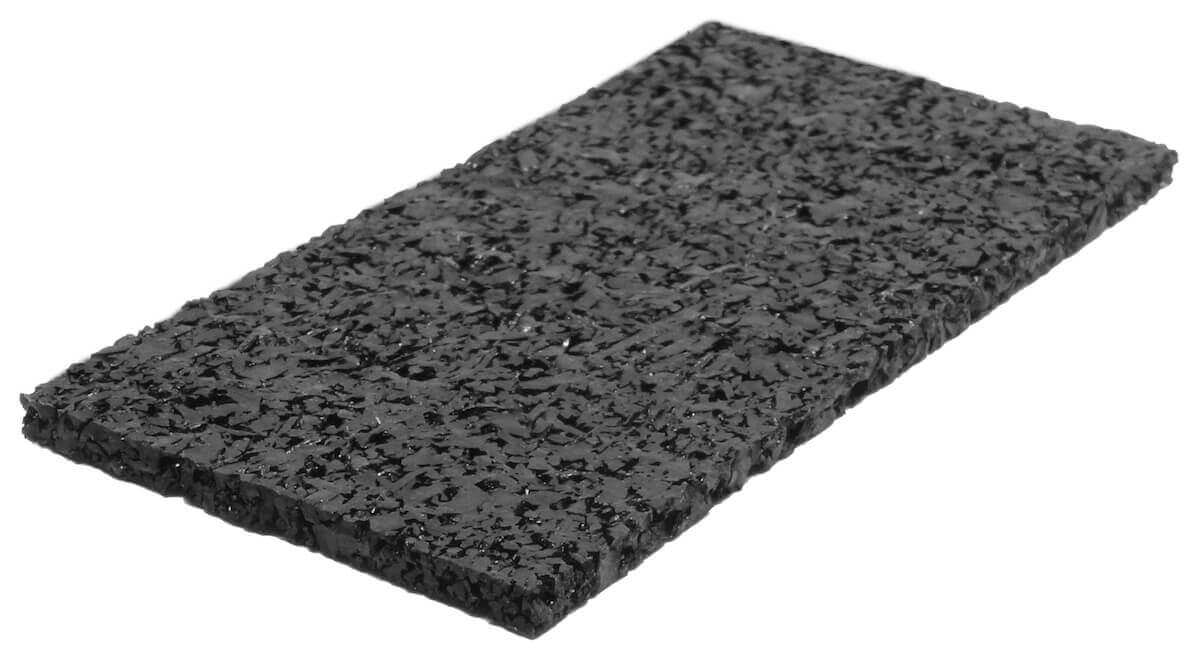

GUMO LG GRANULATE PADS

GUMO LGD 200 x 185 mm serve as a pressure distribution plate for LIFTO terrace feet.GUMO LGD are granulate-based underlays and pressure distributors for terrace substructures.

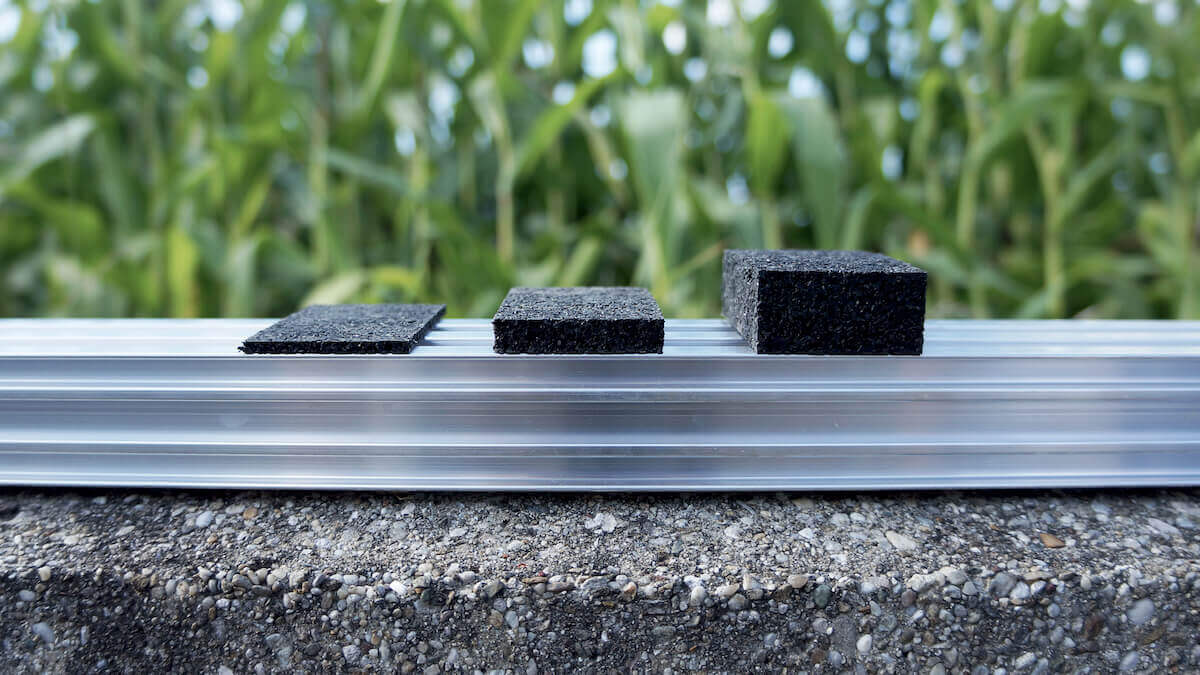

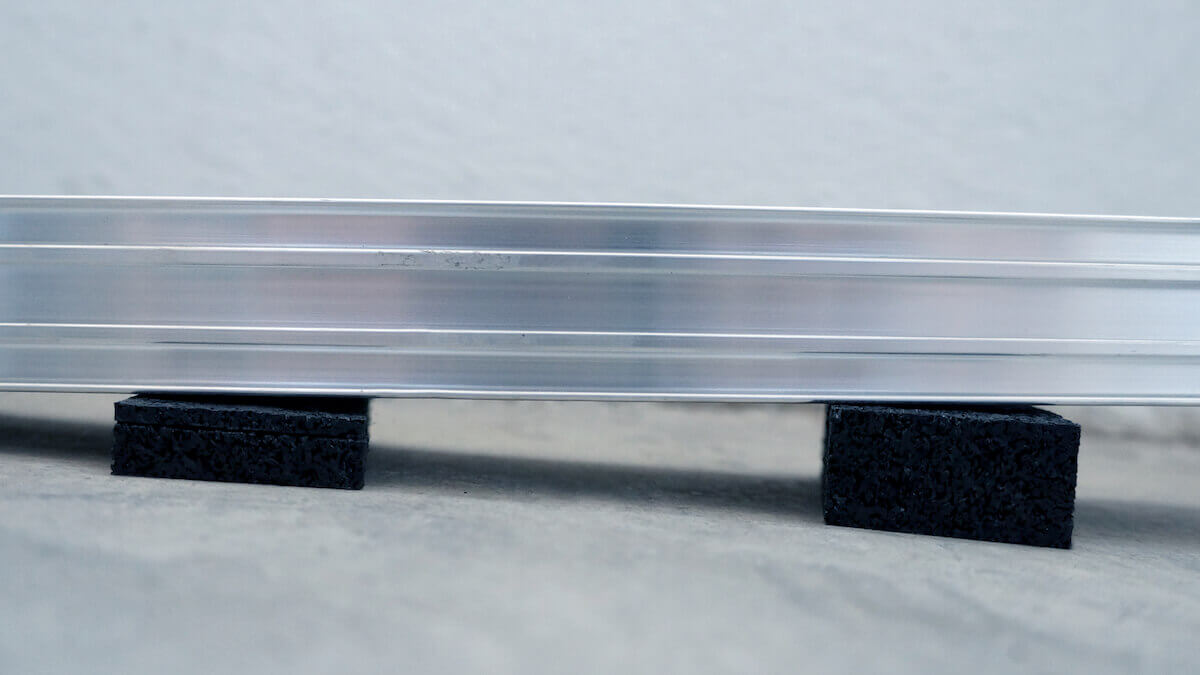

GUMO LG is for hight adjustment (spacer) between the decking substructure and foundation.APPLICATIONFor optimum ventilation between the substructure and foundation. Various pad thicknesses allow different floor levels to be evened out.

The simplest way to counteract moistureFor optimum ventilation between the substructure and foundation. Various pad thicknesses allow different floor levels to be evened out.Width: 30 mmLength: 80 mmHeight: 2, 5, 8 mm

For precise, simple and quick compensation of height differences up to 67 mm. The wedge shape of the TRIGO adjustment wedges guarantees easy and quick set-up of terrace substructures made of wood, wood-like materials or aluminium. Three adjustment wedges can compensate for differences in height from 14 mm to 67 mm. The design of the staggered teeth ensures a non-slip and deformation-free connection.  Overview: Height range: 14 - 67 mm Depending on the width o fthe substructureDimensions TRIGO T14: 93 mm x 46 mm | H 3,5 - 14 mmDimensions TRIGO T23: 152 mm x 46 mm | H 4 - 23 mmDimensions TRIGO T50: 152 mm x 46 mm | H 31 - 50 mmMaterial: PE Plastic Features: Adjustment wedges can be combined

Prevents direct contact of the substructure to the foundation Since the direct contact of the substructure is a terrace with soil or foundation to be avoided, the JustiFix® J provides indispensable support, especially when only low installation heights for the constructive wood protection exist.Using the J JustiFix® the waterlogging is prohibited under the terrace and ensuring good ventilation.By producing high-quality EDPM special rubber of JustiFix® J remains dimensionally stable even when exposed to heat, frost and UV influences! Simultaneously, the walking comfort is increased by the vibration damping effect!For the easy level adjustment between wood substructure and foundation of JustiFix® J is manufactured in three different material thicknesses.JustiFix® J is simply placed under the substructure and is arbitrarily stackable.
