SIHGA® GoFix® MS II

SIHGA_GoFix_MS_II
SIHGA Montagepack
Technische Daten GoFix MS II 10 mm
Technische Daten GoFix MS II 8 mm
Technische Daten GoFix MS II 6 mm
Technische Daten GoFix MS II 4 - 5 mm
SIHGA_GoFix_MS_II
SIHGA Montagepack

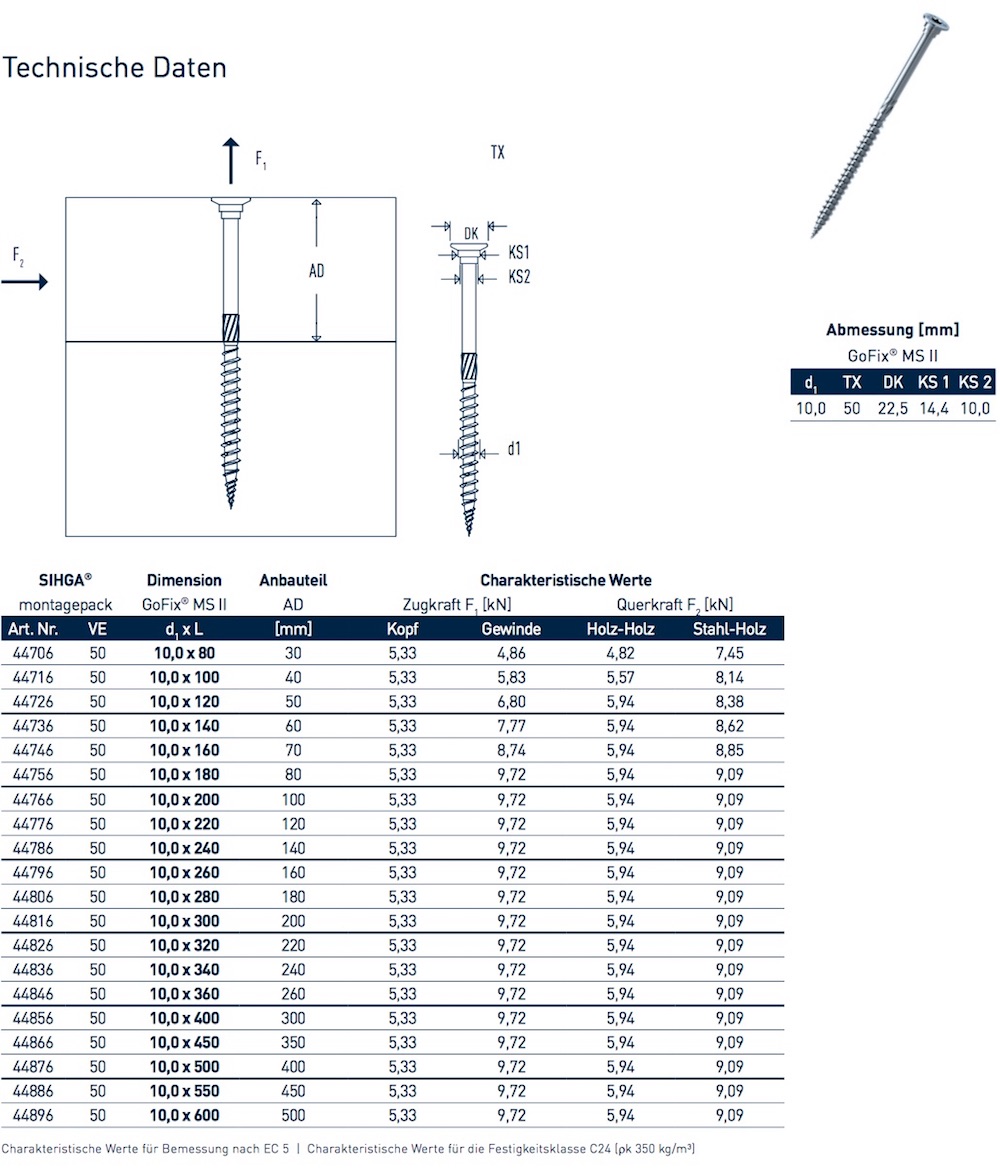

Technische Daten GoFix MS II 10 mm
Technische Daten GoFix MS II 8 mm
Technische Daten GoFix MS II 6 mm
Technische Daten GoFix MS II 4 - 5 mm

€18.42*

Content: 100 unit (€0.18* / 1 unit)

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

GoFix MS II diameter ∅
GoFix MS II length in mm
GoFix MS II system packaging
pack
Product number: 44406
Product nr Options Price
SIHGA® GoFix® MS II 4,0 x, 30 mm, Minimontagepack 44052 4,0 x, 30 mm, Minimontagepack €19.68
SIHGA® GoFix® MS II 4,0 x, 30 mm, Montagepack 44056 4,0 x, 30 mm, Montagepack €43.80
SIHGA® GoFix® MS II 4,0 x, 35 mm, Minimontagepack 44062 4,0 x, 35 mm, Minimontagepack €20.22
SIHGA® GoFix® MS II 4,0 x, 35 mm, Montagepack 44066 4,0 x, 35 mm, Montagepack €45.00
SIHGA® GoFix® MS II 4,0 x, 40 mm, Minimontagepack 44072 4,0 x, 40 mm, Minimontagepack €21.84
SIHGA® GoFix® MS II 4,0 x, 40 mm, Montagepack 44076 4,0 x, 40 mm, Montagepack €47.70
SIHGA® GoFix® MS II 4,0 x, 45 mm, Minimontagepack 44082 4,0 x, 45 mm, Minimontagepack €23.58
SIHGA® GoFix® MS II 4,0 x, 45 mm, Montagepack 44086 4,0 x, 45 mm, Montagepack €52.68
SIHGA® GoFix® MS II 4,0 x, 50 mm, Minimontagepack 44092 4,0 x, 50 mm, Minimontagepack €25.02
SIHGA® GoFix® MS II 4,0 x, 50 mm, Montagepack 44096 4,0 x, 50 mm, Montagepack €55.38
SIHGA® GoFix® MS II 4,0 x, 60 mm, Minimontagepack 44102 4,0 x, 60 mm, Minimontagepack €29.10
SIHGA® GoFix® MS II 4,0 x, 60 mm, Montagepack 44106 4,0 x, 60 mm, Montagepack €63.60
SIHGA® GoFix® MS II 4,5 x, 50 mm, Minimontagepack 44222 4,5 x, 50 mm, Minimontagepack €22.44
SIHGA® GoFix® MS II 4,5 x, 50 mm, Montagepack 44226 4,5 x, 50 mm, Montagepack €52.68
SIHGA® GoFix® MS II 4,5 x, 60 mm, Minimontagepack 44232 4,5 x, 60 mm, Minimontagepack €26.46
SIHGA® GoFix® MS II 4,5 x, 60 mm, Montagepack 44236 4,5 x, 60 mm, Montagepack €62.52
SIHGA® GoFix® MS II 4,5 x, 70 mm, Minimontagepack 44242 4,5 x, 70 mm, Minimontagepack €30.30
SIHGA® GoFix® MS II 4,5 x, 70 mm, Montagepack 44246 4,5 x, 70 mm, Montagepack €53.34
SIHGA® GoFix® MS II 5,0 x, 50 mm, Minimontagepack 44312 5,0 x, 50 mm, Minimontagepack €19.20
SIHGA® GoFix® MS II 5,0 x, 50 mm, Montagepack 44316 5,0 x, 50 mm, Montagepack €34.32
SIHGA® GoFix® MS II 5,0 x, 60 mm, Minimontagepack 44322 5,0 x, 60 mm, Minimontagepack €22.44
SIHGA® GoFix® MS II 5,0 x, 60 mm, Montagepack 44326 5,0 x, 60 mm, Montagepack €39.00
SIHGA® GoFix® MS II 5,0 x, 70 mm, Minimontagepack 44332 5,0 x, 70 mm, Minimontagepack €25.02
SIHGA® GoFix® MS II 5,0 x, 70 mm, Montagepack 44336 5,0 x, 70 mm, Montagepack €43.80
SIHGA® GoFix® MS II 5,0 x, 80 mm, Minimontagepack 44342 5,0 x, 80 mm, Minimontagepack €29.16
SIHGA® GoFix® MS II 5,0 x, 80 mm, Montagepack 44346 5,0 x, 80 mm, Montagepack €51.30
SIHGA® GoFix® MS II 5,0 x, 90 mm, Montagepack 44356 5,0 x, 90 mm, Montagepack €59.88
SIHGA® GoFix® MS II 5,0 x, 100 mm, Montagepack 44366 5,0 x, 100 mm, Montagepack €68.40
SIHGA® GoFix® MS II 5,0 x, 120 mm, Montagepack 44376 5,0 x, 120 mm, Montagepack €76.68
SIHGA® GoFix® MS II 6,0 x, 70 mm, Montagepack 44406 6,0 x, 70 mm, Montagepack €18.42
SIHGA® GoFix® MS II 6,0 x, 80 mm, Montagepack 44416 6,0 x, 80 mm, Montagepack €19.32
SIHGA® GoFix® MS II 6,0 x, 90 mm, Montagepack 44426 6,0 x, 90 mm, Montagepack €21.48
SIHGA® GoFix® MS II 6,0 x, 100 mm, Montagepack 44436 6,0 x, 100 mm, Montagepack €23.28
SIHGA® GoFix® MS II 6,0 x, 120 mm, Montagepack 44446 6,0 x, 120 mm, Montagepack €26.46
SIHGA® GoFix® MS II 6,0 x, 140 mm, Montagepack 44456 6,0 x, 140 mm, Montagepack €30.18
SIHGA® GoFix® MS II 6,0 x, 160 mm, Montagepack 44466 6,0 x, 160 mm, Montagepack €38.82
SIHGA® GoFix® MS II 6,0 x, 180 mm, Montagepack 44476 6,0 x, 180 mm, Montagepack €48.48
SIHGA® GoFix® MS II 6,0 x, 200 mm, Montagepack 44486 6,0 x, 200 mm, Montagepack €54.42
SIHGA® GoFix® MS II 8,0 x, 80 mm, Montagepack 44506 8,0 x, 80 mm, Montagepack €23.28
SIHGA® GoFix® MS II 8,0 x, 100 mm, Montagepack 44516 8,0 x, 100 mm, Montagepack €29.16
SIHGA® GoFix® MS II 8,0 x, 120 mm, Montagepack 44526 8,0 x, 120 mm, Montagepack €34.86
SIHGA® GoFix® MS II 8,0 x, 140 mm, Montagepack 44536 8,0 x, 140 mm, Montagepack €40.62
SIHGA® GoFix® MS II 8,0 x, 160 mm, Montagepack 44546 8,0 x, 160 mm, Montagepack €46.80
SIHGA® GoFix® MS II 8,0 x, 180 mm, Montagepack 44556 8,0 x, 180 mm, Montagepack €60.12
SIHGA® GoFix® MS II 8,0 x, 200 mm, Montagepack 44566 8,0 x, 200 mm, Montagepack €65.70
SIHGA® GoFix® MS II 8,0 x, 220 mm, Montagepack 44576 8,0 x, 220 mm, Montagepack €80.70
SIHGA® GoFix® MS II 8,0 x, 240 mm, Montagepack 44586 8,0 x, 240 mm, Montagepack €85.86
SIHGA® GoFix® MS II 8,0 x, 260 mm, Montagepack 44596 8,0 x, 260 mm, Montagepack €98.58
SIHGA® GoFix® MS II 8,0 x, 280 mm, Montagepack 44606 8,0 x, 280 mm, Montagepack €112.44
SIHGA® GoFix® MS II 8,0 x, 300 mm, Montagepack 44616 8,0 x, 300 mm, Montagepack €122.64
SIHGA® GoFix® MS II 8,0 x, 320 mm, Montagepack 44626 8,0 x, 320 mm, Montagepack €142.86
SIHGA® GoFix® MS II 8,0 x, 340 mm, Montagepack 44636 8,0 x, 340 mm, Montagepack €155.22
SIHGA® GoFix® MS II 8,0 x, 360 mm, Montagepack 44646 8,0 x, 360 mm, Montagepack €162.84
SIHGA® GoFix® MS II 8,0 x, 380 mm, Montagepack 44656 8,0 x, 380 mm, Montagepack €174.24
SIHGA® GoFix® MS II 8,0 x, 400 mm, Montagepack 44666 8,0 x, 400 mm, Montagepack €188.16
SIHGA® GoFix® MS II 8,0 x, 450 mm, Montagepack 44676 8,0 x, 450 mm, Montagepack €256.26
SIHGA® GoFix® MS II 8,0 x, 500 mm, Montagepack 44686 8,0 x, 500 mm, Montagepack €290.46
SIHGA® GoFix® MS II 10,0 x, 80 mm, Montagepack 44706 10,0 x, 80 mm, Montagepack €27.12
SIHGA® GoFix® MS II 10,0 x, 100 mm, Montagepack 44716 10,0 x, 100 mm, Montagepack €31.08
SIHGA® GoFix® MS II 10,0 x, 120 mm, Montagepack 44726 10,0 x, 120 mm, Montagepack €36.60
SIHGA® GoFix® MS II 10,0 x, 140 mm, Montagepack 44736 10,0 x, 140 mm, Montagepack €44.70
SIHGA® GoFix® MS II 10,0 x, 160 mm, Montagepack 44746 10,0 x, 160 mm, Montagepack €54.42
SIHGA® GoFix® MS II 10,0 x, 180 mm, Montagepack 44756 10,0 x, 180 mm, Montagepack €55.32
SIHGA® GoFix® MS II 10,0 x, 200 mm, Montagepack 44766 10,0 x, 200 mm, Montagepack €69.30
SIHGA® GoFix® MS II 10,0 x, 220 mm, Montagepack 44776 10,0 x, 220 mm, Montagepack €80.70
SIHGA® GoFix® MS II 10,0 x, 240 mm, Montagepack 44786 10,0 x, 240 mm, Montagepack €92.10
SIHGA® GoFix® MS II 10,0 x, 260 mm, Montagepack 44796 10,0 x, 260 mm, Montagepack €100.92
SIHGA® GoFix® MS II 10,0 x, 280 mm, Montagepack 44806 10,0 x, 280 mm, Montagepack €112.44
SIHGA® GoFix® MS II 10,0 x, 300 mm, Montagepack 44816 10,0 x, 300 mm, Montagepack €120.12
SIHGA® GoFix® MS II 10,0 x, 320 mm, Montagepack 44826 10,0 x, 320 mm, Montagepack €139.08
SIHGA® GoFix® MS II 10,0 x, 340 mm, Montagepack 44836 10,0 x, 340 mm, Montagepack €151.68
SIHGA® GoFix® MS II 10,0 x, 360 mm, Montagepack 44846 10,0 x, 360 mm, Montagepack €162.84
SIHGA® GoFix® MS II 10,0 x, 400 mm, Montagepack 44856 10,0 x, 400 mm, Montagepack €185.58
SIHGA® GoFix® MS II 10,0 x, 450 mm, Montagepack 44866 10,0 x, 450 mm, Montagepack €243.90
SIHGA® GoFix® MS II 10,0 x, 500 mm, Montagepack 44876 10,0 x, 500 mm, Montagepack €267.18
Product information "SIHGA® GoFix® MS II"

SIHGA GoFix MS II is ideal for outdoor use, in the case of pergolas or carports, which are not exposed to direct weathering. The SC 7 coating has a 10 times higher corrosion protection than conventional zinc plating.

Your benefit:

  •     Fixed wood on wood up to 500 mm, even OSB boards
  •     Without pre-drilling and without pre-drilling is screwed
  •     A special multi-stage head reduces the gap effect in the wood
  •     Saves 50% of storage, combined with countersunk head and disk head
  •     Transmits high forces, is nevertheless retractable and allows close-fitting screwing
  •     Attaches pressure-resistant insulation materials for ridge insulation
  •     Significantly increased corrosion protection, can be painted over
  •     For applications in the corrosivity category C4-lang or C5-mittel
  •     Special milling ribs on the shaft and sliding coating
  •     Pre-drilling effect, easy insertion, low-noise SIHGA® screw tip
  •     Quick assembly, easy-to-use and time-saving
  •     Including SIHGAFIX®, Systemstift® and assembly instructions
  •     Time-saving, practical, precise, complete accessories are packed; SIHGAFIX® also screws in deep grooves
  •     SIHGA® MSZ wheel for diameter 8 mm
  •     This ornamental disc MSZ increases the pulling force of the head further to 9 kN; Visually very nice and high traction
  •     Positive appraisal for processing with impact wrenches
  •     Saves time and provides security, even when working overhead
  •     ETA European technical approval with external monitoring
  •     Reliable, externally monitored values ​​provide safety during processing and exclude quality fluctuations
