SIHGA® GleitFix® AE

€4.20*

Content: 1 set

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

GleitFix screw quality

stainless steel

stainless steel A4

screw length

17 mm

22 mm

28 mm

GleitFix AE system packaging

1 set incl. screws

24 pc installation pack

set

Product number: 34626.1

Product nr	Options	Price
34626	stainless steel, 17 mm, 24 pc installation pack	€63.36
34626.1	stainless steel, 17 mm, 1 set incl. screws	€4.20
34656	stainless steel, 22 mm, 24 pc installation pack	€66.36
34656.1	stainless steel, 22 mm, 1 set incl. screws	€4.44
34686	stainless steel, 28 mm, 24 pc installation pack	€69.30
34686.1	stainless steel, 28 mm, 1 set incl. screws	€4.62
34726	stainless steel A4, 17 mm, 24 pc installation pack	€85.86
34726.1	stainless steel A4, 17 mm, 1 set incl. screws	€5.58
34756	stainless steel A4, 22 mm, 24 pc installation pack	€88.74
34756.1	stainless steel A4, 22 mm, 1 set incl. screws	€5.76
34786	stainless steel A4, 28 mm, 24 pc installation pack	€91.68
34786.1	stainless steel A4, 28 mm, 1 set incl. screws	€5.94

Product information "SIHGA® GleitFix® AE"

SIHGA GleitFix is a further development of the SIHGA DielenFix.
Now also for start and end boards

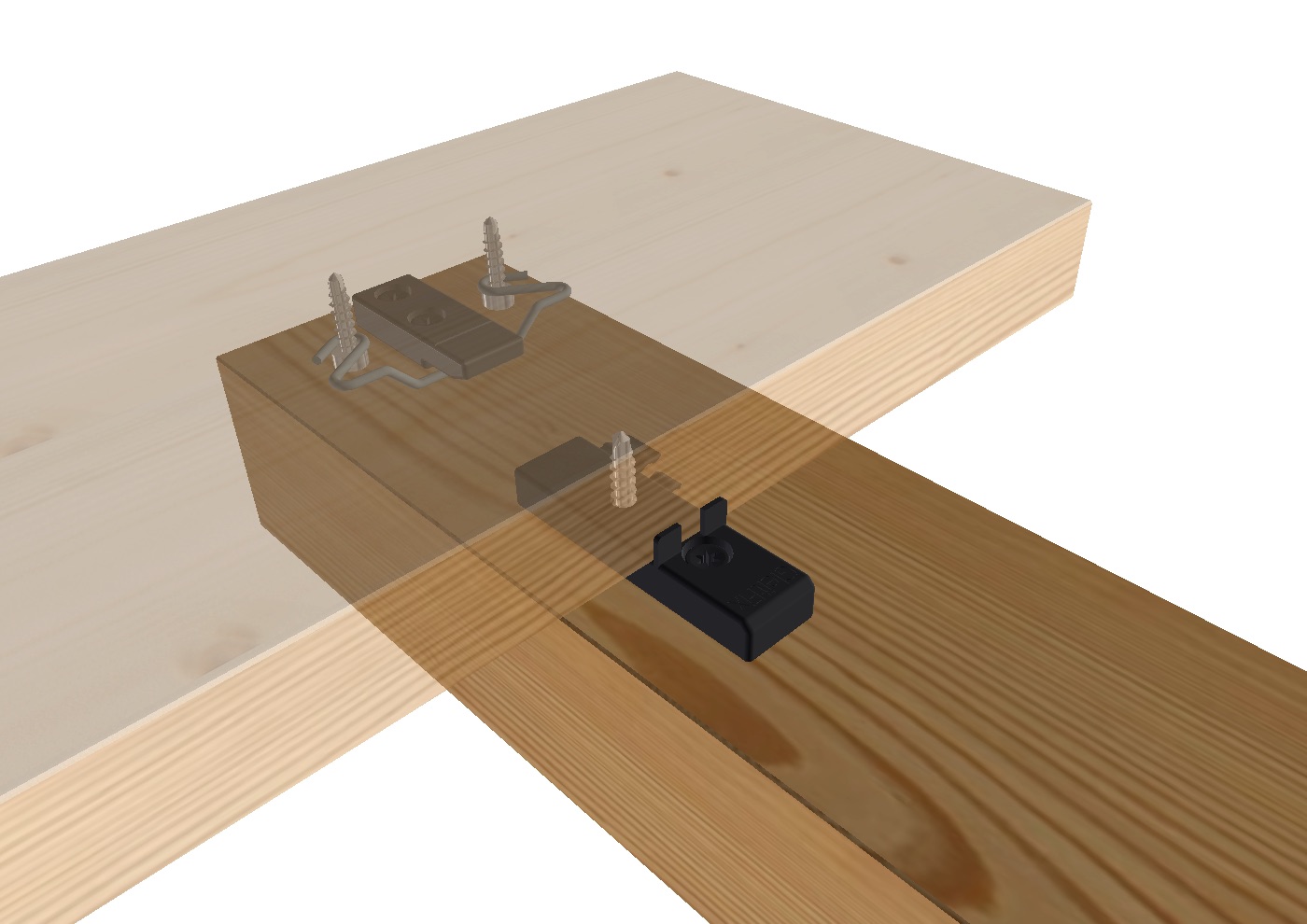

New are special fasteners for the start and end of a terrace. With GleitFix AE, Sihga has also succeeded in screwing these boards invisibly from below. In this case, a metal spring, which is screwed onto the underside of the board, is threaded into a glass-fiber-reinforced plastic plate which is fastened to the substructure. A special balancing system takes into account the swelling and shrinkage behavior of the wood. Now the edgeboards have the same look and longevity as the rest of the terrace.

The successor to the DielenFix is a one-part system, which is fastened to the underside of the floor with three screws. The clip connection between the two glass fiber reinforced plastic plates facilitates the alignment of the fastening. Compared to the DielenFix, the system saves a stainless steel drill screw per attachment. SIHGA GleitFix GF can be used for nearly all types of wood with a width between 90 and 150 mm.
Its height has been raised from 6 to 8 mm, which ensures perfect structural protection for the substructure and guarantees an optimal aerated terrace - a key criterion for the service life of terraces.

The use:

fastened planks not visible screwed; produced, developed and patented in Austria
gives elegant appearance and safety of the screw
suitable for almost all types of wood
reduces errors on site upon delivery of the material; thereby bringing time savings and reduced storage costs
Made of SIHGAMID®, the fiberglass-reinforced plastic from the Space Exploration
secured more durable than stainless steel, even when säurehältigen woods; is extremely strong, heat, frost and UV-resistant; no material fatigue
Floorboards remain intact at all visible surfaces
the woods are screwed from below, which gives longer shelf life and prevents putrefaction and the direct influence of weather
like swelling and shrinkage of the wood from operations
reduces the crack and fracture behavior of wood in these natural processes
Choice of three screw lengths
Possible use for all common hallway strengths 19-40 mm
variable visible joint 0-15 mm, for each suitable builders
Height, material thickness 8 mm for optimum aeration and ensures optimum constructive wood protection
at GleitFix® AE CS A4 screws are enclosed
time-saving, convenient, accurate and matching SIHGAFIX® prevents rust and rust and stainless steel A4 BohrFix® for saltwater and chlorine environment
Included SIHGAFIX® stainless, hardened stainless steel BohrFix® with drill bit and installation instructions
no rust, no tearing or rupture of the screws; time-saving, convenient, accurate, all accessories accompanies
SIHGA® TIP: MAGBIT® facilitates assembly

For optimum adaptation to the type of wood of the boards or on the weathering situation of DielenFix® is produced with different fastening screws:

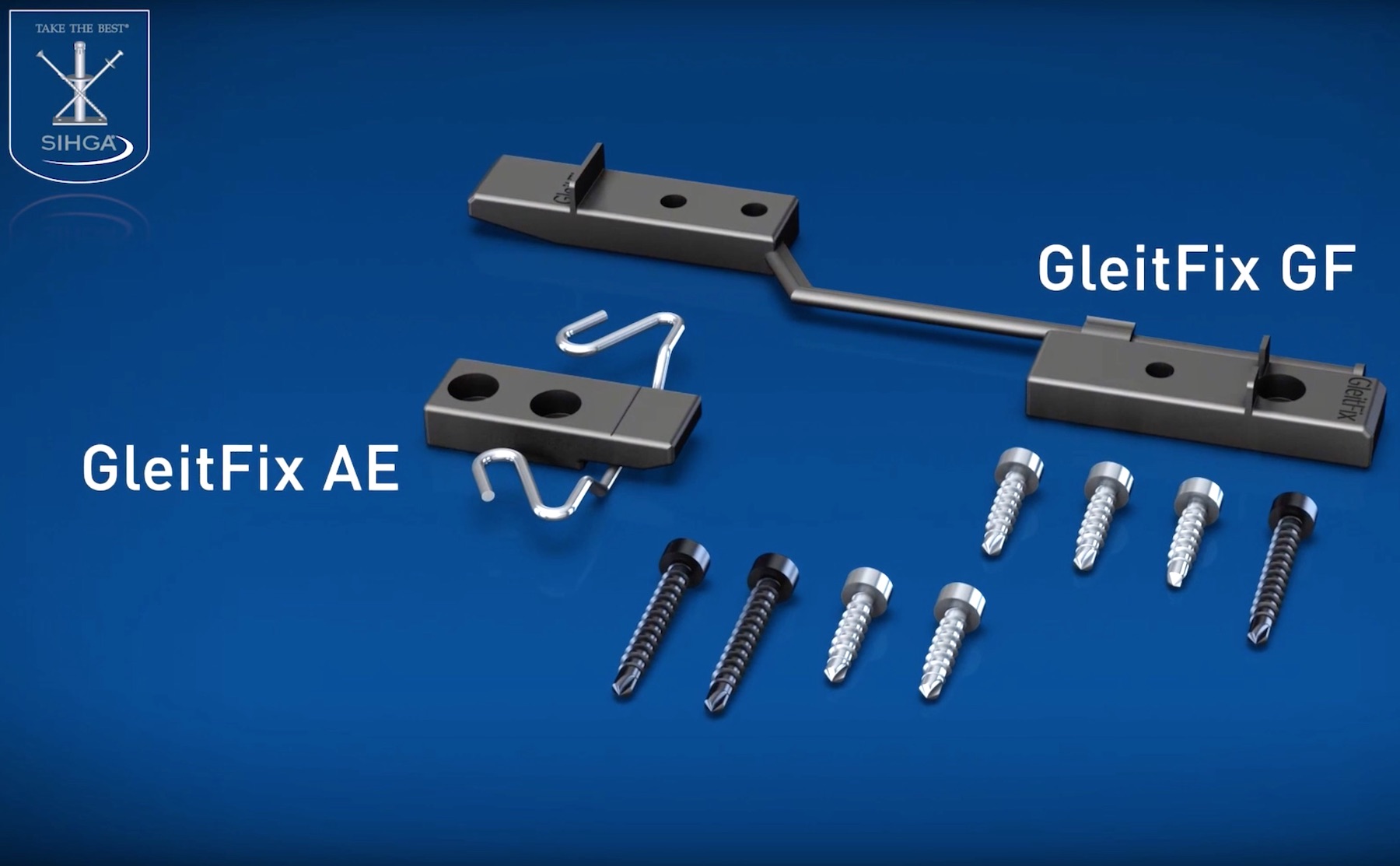

Type GleitFix® AE incl. BohrFix® stainless steel
Type GleitFix® AE CS incl. BohrFix® stainless steel A4

YouTube Video "SIHGA® GleitFix® AE"

Downloads "SIHGA® GleitFix® AE"

38518_Montageanleitung_GleitFix_GF_24_WEB.pdf

GleitFix AE_Sihga_Technical_Data_Sheet_EN.pdf
