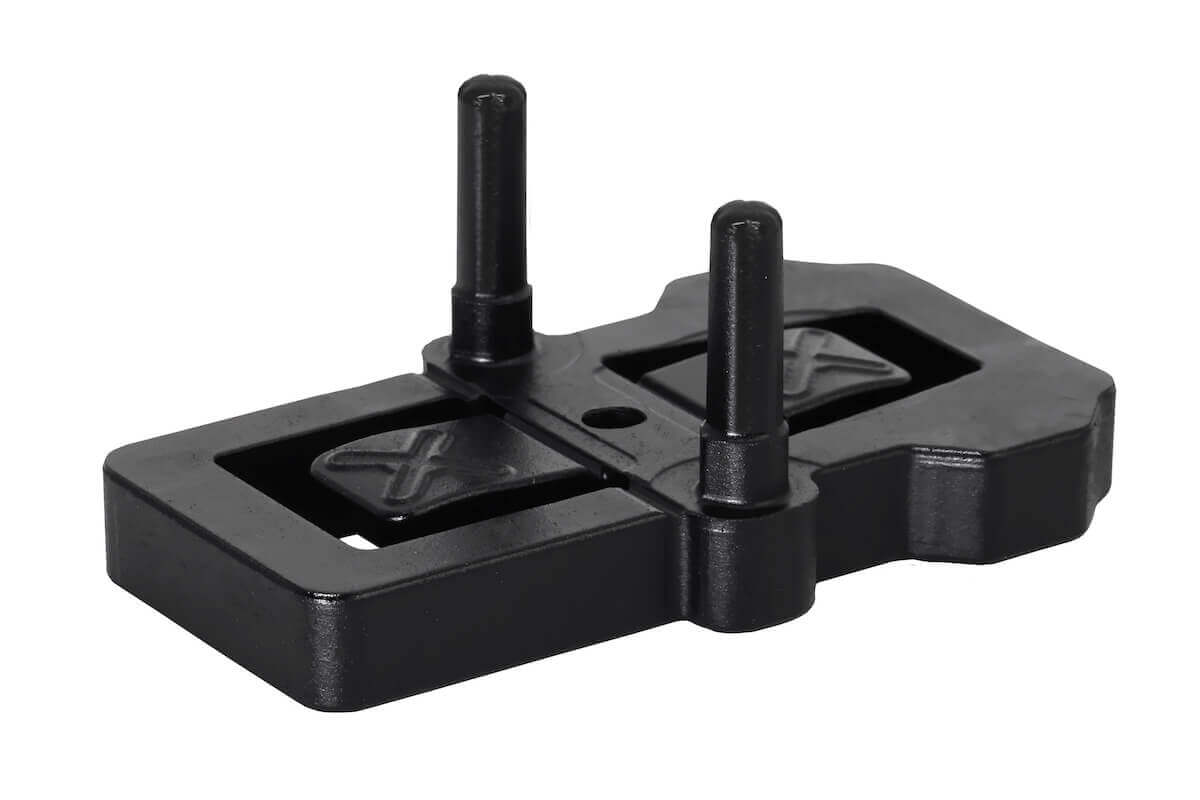

100 BASO SPACER

A simple spacing profile with a lot of know-how permits a ventilation gap eliminating the risk of waterlogging. Quickly mounted and fixable in order to achieve a long lasting and problem free result. Constructive wood protection was never so easy. Overview Fixing:spacer for visible screw connectionsLength:10 m RollWidth:10 mmHeight:7 mmMaterial:extruded plasticSpecial feature:sound dampening effect

It is essential for the durability of terraces is that the planks (decking) are infringed neither at the top nor at the lateral edges - exactly these important conditions are met the DielenFix®. His height of 6 mm ensures perfect constructive wood protection to the substructure and ensures optimally ventilating tete terrace - an essential criterion for the life of terraces. The enclosed SIHGA Bohrfix system screws for fastening to the substructure are specially manufactured without drilling for mounting on aluminum or wood and have a length of 29 mm. SIHGA DielenFix quantity calculation:To determine the amount required, we recommend the following auxiliary formula:Total linear meters of the substructure / plank width including gap x 2Using the example of a terrace with a 15 meter substructure, hallway width 144 mm, 6 mm groove:15 / 0.150 x 2 = 200 pieces    The use: fastened planks not visible screwed; produced, developed and patented in Austria gives elegant appearance and safety of the screw suitable for almost all types of wood reduces errors on site upon delivery of the material; thereby bringing time savings and reduced storage costs Made of SIHGAMID®, the fiberglass-reinforced plastic from the Space Exploration secured more durable than stainless steel, even when säurehältigen woods; is extremely strong, heat, frost and UV-resistant; no material fatigue Floorboards remain intact at all visible surfaces the woods are screwed from below, which gives longer shelf life and prevents putrefaction and the direct influence of weather like swelling and shrinkage of the wood from operations reduces the crack and fracture behavior of wood in these natural processes Choice of three screw lengths Possible use for all common hallway strengths 19-40 mm variable visible joint 0-15 mm, for each suitable builders Height, material thickness 6 mm for optimum aeration and ensures optimum constructive wood protection at DielenFix® II DF CS A4 screws are enclosed time-saving, convenient, accurate and matching SIHGAFIX® prevents rust and rust and stainless steel A4 BohrFix® for saltwater and chlorine environment Included SIHGAFIX® stainless, hardened stainless steel BohrFix® with drill bit and installation instructions no rust, no tearing or rupture of the screws; time-saving, convenient, accurate, all accessories accompanies SIHGA® TIP: MAGBIT® facilitates assembly For optimum adaptation to the type of wood of the boards or on the weathering situation of DielenFix® is produced in different materials or equipped with different fastening screws:Type DielenFix® II DF incl. BohrFix® stainless steelType DielenFix® II DF CS incl. BohrFix® stainless steel A4Type DielenFix® DF incl. BohrFix® stainless steel

The substantial increase longevity of wooden deckings. Even joints are to be made with the simplest TerrassenFix® II TF.Simultaneously, the 6 mm thick TerrassenFix® II TF ensures optimum constructive wood protection, that is, between decking and substructure is optimally ventilated and prevented waterlogging. Another important advantage is that the screws are not loaded for shearing but to bending through the use of TerrassenFix® II TF.The TerrassenFix® II TFS pin enables the quick adjustment of the joint width during assembly and is then completely removed again - very important so that the decking will not be blocked in their natural swelling and shrinking processes!The TerrassenFix® II TF does not have to be laboriously screwed on the substructure, but is merely placed. The special material increases walking comfort on the terrace!Total offers TerrassenFix® II TF tremendous relief and reduction of working time and a significant extension of the life of terraces.

Each PU contains the UNIA1 system screws 4.2 x 17 mm or 4.2 x 22 mm, 4.2 x 28 mm, 1 STK HELPO assembly aid and assembly instructions required for assembly.Regardless of the board geometry this is implemented quickly with the DILA decking connector. The height of the connector creates an optimal distance between the surface and substructure to prevent the formation of waterlogging.Fixing: concealed systemFixing type: sliding and fixed pointSpace distance: selectableDecking board: all soft and hardwoodsBoard length: all board lengthsBoard repl.: possible Material: A2 Stainless steel / black Special feature: system screws includedDILA2 quantity calculation:We recommend the following auxiliary formula to determine the required quantity:Total running meters of the substructure / board width including joint x 2Using the example of a terrace with 15 running meters of substructure, board width 144 mm, joint 6 mm:15: 0.150 x 2 = 200 piece

The concealed decking connector TENI guarantees a very simple, fast and safe installation for modified, dimensionally stable wood species and compound decking boards with lateral cove.
The fastening system is characterized by two independently functioning fix and gliding point receptacles. The flexible and permanently elastic sliding point is automatically brought into position by the angled screw connection in the substructure. Natural dimensional changes per plank are compensated for via the pretensioning force generated. Swelling processes are not passed on to the neighboring plank - each decking plank works for itself - no chain reaction in the area.
The rigid fixed point ensures optimal positioning of the plank and enables safe installation without additional aids such as clamping tools or plank clamps. The 8 mm thick decking connector ensures perfect rear ventilation and structural protection of the components.
A safety device integrated in the base plate prevents the planks from being pushed out sideways.
If necessary, the planks can be replaced quickly and easily thanks to an integrated fold-out mechanism. The decking connector can be modified for the start and end planks. There is no need for a separate connector. TENI decking connectors can be installed on a wood or wood-like substructure and on the RELO T aluminum system rail.OverviewFastening: ConcealedType of fastening: Sliding and fixed pointJoint spacing: 6.0 mmDecking board: For modified, dimensionally stable wood types and compound planks with lateral covePlank exchange: Possible due to fold-out mechanismMaterial: POM polyoxymethylene, UV and weather resistantSpecial feature: Modification to start, end connector

THE UNIVERSAL CONSTRUCTIVE WOOD PROTECTION The KompeFix® II KF creates distance between the timber and thus ensures good ventilation and long life of the woods.The KompeFix® II KF is simply placed and fixed in several places. If the KompeFix® II KF used in terraces, it supports the sealing of the screw for substructure and increases walking comfort on the terrace. For fast processing of KompeFix® II KF is made up respectively in 4.5 meter rolls.Due to its special shape, it compensates for the natural swelling and shrinking processes of timber and stabilized the structure - the screw heads always remain flush!

Even joints are to be made with the simplest TerrassenFix® II TF. Simultaneously, the 6 mm thick TerrassenFix® II TF ensures optimum constructive wood protection, that is, between decking and substructure is optimally ventilated and prevented waterlogging. Another important advantage is that the screws are not loaded for shearing but to bend through the use of TerrassenFix® II TF.The TerrassenFix® II pin TFS enables quick setup of the joint width during assembly and is then completely removed again - very important so that the decking will not be blocked in their natural swelling and shrinking operations!The TerrassenFix® II TF does not have to be laboriously screwed to the substructure, but is merely placed. The special material increases walking comfort on the terrace!Total offers TerrassenFix® II TF huge relief and reduction of working time and a significant extension of the life of terraces.

Developed for solid grip and precise positioning. Installation process with minimum effort and maximum resistance. Elegant appearance, integrated pre-drilling point, rapid penetration, flush head finish and versatile for outdoor purposes. Length: 25 - 120 mmDiameter: 3,2 - 6 mmHead: 3-Step-Head

The ELITA stainless steel screws are specifically designed to securely mount wood or wood-likeTerrace and facade boards in demanding exterior applications where visual quality is paramount.The geometry of the countersunk screw head has 3 steps which permit a perfect precise flush finish. ELITA can be additionally combined with PROFILA and SOLIDA screws due to the identical diameter of the screw heads allowing a uniform screw head arrangement.Length: 50 - 80 mmDiameter: 4.5 mm, 5.0 mmHead: 3-Step-HeadBit: TXMaterial: Hardened stainless steel

PROFILED SELF-TAPPING SCREW Designed to efficiently drill through metal. High breaking strength and the special geometry gives this screw the properties to achieve a perfect fit. Length: 35 - 70 mmDiameter: 5,5 mmHead: 3-Step-Head

SELF-TAPPING SCREW A4 Developed for solid grip and precise positioningInstallation process with minimum effort and maximum resistance. Elegant appearance, integrated pre-drilling point, rapid penetration, flush head finish and versatile for outdoor purposes.Length: 25 - 120 mmDiameter: 3,2 - 6 mmHead: 3-Step-Head

The simplest and fastest concealed fastening for laterally grooved decking boards.The PLATA decking connector guarantees easy and fast assembly for side grooved decking boards made of wood or wood-like materials.The two integrated spring elements in the groove engagement surface provide a perfect clamping effect during assembly and ensure a force-locked connection.Fixing: concealed system Fixing type: sliding point - sliding point Space distance: 6,0 mmDecking board: profiled with side groove Wood species: high dimensional stability boardsDimensions: L 65 mm | W 24 mmSpring element: with clamping effectBoard rep.: possible Material: stainless steel, black coatingSpecial feature: substructure is coveredIncluded in every package are the required UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm and instructions

Each PU contains the UNIA1 system screws 4.2 x 17 mm or 4.2 x 22 mm, 4.2 x 28 mm, 1 STK HELPO assembly aid and assembly instructions required for assembly.Regardless of the board geometry this is implemented quickly with the DILA decking connector. The height of the connector creates an optimal distance between the surface and substructure to prevent the formation of waterlogging.Fixing: concealed systemFixing type: sliding and fixed pointSpace distance: selectableDecking board: all soft and hardwoodsBoard length: all board lengthsBoard repl.: possible Material: A2 Stainless steel / black Special feature: system screws includedDILA2 quantity calculation:We recommend the following auxiliary formula to determine the required quantity:Total running meters of the substructure / board width including joint x 2Using the example of a terrace with 15 running meters of substructure, board width 144 mm, joint 6 mm:15: 0.150 x 2 = 200 piece

The concealed decking connector TENI guarantees a very simple, fast and safe installation for modified, dimensionally stable wood species and compound decking boards with lateral cove.
The fastening system is characterized by two independently functioning fix and gliding point receptacles. The flexible and permanently elastic sliding point is automatically brought into position by the angled screw connection in the substructure. Natural dimensional changes per plank are compensated for via the pretensioning force generated. Swelling processes are not passed on to the neighboring plank - each decking plank works for itself - no chain reaction in the area.
The rigid fixed point ensures optimal positioning of the plank and enables safe installation without additional aids such as clamping tools or plank clamps. The 8 mm thick decking connector ensures perfect rear ventilation and structural protection of the components.
A safety device integrated in the base plate prevents the planks from being pushed out sideways.
If necessary, the planks can be replaced quickly and easily thanks to an integrated fold-out mechanism. The decking connector can be modified for the start and end planks. There is no need for a separate connector. TENI decking connectors can be installed on a wood or wood-like substructure and on the RELO T aluminum system rail.OverviewFastening: ConcealedType of fastening: Sliding and fixed pointJoint spacing: 6.0 mmDecking board: For modified, dimensionally stable wood types and compound planks with lateral covePlank exchange: Possible due to fold-out mechanismMaterial: POM polyoxymethylene, UV and weather resistantSpecial feature: Modification to start, end connector

THE UNIVERSAL CONSTRUCTIVE WOOD PROTECTION The KompeFix® II KF creates distance between the timber and thus ensures good ventilation and long life of the woods.The KompeFix® II KF is simply placed and fixed in several places. If the KompeFix® II KF used in terraces, it supports the sealing of the screw for substructure and increases walking comfort on the terrace. For fast processing of KompeFix® II KF is made up respectively in 4.5 meter rolls.Due to its special shape, it compensates for the natural swelling and shrinking processes of timber and stabilized the structure - the screw heads always remain flush!

Even joints are to be made with the simplest TerrassenFix® II TF. Simultaneously, the 6 mm thick TerrassenFix® II TF ensures optimum constructive wood protection, that is, between decking and substructure is optimally ventilated and prevented waterlogging. Another important advantage is that the screws are not loaded for shearing but to bend through the use of TerrassenFix® II TF.The TerrassenFix® II pin TFS enables quick setup of the joint width during assembly and is then completely removed again - very important so that the decking will not be blocked in their natural swelling and shrinking operations!The TerrassenFix® II TF does not have to be laboriously screwed to the substructure, but is merely placed. The special material increases walking comfort on the terrace!Total offers TerrassenFix® II TF huge relief and reduction of working time and a significant extension of the life of terraces.

A simple spacing profile with a lot of know-how permits a ventilation gap eliminating the risk of waterlogging. Quickly mounted and fixable in order to achieve a long lasting and problem free result. Constructive wood protection was never so easy. Overview Fixing:spacer for visible screw connectionsLength:10 m RollWidth:10 mmHeight:7 mmMaterial:extruded plasticSpecial feature:sound dampening effect

It is essential for the durability of terraces is that the planks (decking) are infringed neither at the top nor at the lateral edges - exactly these important conditions are met the DielenFix®. His height of 6 mm ensures perfect constructive wood protection to the substructure and ensures optimally ventilating tete terrace - an essential criterion for the life of terraces. The enclosed SIHGA Bohrfix system screws for fastening to the substructure are specially manufactured without drilling for mounting on aluminum or wood and have a length of 29 mm. SIHGA DielenFix quantity calculation:To determine the amount required, we recommend the following auxiliary formula:Total linear meters of the substructure / plank width including gap x 2Using the example of a terrace with a 15 meter substructure, hallway width 144 mm, 6 mm groove:15 / 0.150 x 2 = 200 pieces    The use: fastened planks not visible screwed; produced, developed and patented in Austria gives elegant appearance and safety of the screw suitable for almost all types of wood reduces errors on site upon delivery of the material; thereby bringing time savings and reduced storage costs Made of SIHGAMID®, the fiberglass-reinforced plastic from the Space Exploration secured more durable than stainless steel, even when säurehältigen woods; is extremely strong, heat, frost and UV-resistant; no material fatigue Floorboards remain intact at all visible surfaces the woods are screwed from below, which gives longer shelf life and prevents putrefaction and the direct influence of weather like swelling and shrinkage of the wood from operations reduces the crack and fracture behavior of wood in these natural processes Choice of three screw lengths Possible use for all common hallway strengths 19-40 mm variable visible joint 0-15 mm, for each suitable builders Height, material thickness 6 mm for optimum aeration and ensures optimum constructive wood protection at DielenFix® II DF CS A4 screws are enclosed time-saving, convenient, accurate and matching SIHGAFIX® prevents rust and rust and stainless steel A4 BohrFix® for saltwater and chlorine environment Included SIHGAFIX® stainless, hardened stainless steel BohrFix® with drill bit and installation instructions no rust, no tearing or rupture of the screws; time-saving, convenient, accurate, all accessories accompanies SIHGA® TIP: MAGBIT® facilitates assembly For optimum adaptation to the type of wood of the boards or on the weathering situation of DielenFix® is produced in different materials or equipped with different fastening screws:Type DielenFix® II DF incl. BohrFix® stainless steelType DielenFix® II DF CS incl. BohrFix® stainless steel A4Type DielenFix® DF incl. BohrFix® stainless steel

The substantial increase longevity of wooden deckings. Even joints are to be made with the simplest TerrassenFix® II TF.Simultaneously, the 6 mm thick TerrassenFix® II TF ensures optimum constructive wood protection, that is, between decking and substructure is optimally ventilated and prevented waterlogging. Another important advantage is that the screws are not loaded for shearing but to bending through the use of TerrassenFix® II TF.The TerrassenFix® II TFS pin enables the quick adjustment of the joint width during assembly and is then completely removed again - very important so that the decking will not be blocked in their natural swelling and shrinking processes!The TerrassenFix® II TF does not have to be laboriously screwed on the substructure, but is merely placed. The special material increases walking comfort on the terrace!Total offers TerrassenFix® II TF tremendous relief and reduction of working time and a significant extension of the life of terraces.
