The UNIA system screw is used to fasten metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3 mm.The tip, which is designed as a drilling unit, ensures a reduced splitting effect and less surface tension. Length: 17 - 47 mmDiameter: 4.2 mm and 4.8 mm Head: cylinder head Ø 5.8 mm Drill point: suitable for wood and aluminiumDrilling capacity: Aluminium with approx. 3 mm wall thickness Drive: TX 20Material: hardened stainless steel / stainless steel A4 1.4401with black surface coating DESCRIPTIONUNIA is a stainless steel self-drilling screw with a cylindrical head shape for fastening metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3.0 mm.The drill tip, which is designed as a drilling unit, ensures a reduced splitting effect and reduces surface tensions e.g. with screw connections on the back in element construction.APPLICATIONFor fastening concealed fastening systems such as TIGA, DILA, SUPRO, PLATA, LIGO and ZONA.The suitability and compatibility of the UNIA system screws with the component to be connected and their substructure may have to be determined by the plank or facade strip manufacturer / supplier.MATERIAL1.4006 / X12Cr13 / AISI 410 hardened stainless steelOptionally with black surface coating [black zinc plated]

Each PU contains the UNIA1 system screws 4.2 x 17 mm or 4.2 x 22 mm, 4.2 x 28 mm, 1 STK HELPO assembly aid and assembly instructions required for assembly.Regardless of the board geometry this is implemented quickly with the DILA decking connector. The height of the connector creates an optimal distance between the surface and substructure to prevent the formation of waterlogging.Fixing: concealed systemFixing type: sliding and fixed pointSpace distance: selectableDecking board: all soft and hardwoodsBoard length: all board lengthsBoard repl.: possible Material: A2 Stainless steel / black Special feature: system screws includedDILA2 quantity calculation:We recommend the following auxiliary formula to determine the required quantity:Total running meters of the substructure / board width including joint x 2Using the example of a terrace with 15 running meters of substructure, board width 144 mm, joint 6 mm:15: 0.150 x 2 = 200 piece

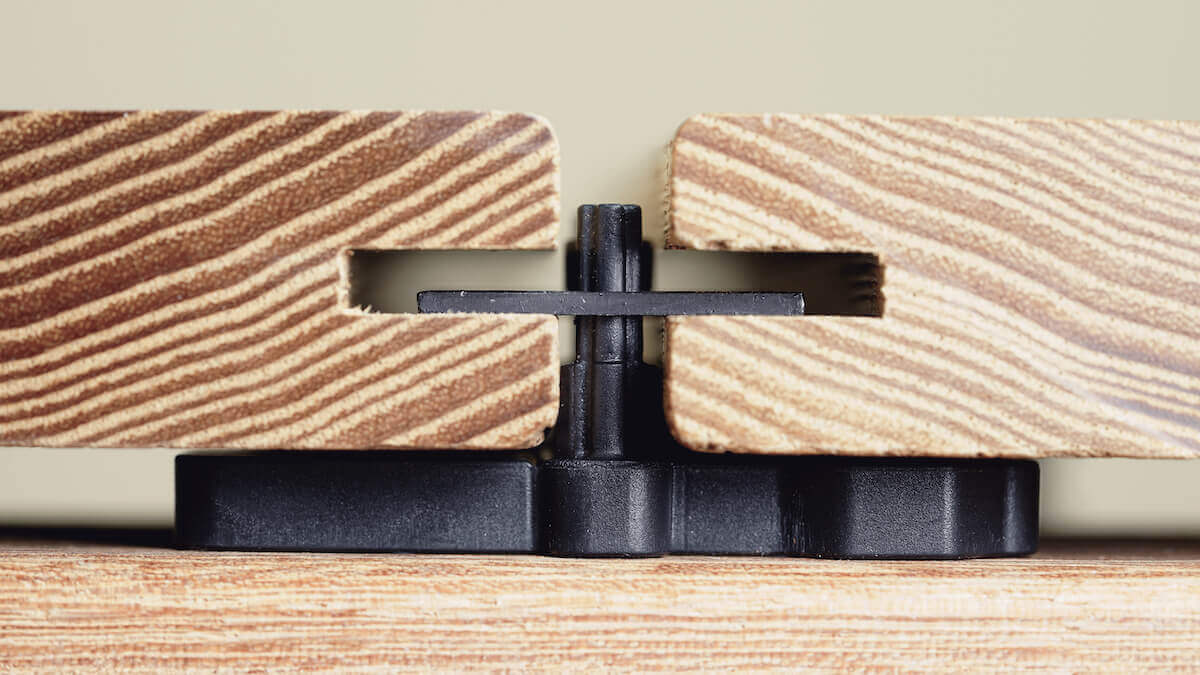

The simplest fastening with integrated constructive wood protection for laterally grooved decking boards.The decking connector LIGO guarantees easy and fast assembly for side grooved decking boards made of wood or wood-like materials.The spacer ensures optimum ventilation and prevents the formation of waterlogging between the decking and the substructure. The integrated spring elements contribute to a secure connection, prevent noise generation and increase walking comfort.Fixing: concealed system Fixing type: sliding point - sliding point Space distance: 6,0 mm Decking board: profiled with side groove Wood species: high dimensional stability boardsDim. LIGO N: L 32 mm | W 24 mmMaterial: stainless steel, black coating Mat. spacer: PA Glass fiber reinforcedBoard repl.: possible Special feature: mod.to the starter and end clip       Included in every package are the required UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm and instructions

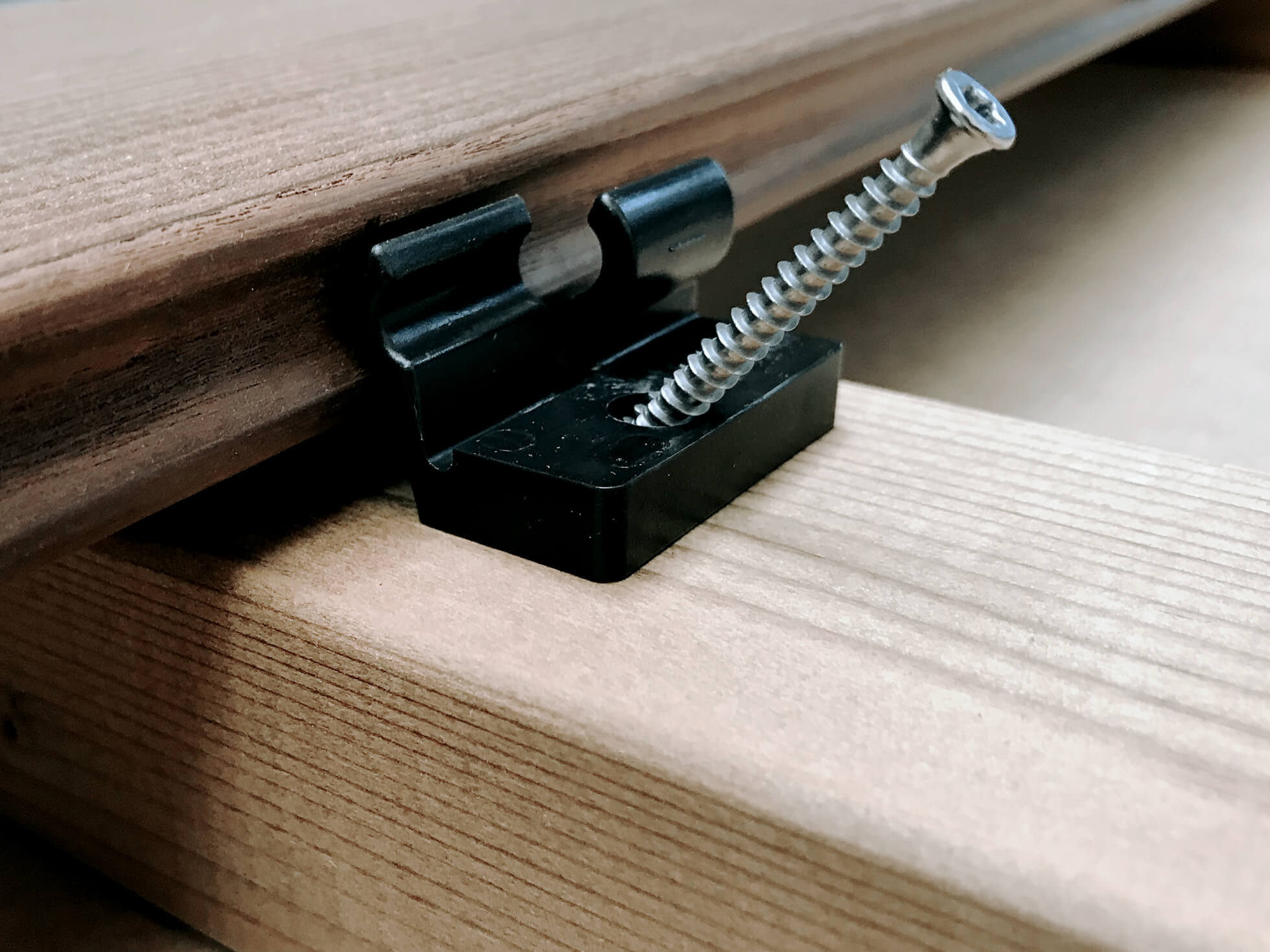

The concealed decking connector TENI guarantees a very simple, fast and safe installation for modified, dimensionally stable wood species and compound decking boards with lateral cove.
The fastening system is characterized by two independently functioning fix and gliding point receptacles. The flexible and permanently elastic sliding point is automatically brought into position by the angled screw connection in the substructure. Natural dimensional changes per plank are compensated for via the pretensioning force generated. Swelling processes are not passed on to the neighboring plank - each decking plank works for itself - no chain reaction in the area.
The rigid fixed point ensures optimal positioning of the plank and enables safe installation without additional aids such as clamping tools or plank clamps. The 8 mm thick decking connector ensures perfect rear ventilation and structural protection of the components.
A safety device integrated in the base plate prevents the planks from being pushed out sideways.
If necessary, the planks can be replaced quickly and easily thanks to an integrated fold-out mechanism. The decking connector can be modified for the start and end planks. There is no need for a separate connector. TENI decking connectors can be installed on a wood or wood-like substructure and on the RELO T aluminum system rail.OverviewFastening: ConcealedType of fastening: Sliding and fixed pointJoint spacing: 6.0 mmDecking board: For modified, dimensionally stable wood types and compound planks with lateral covePlank exchange: Possible due to fold-out mechanismMaterial: POM polyoxymethylene, UV and weather resistantSpecial feature: Modification to start, end connector

BASO is a spacer for ventilation and prevents waterlogging between the decking and the substructure. The integrated glass fiber reinforced spring elements contribute to a secure connection, prevent noise generation and increase walking comfort. Overview Dimensions:Length 80 mm | Width 25 mm | Height 6 mmJoint spacer 4 mmJoint spacer 7 mmMaterial:PP Polypropylene Recycled blackUV and weather resistantFastening type:Distance spacer for visible screw connections

The PLATA C decking connector guarantees very easy and quick assembly for modified wood species and compound decking boards with lateral groove. Two elastically designed spring elements adapt to the groove engagement height and ensure a perfect clamping effect during assembly. The clamping effect is designed for a groove height of 4.0 to 7.0 mm. The solidly designed screw zone ensures optimum force transmission into the groove receptacle of the planks. An extra-long screw guide guarantees comfortable screwing into the substructure and gives a uniform joint spacing of 6.0 mm. The substructure can be made of wood, wood-like materials or aluminum. OverviewFastening: ConcealedType of fastening: Sliding point - sliding pointJoint spacing: 6.0 mmDecking board: For modified, dimensionally stable wood species and compound planks with lateral grooveDimensions: L 40 mm | W 18 mmSpring element: Clamping effect for groove heights of 4 - 7 mmPlank exchange: PossibleMaterial: PP Polypropylene RecycledDrilling capacity UNIA: Aluminum with approx. 3 mm thicknessSpecial feature: Compatible with spacer Each VPE contains the UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm required for installation and installation instructions.

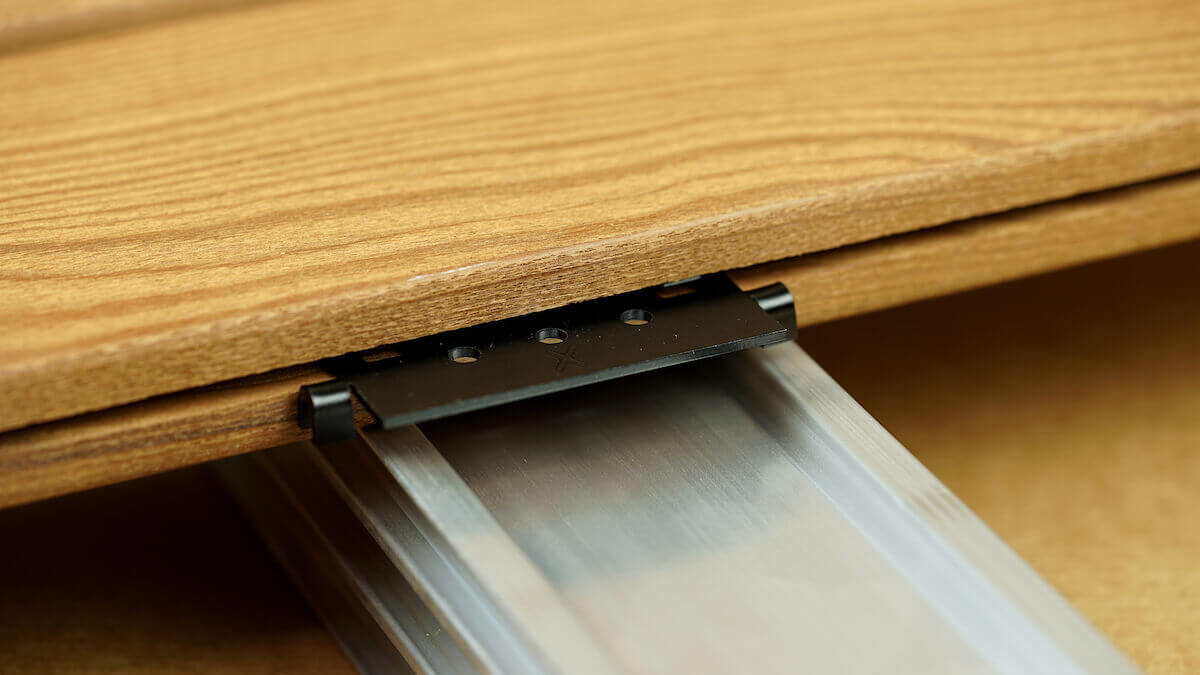

The simplest and fastest concealed fastening for laterally grooved decking boards.The PLATA decking connector guarantees easy and fast assembly for side grooved decking boards made of wood or wood-like materials.The two integrated spring elements in the groove engagement surface provide a perfect clamping effect during assembly and ensure a force-locked connection.Fixing: concealed system Fixing type: sliding point - sliding point Space distance: 6,0 mmDecking board: profiled with side groove Wood species: high dimensional stability boardsDimensions: L 65 mm | W 24 mmSpring element: with clamping effectBoard rep.: possible Material: stainless steel, black coatingSpecial feature: substructure is coveredIncluded in every package are the required UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm and instructions

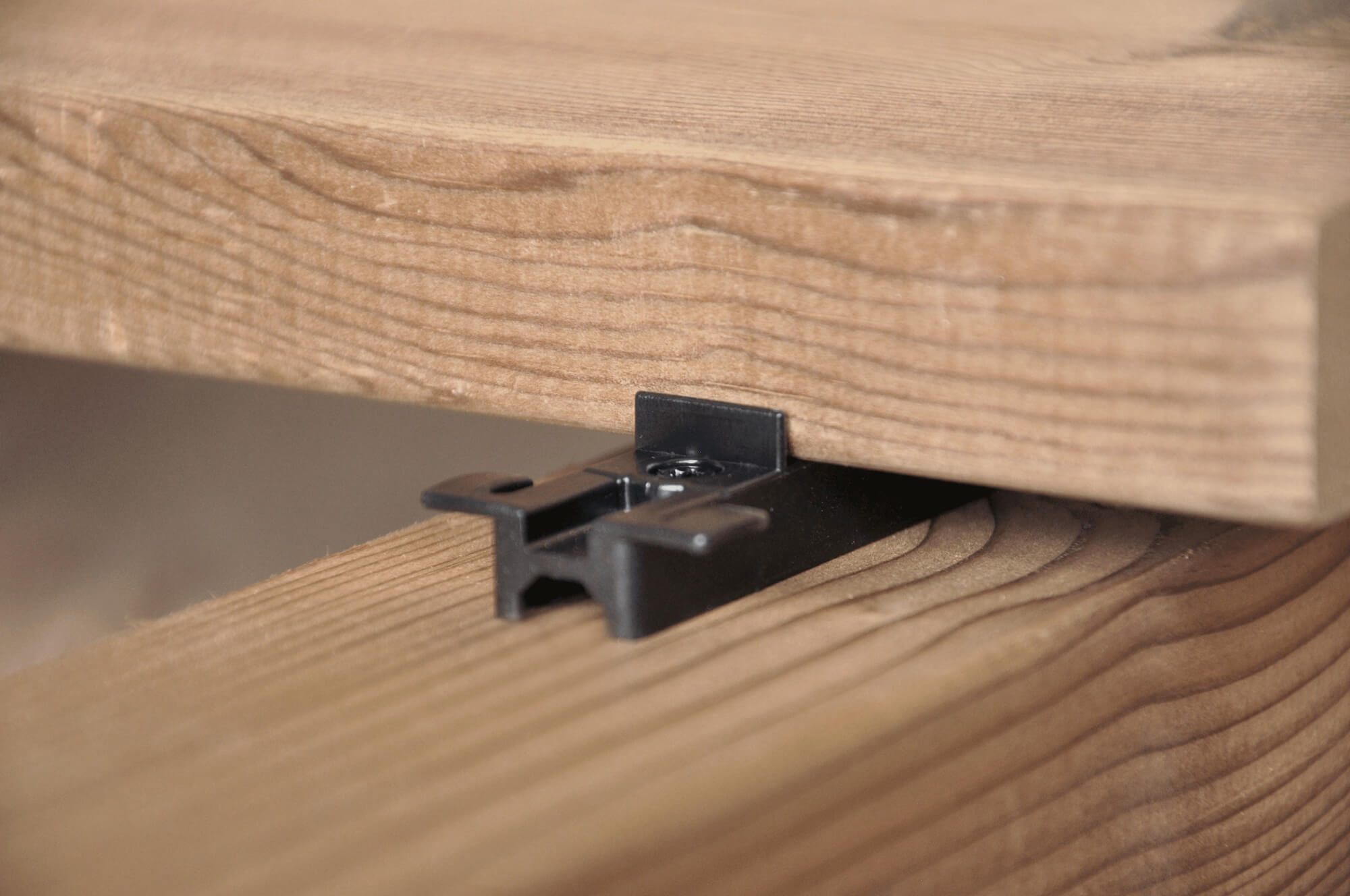

Regardless of the board geometry this is implemented quickly with the DILA C decking connector. The height of the connector creates an optimal distance between the surface and substructure to prevent the formation of waterlogging. Each package contains the UNIA1 system screws 4.2 x 22 mm and 4.2 x 33 mm required for installation. 1 piece HELPO mounting aid and assembly instructions. Fixing: concealed systemFixing type: sliding and fixed pointJoint distance: selectableDecking board: For domestic and modified wood species 19 - 32 mmBoard replacement: possible when boards joints are over 6,0 mmMaterial: PA6 30 GF black plasticTension arm: Flexible designUNIA drilling capacity: ca. 3 mm thick AluminiumSpecial feature: start and end clip modification

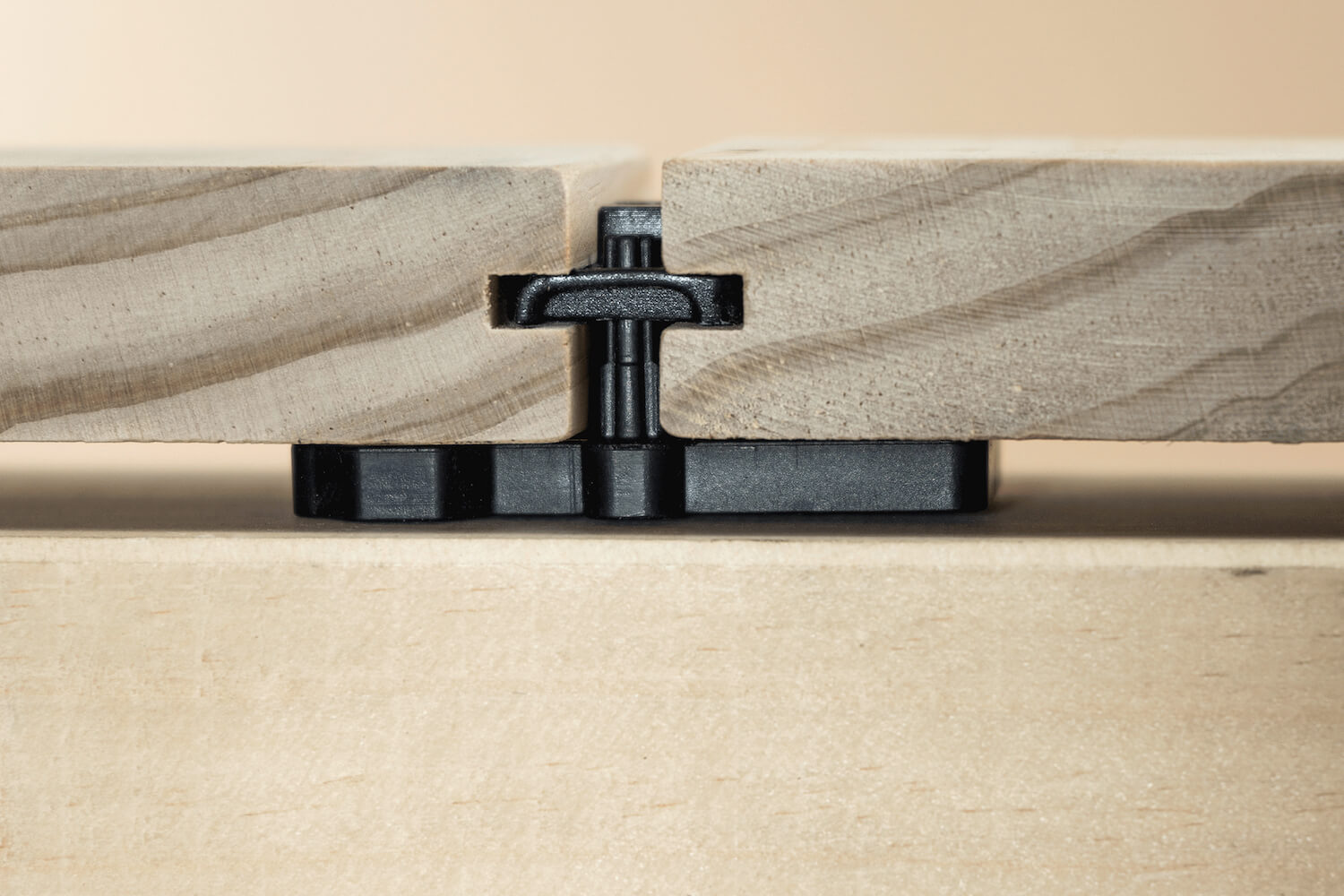

The LIGO C decking connector guarantees easy and quick installation for modified wood species and compound decking boards with lateral groove.The spacer ensures optimum ventilation and prevents the formation of waterlogging between the decking and the substructure.The spring elements integrated on the spacer contribute to a force-fit connection, prevent noise development and increase walking comfort. The solid screw zone ensures optimum force transmission into the groove receptacle of the planks. An extra-long screw guide ensures comfortable screwing into the substructure and gives a uniform joint spacing of 6.0 mm.The substructure for the LIGO C decking connector can be made of wood, wood-like materials or aluminum.  Fastening: ConcealedType of fastening: Sliding point - sliding pointJoint spacing: 6.0 mmDecking boards: For modified, dimensionally stable wood species and compound planks with lateral grooveDimensions groove plate: L 40 mm | W 18 mmMaterial groove plate: PP Polypropylene RecycledMaterial spacer: ABS plastic blackPlank exchange: PossibleDrilling capacity UNIA: Aluminum with approx. 3 mm thicknessSpecial feature: Modification to start, end connector In each VPE are the UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm required for assembly and assembly instructions
