LIGO N Decking Connector stainless steel black

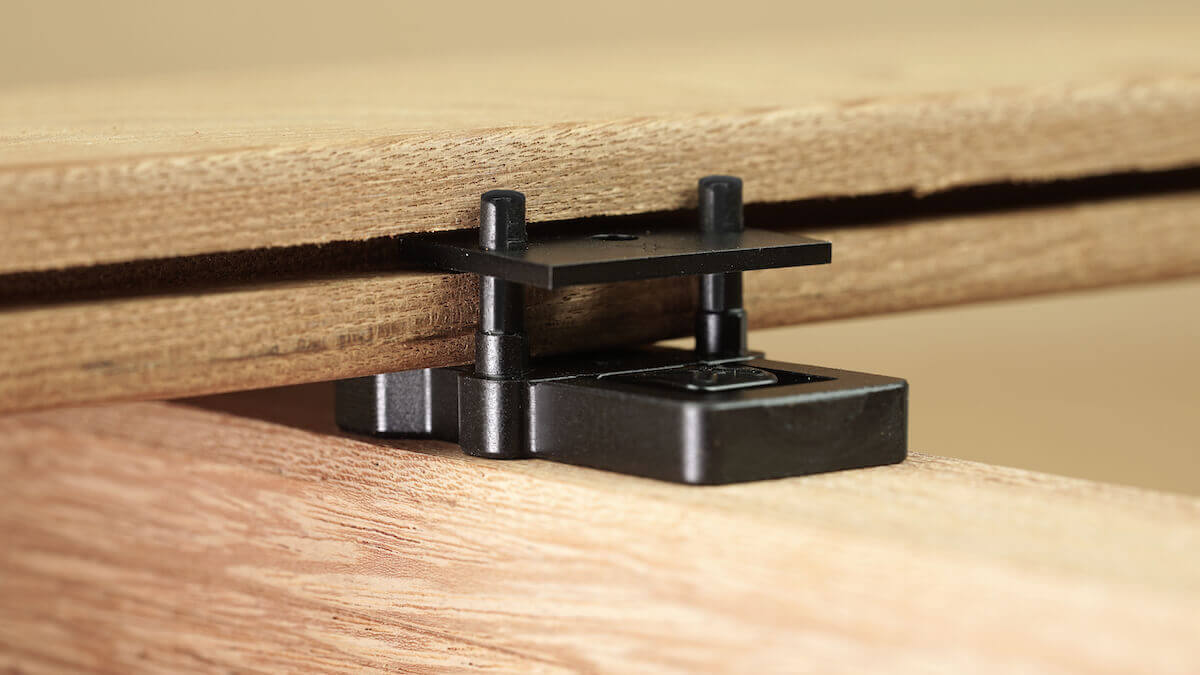

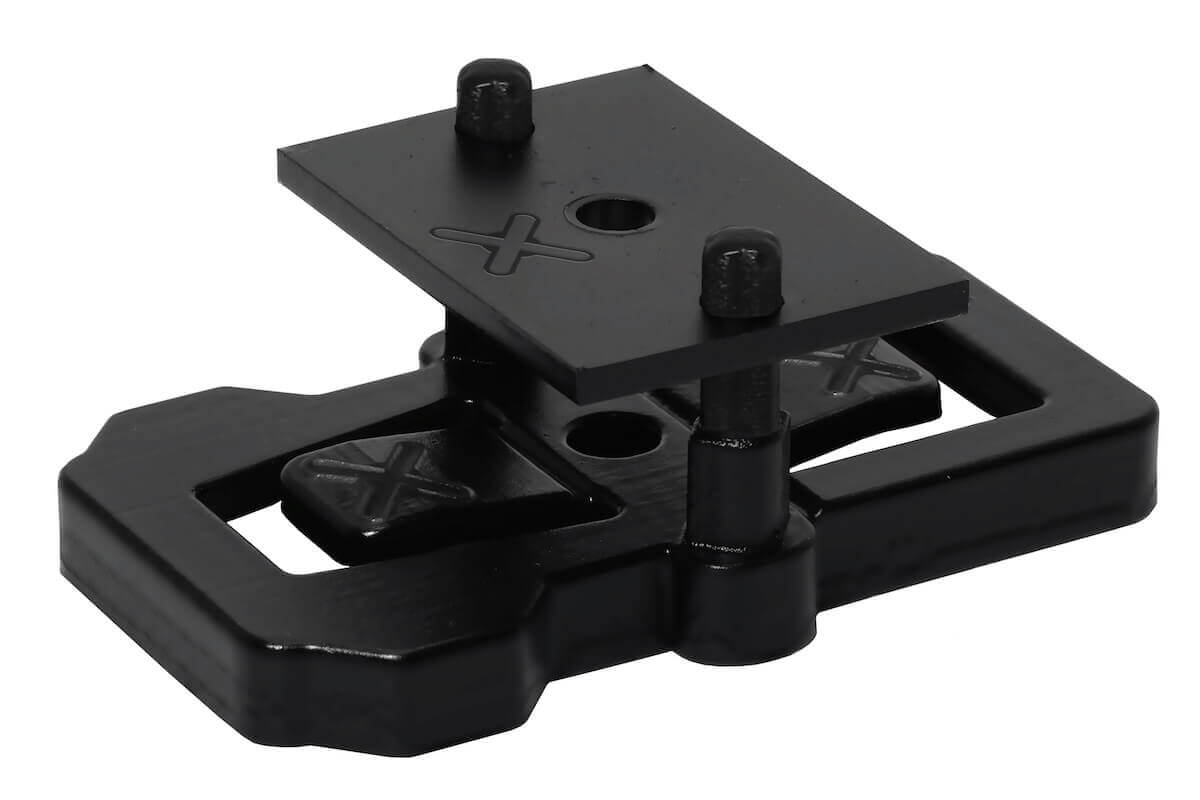

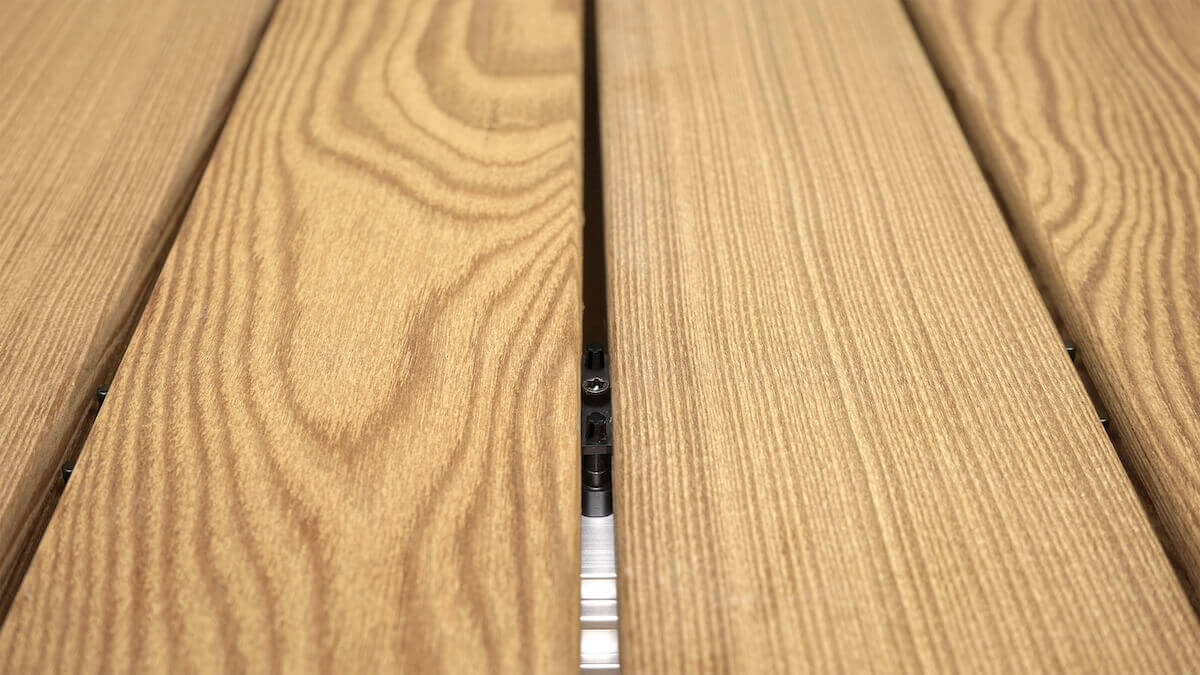

The T-Stick is suitable for fastening side-grooved decking made of low-movement wood types or WPC to substructures made of wood or aluminium. The T-Stick is inserted between two wooden boards and fastened in the board groove with a stainless steel clamping plate. The clamping plate is screwed to the substructure with a stainless steel screw between the joints. The spacer domes ensure an even joint spacing of 5 mm between the boards. The distance of approx. 9 mm between the boards and the substructure allows good ventilation and can significantly increase the service life of the entire decking. Advantages Indirect/ invisible fastening solution Readjustment and replacement of individual boards is possible at any time. Compatible with classic timber substructures as well as our modern aluminium system profile and the HKP decking support system Uniform plank spacing Supports constructive wood protection Weather-resistant Instructions for use The T-Stick may only be used for low-movement decking.
Low-movement decking includes the following types of wood, treatment methods and composite materials: Larch Douglas fir Wood-polymer composites (WPC) Thermowoods made from softwoods & hardwoods Acetylated wood The use of the T-Stick is not recommended for woods with high bulk density and/or high swelling and shrinkage and only moderate stability (dimensional stability). This applies in particular to the wood species cumarú, ipé, massaranduba and robinia (false acacia).When selecting wood, particular emphasis should also be placed on good cut sorting (e.g. sorting out boards with interlocking growth and so-called "flader boards") as well as good conditioning (setting the equalising moisture content) of the decking boards.The suitability of the type of wood must be determined by the manufacturer/wood supplier if necessary.The T-Stick is suitable for boards with the following groove geometry: → Groove depth: ≥9.0mm→ Groove width: ≥3.0mm→ Groove cheek thickness: for timber or WCP substructures: ≥6.0 mmfor aluminium system profile and HKP decking support system: ≥10.0 mm

The LIGO C decking connector guarantees easy and quick installation for modified wood species and compound decking boards with lateral groove.The spacer ensures optimum ventilation and prevents the formation of waterlogging between the decking and the substructure.The spring elements integrated on the spacer contribute to a force-fit connection, prevent noise development and increase walking comfort. The solid screw zone ensures optimum force transmission into the groove receptacle of the planks. An extra-long screw guide ensures comfortable screwing into the substructure and gives a uniform joint spacing of 6.0 mm.The substructure for the LIGO C decking connector can be made of wood, wood-like materials or aluminum.  Fastening: ConcealedType of fastening: Sliding point - sliding pointJoint spacing: 6.0 mmDecking boards: For modified, dimensionally stable wood species and compound planks with lateral grooveDimensions groove plate: L 40 mm | W 18 mmMaterial groove plate: PP Polypropylene RecycledMaterial spacer: ABS plastic blackPlank exchange: PossibleDrilling capacity UNIA: Aluminum with approx. 3 mm thicknessSpecial feature: Modification to start, end connector In each VPE are the UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm required for assembly and assembly instructions

The concealed decking connector TENI guarantees a very simple, fast and safe installation for modified, dimensionally stable wood species and compound decking boards with lateral cove.
The fastening system is characterized by two independently functioning fix and gliding point receptacles. The flexible and permanently elastic sliding point is automatically brought into position by the angled screw connection in the substructure. Natural dimensional changes per plank are compensated for via the pretensioning force generated. Swelling processes are not passed on to the neighboring plank - each decking plank works for itself - no chain reaction in the area.
The rigid fixed point ensures optimal positioning of the plank and enables safe installation without additional aids such as clamping tools or plank clamps. The 8 mm thick decking connector ensures perfect rear ventilation and structural protection of the components.
A safety device integrated in the base plate prevents the planks from being pushed out sideways.
If necessary, the planks can be replaced quickly and easily thanks to an integrated fold-out mechanism. The decking connector can be modified for the start and end planks. There is no need for a separate connector. TENI decking connectors can be installed on a wood or wood-like substructure and on the RELO T aluminum system rail.OverviewFastening: ConcealedType of fastening: Sliding and fixed pointJoint spacing: 6.0 mmDecking board: For modified, dimensionally stable wood types and compound planks with lateral covePlank exchange: Possible due to fold-out mechanismMaterial: POM polyoxymethylene, UV and weather resistantSpecial feature: Modification to start, end connector

The simplest and fastest concealed fastening for laterally grooved decking boards.The PLATA decking connector guarantees easy and fast assembly for side grooved decking boards made of wood or wood-like materials.The two integrated spring elements in the groove engagement surface provide a perfect clamping effect during assembly and ensure a force-locked connection.Fixing: concealed system Fixing type: sliding point - sliding point Space distance: 6,0 mmDecking board: profiled with side groove Wood species: high dimensional stability boardsDimensions: L 65 mm | W 24 mmSpring element: with clamping effectBoard rep.: possible Material: stainless steel, black coatingSpecial feature: substructure is coveredIncluded in every package are the required UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm and instructions

The PLATA C decking connector guarantees very easy and quick assembly for modified wood species and compound decking boards with lateral groove. Two elastically designed spring elements adapt to the groove engagement height and ensure a perfect clamping effect during assembly. The clamping effect is designed for a groove height of 4.0 to 7.0 mm. The solidly designed screw zone ensures optimum force transmission into the groove receptacle of the planks. An extra-long screw guide guarantees comfortable screwing into the substructure and gives a uniform joint spacing of 6.0 mm. The substructure can be made of wood, wood-like materials or aluminum. OverviewFastening: ConcealedType of fastening: Sliding point - sliding pointJoint spacing: 6.0 mmDecking board: For modified, dimensionally stable wood species and compound planks with lateral grooveDimensions: L 40 mm | W 18 mmSpring element: Clamping effect for groove heights of 4 - 7 mmPlank exchange: PossibleMaterial: PP Polypropylene RecycledDrilling capacity UNIA: Aluminum with approx. 3 mm thicknessSpecial feature: Compatible with spacer Each VPE contains the UNIA1 system screws 4.8 x 34 mm or 4.8 x 47 mm required for installation and installation instructions.

The UNIA system screw is used to fasten metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3 mm.The tip, which is designed as a drilling unit, ensures a reduced splitting effect and less surface tension. Length: 17 - 47 mmDiameter: 4.2 mm and 4.8 mm Head: cylinder head Ø 5.8 mm Drill point: suitable for wood and aluminiumDrilling capacity: Aluminium with approx. 3 mm wall thickness Drive: TX 20Material: hardened stainless steel / stainless steel A4 1.4401with black surface coating DESCRIPTIONUNIA is a stainless steel self-drilling screw with a cylindrical head shape for fastening metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3.0 mm.The drill tip, which is designed as a drilling unit, ensures a reduced splitting effect and reduces surface tensions e.g. with screw connections on the back in element construction.APPLICATIONFor fastening concealed fastening systems such as TIGA, DILA, SUPRO, PLATA, LIGO and ZONA.The suitability and compatibility of the UNIA system screws with the component to be connected and their substructure may have to be determined by the plank or facade strip manufacturer / supplier.MATERIAL1.4006 / X12Cr13 / AISI 410 hardened stainless steelOptionally with black surface coating [black zinc plated]
