RELO C 56 x 27 x 2.000 mm

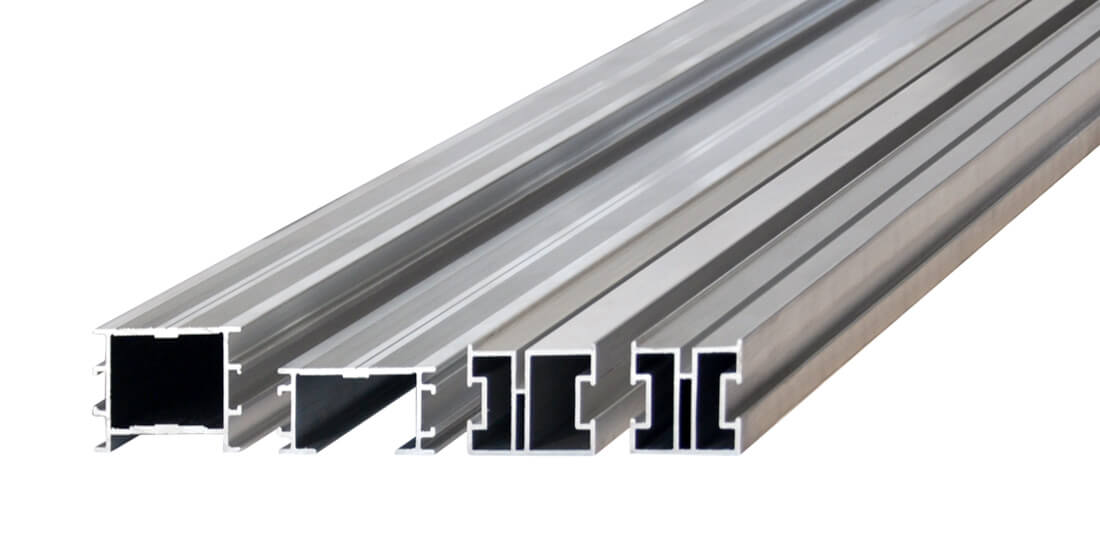

The RELO system accessories enable a simple and quick system construction of terrace substructures.RELO E corner composite angles are used for composite connections of terrace substructure rails, support connections for the ventilation profile and connection points for facing.RELO L longitudinal connectors are used for an endless and offset-free extension of the substructure rails. The longitudinal joints should be carried out directly at the point of support.The corner brackets and longitudinal connectors made of solid aluminum enable precise fitting thanks to automatic centering on the lateral guide slots of the substructure rails.RELO A adapter is used for the screwless positioning of the substructure rail on the LIFTO terrace foot and at the same time enables guidance for the longitudinal joint.RELO R railing is used for the parallel alignment of the substructures and results in an automatic center distance of 450 mm.The hard galvanized metal bars can be shortened if necessary.RELO A and R can be quickly and easily combined using a simple plug connection.

The RELO system accessories enable a simple and quick system construction of terrace substructures.RELO E corner composite angles are used for composite connections of terrace substructure rails, support connections for the ventilation profile and connection points for facing.RELO L longitudinal connectors are used for an endless and offset-free extension of the substructure rails. The longitudinal joints should be carried out directly at the point of support.The corner brackets and longitudinal connectors made of solid aluminum enable precise fitting thanks to automatic centering on the lateral guide slots of the substructure rails.RELO A adapter is used for the screwless positioning of the substructure rail on the LIFTO terrace foot and at the same time enables guidance for the longitudinal joint.RELO R railing is used for the parallel alignment of the substructures and results in an automatic center distance of 450 mm.The hard galvanized metal bars can be shortened if necessary.RELO A and R can be quickly and easily combined using a simple plug connection.

The RELO system accessories enable a simple and quick system construction of terrace substructures.RELO E corner composite angles are used for composite connections of terrace substructure rails, support connections for the ventilation profile and connection points for facing.RELO L longitudinal connectors are used for an endless and offset-free extension of the substructure rails. The longitudinal joints should be carried out directly at the point of support.The corner brackets and longitudinal connectors made of solid aluminum enable precise fitting thanks to automatic centering on the lateral guide slots of the substructure rails.RELO A adapter is used for the screwless positioning of the substructure rail on the LIFTO terrace foot and at the same time enables guidance for the longitudinal joint.RELO R railing is used for the parallel alignment of the substructures and results in an automatic center distance of 450 mm.The hard galvanized metal bars can be shortened if necessary.RELO A and R can be quickly and easily combined using a simple plug connection.

Extremely simple and accurateThe adjustable X-base plate pedestal is sturdy and secure once in position. The height adjustment can be can be extended by simply inserting adapters increasing the range permitting more flexibility during the installation process.Compensation: 35 - 55 mmAdapter 1: +20 mmAdapter 2: +40 mmAdapter: stackableSpecial feature: RELO-click-system compatibl

The adjustable X-base plate pedestal of the LIFTO K is sturdy and secure once in position. The height adjustment can be can be extended by simply inserting a adapter increasing the range permitting more flexibility during the installation process. Thanks to the adaptable components LIFTO K also permits the laying of patio tiles made of stone, concrete or ceramics. OverviewHeight range:50 - 80 mm  |  80 - 140 mm.  + AdapterAdapter KA60:+ 60 mm height adjustmentDimensions:LIFTO KU: Baseplate Ø 225 mm ǀ 90 mm support plate diameterLIFTO KS: Support plate Ø 120 mm ǀ Joint cross 3.2 mmMaterial:PP polypropylene Recycled black ǀ UV and weather resistantAccessories:UNIA 4.2 x 22 mm for fastening the pedestals to a wooden or aluminium substructureRELO A adapter for screwless fastening of the pedestals to RELO substructure joistsGUMO LGD/LGA pressure distribution pad for flat roof / LGA for aluminium foilLIFTO N automatic three-dimensional 4 % levelling / installation height + 15 mmLIFTO R regulating disc for stone slabs - thickness 1.2 or 2.0 mm
