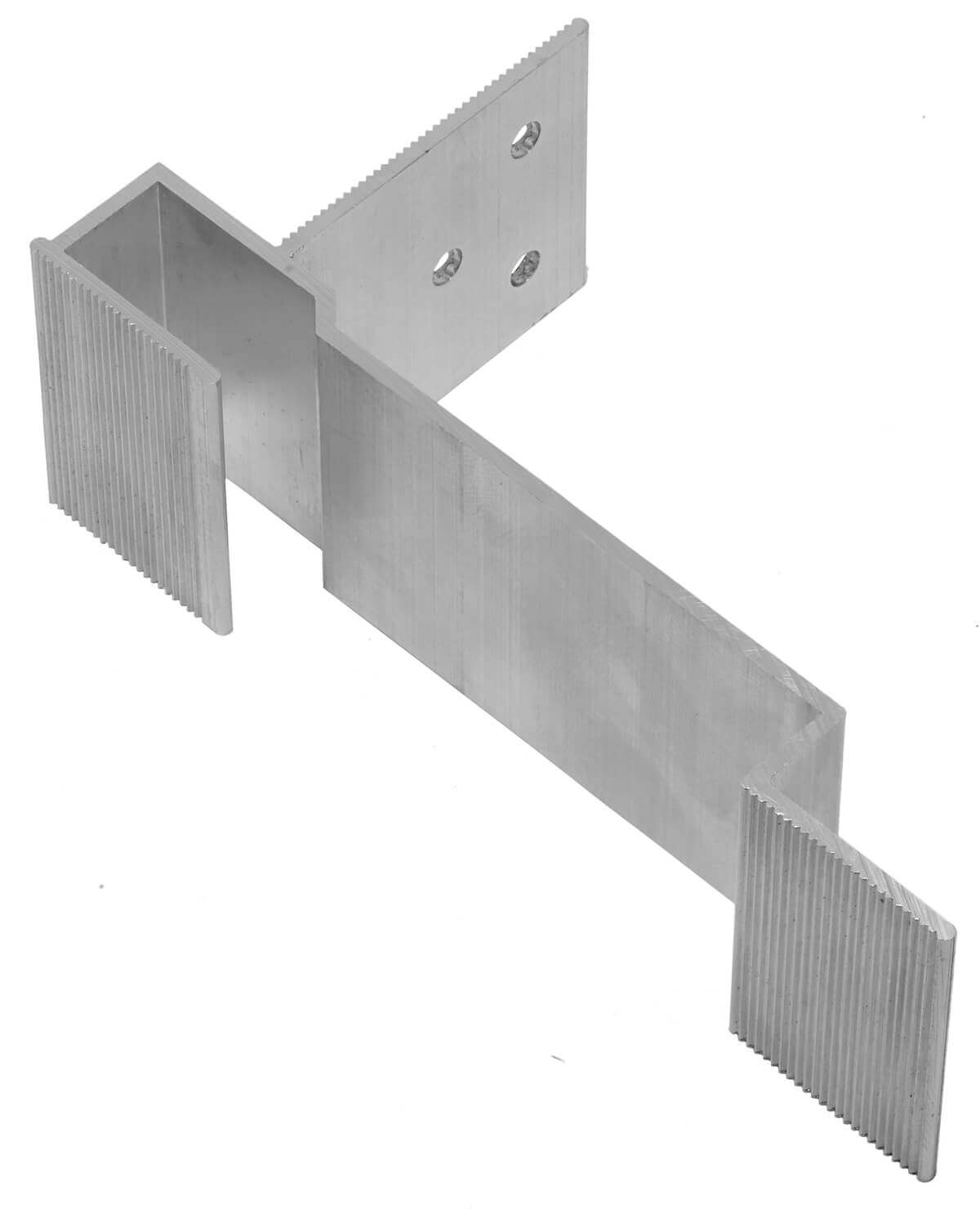

12 RELO VH ventilation profile holder

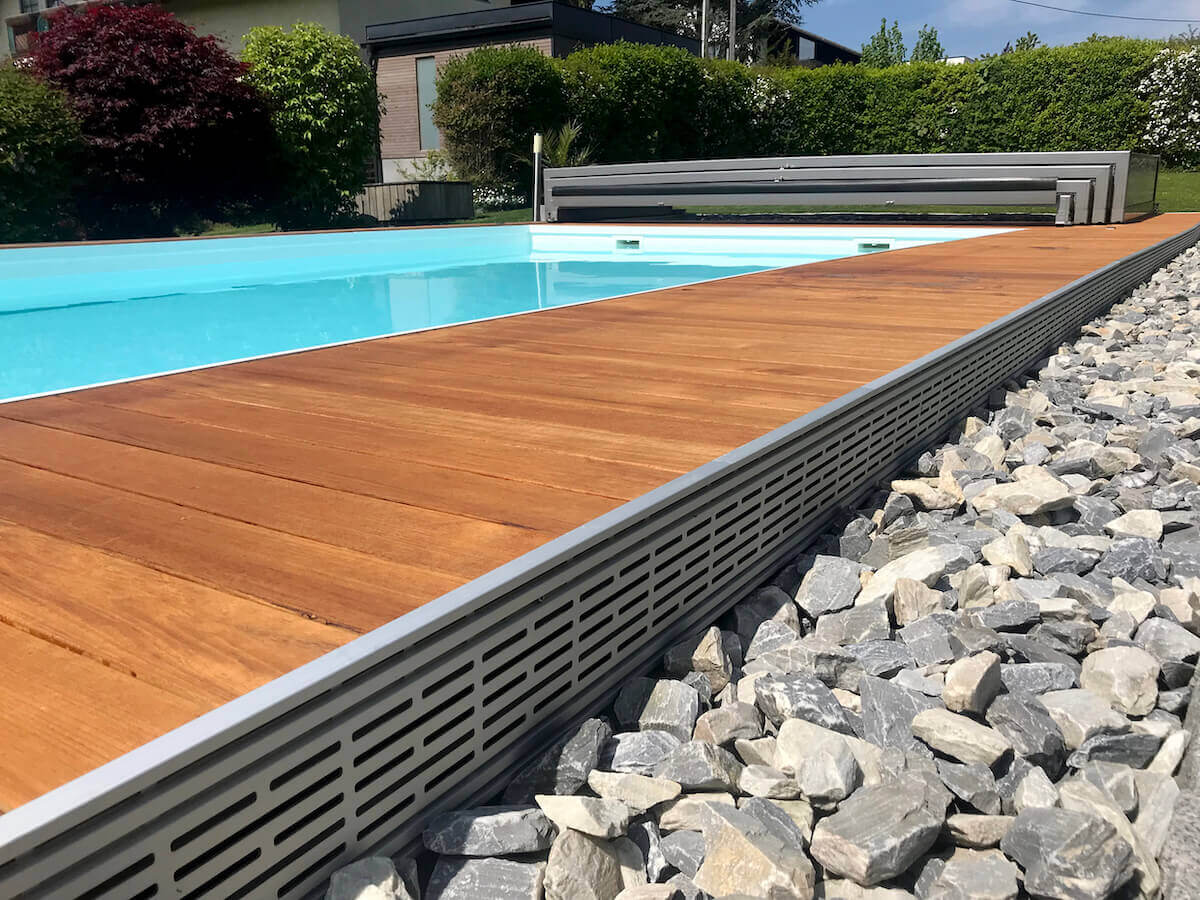

The end cover RELO VB ensures a beautiful front end.With the system accessories for RELO V, side panels become the visual highlight of your terrace.Each PU contains the UNIA1 system screws 4.2 x 22 mm required for assembly

The ventilation drainage grate RELO V is perfectly suited to any decking project. The aluminum profile with the high-quality anodized finish seamlessly integrates into any terrace, creating a harmonious transition to adjacent objects. With a width of 150 mm it complies with flat roof design guidelines and allows the necessary ventilation of the substructure and decking boards.Dirt and discoloration on vertical elements adjacent to the decking area i.e. facades, doors, patio doors/windows etc. from water spray is drastically minimized due to the incorporated drainage holes. Overview  RELO VRELO VA support profilesDimensions:1,200 x 150 x 20 mm 1,880 x 18 x 17 mmMaterial:Aluminium EN AW 6060Aluminium EN AW 6060Surface:Silver Anodized E6/EV1 ǀ RAL 7016Aluminium blank ǀ RAL 7016Accessories:RELO VA support profilesRELO VB end-cover E6/EV1RELO VH holder aluminium blankSystem screws UNIA 4.2 x 22 – 28 mmEPDM pads GUMO L 2 – 8 mm,depending on height adjustment
