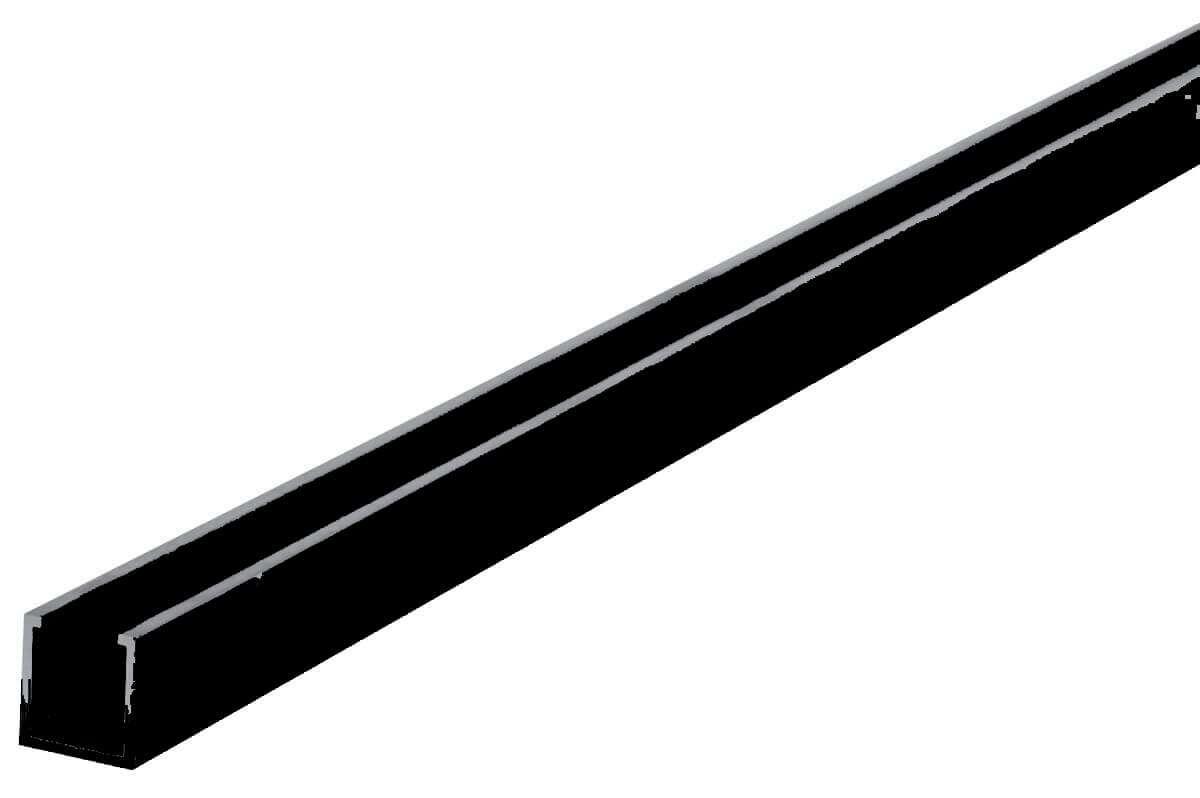

RELO VA support profile 1880 mm

The RELO VU Height Adjustment Set is designed to compensate for height differences of up to 18 mm between the RELO V-profile (20 mm high) and your decking boards. Installation is quick and easy thanks to the click system and stacking guide.Set contents:1x click adapter: base height 6 mm3x additional shims: in thicknesses of 2 mm, 4 mm, and 6 mmFastening screws for installation on the substructure are included in the scope of delivery.Possible total heights:By combining the individual parts, you can achieve different heights:Click adapter only: 6 mmClick adapter + 2 mm: 8 mmClick adapter + 4 mm: 10 mmClick adapter + 6 mm: 12 mmClick adapter + 2 mm + 4 mm: 12 mm... and other combinations up to a maximum of 18 mm Product features:Material: UV- and weather-resistant polypropylene (PP), recycled, blackDimensions: 15 x 150 mm (for all underlays)Fastening: Click and screw connectionCompatibility: Fits all common substructures. Installation advantages:Stack guidance: Easy and stable stacking of the underlayers.Automatic guidance: The RELO V-profile snaps securely into the click adapter. Quantity per profile:You need 2 to 3 underlayer sets per RELO V-profile, depending on the center distance of your substructure.

The UNIA system screw is used to fasten metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3 mm.The tip, which is designed as a drilling unit, ensures a reduced splitting effect and less surface tension. Length: 17 - 47 mmDiameter: 4.2 mm and 4.8 mm Head: cylinder head Ø 5.8 mm Drill point: suitable for wood and aluminiumDrilling capacity: Aluminium with approx. 3 mm wall thickness Drive: TX 20Material: hardened stainless steel / stainless steel A4 1.4401with black surface coating DESCRIPTIONUNIA is a stainless steel self-drilling screw with a cylindrical head shape for fastening metal or plastic parts to wood, wood-like materials and aluminum profiles up to a wall thickness of 3.0 mm.The drill tip, which is designed as a drilling unit, ensures a reduced splitting effect and reduces surface tensions e.g. with screw connections on the back in element construction.APPLICATIONFor fastening concealed fastening systems such as TIGA, DILA, SUPRO, PLATA, LIGO and ZONA.The suitability and compatibility of the UNIA system screws with the component to be connected and their substructure may have to be determined by the plank or facade strip manufacturer / supplier.MATERIAL1.4006 / X12Cr13 / AISI 410 hardened stainless steelOptionally with black surface coating [black zinc plated]

The ventilation drainage grate RELO V is perfectly suited to any decking project.  The aluminum profile with the high-quality anodized finish seamlessly integrates into any terrace, creating a harmonious transition to adjacent objects. With a width of 150 mm it complies with flat roof design guidelines and allows the necessary ventilation of the substructure and decking boards.Dirt and discoloration on vertical elements adjacent to the decking area i.e. facades, doors, patio doors/windows etc. from water spray is drastically minimized due to the incorporated drainage holes. Overview  RELO VRELO VA support profiles (accessoires)Dimensions:1,200 x 150 x 20 mm 1,880 x 18 x 17 mmMaterial:Aluminium EN AW 6060Aluminium EN AW 6060Surface:Silver Anodized E6/EV1 ǀ RAL 7016Aluminium blank ǀ RAL 7016Accessories:RELO VA support profilesRELO VB end-cover E6/EV1RELO VH holder aluminium blankRELO VU Height Adjustment SetSystem screws UNIA 4.2 x 22 – 28 mmEPDM pads GUMO L 2 – 8 mm,depending on height adjustment
